Epygi QX series User Manual

Hidden Pages for QX Advanced Configuration
3.12 Networkphycfg
The Network PHY Config page allows configuring speed and mode parameters for the LAN and
WAN interfaces.

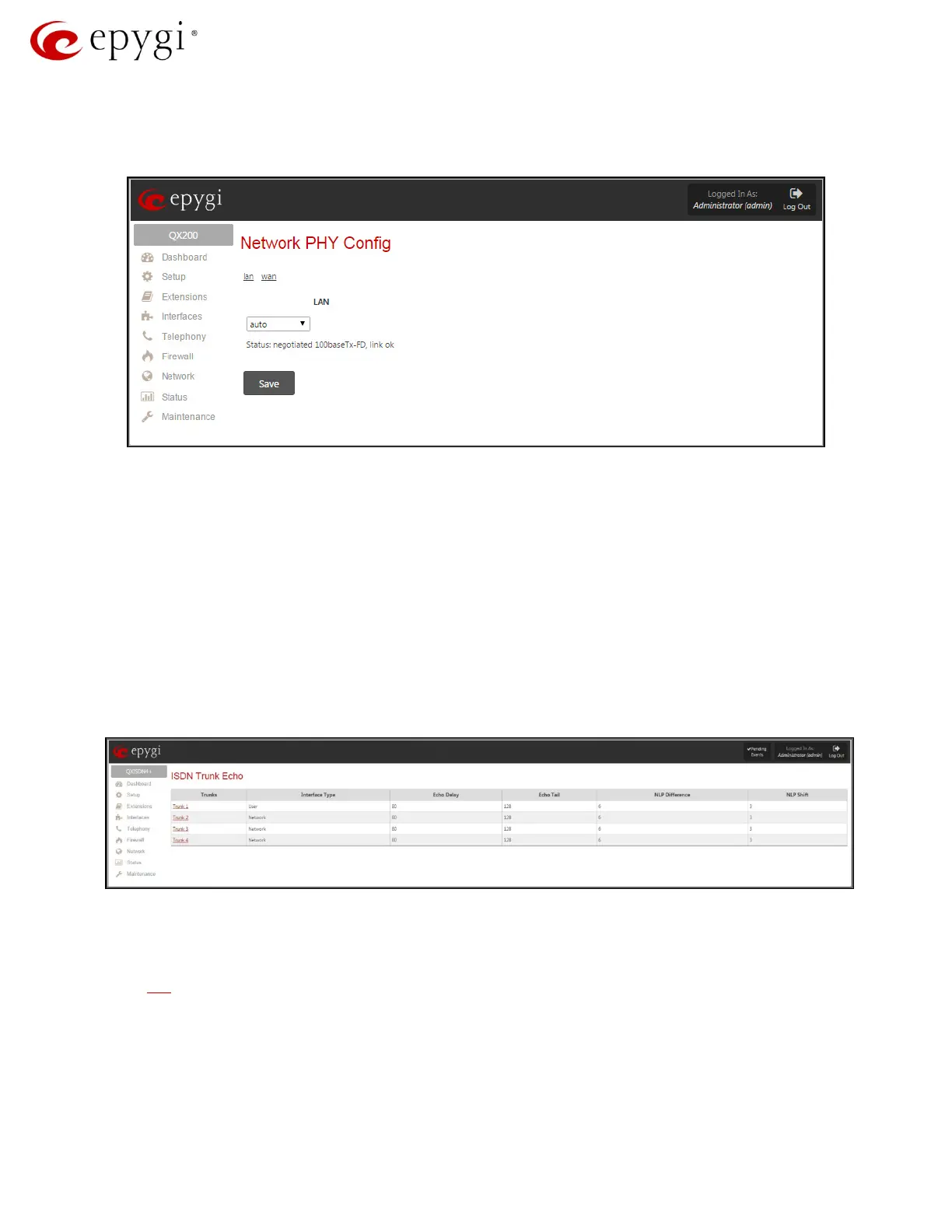

Figure 17: Network PHY Config page
The following options are available for configuration of the speed and mode parameters:
• 10BT-HD
• 10BT-FD
• 100BTX-HD
• 100BTX-FD
Please Note: By default these parameters are set in auto mode.
3.13 Trunkecho
The ISDN Trunk Echo page allows configuring echo settings of ISDN and E1/T1 trunks.
Figure 18: ISDN Trunk Echo page
• Echo Delay: Delay between the original voice and the corresponding echo signal. For the
meaning of the DSP Echo Tail, DSP Echo NLP Diff, and DSP Echo NLP Shift (see section
3.6).
• Advanced Echo Settings: Indicates whether the system should automatically switch off the
DSP echo canceller if no echo is detected on the call, i.e. if the call path does not contain any
echo source, such as FXO or FXS interfaces.
o If the Disable option is selected, the echo canceller will be on regardless of whether or not
echo occurs on the call.
o If the Enable option is selected, the system will automatically switch off the canceller if the
transmitted signal level is higher than the specified threshold (Transmit Energy) and the
Revision 1.0 21 20-Feb-15
