2.3 UNPACKING AND PLACEMENT
NOTE
When lifting the ESAB 350mpi, apply direct upward
pressure to both of the carrying handles. Do not
transport the ESAB 350mpi with only one handle or
apply outward pressure to the handles. See Figure 2-
1.
A. Immediately upon receipt of the ESAB 350mpi,
inspect for damage which may have occurred
in transit. Notify the carrier of any defects or
damage at once.
B. After removing the components from the ship-
ping container(s), check the container for any
loose parts. Remove all packing materials.
C. Check air passages of power source for any
packing materials that may obstruct air flow
through the power source.
D. If the equipment is not to be installed immedi-
ately, store it in a clean, dry, well-ventilated
area.
2.1 GENERAL
This section provides detailed instructions for the proper
installation of the ESAB 350mpi power source from initial
receipt of the equipment to output welding connections.
It is recommended that these instructions be followed
carefully to allow for the best possible operating environ-
ment.
2.2 REQUIRED TOOLS
Some procedures require use of the following tools:
3/8" wrench, Phillips or Robertson, and a screwdriver.
The use of socket wrenches or nutdrivers are recom-
mended over straight wrenches due to the location of
attaching hardware.
WRONG!
WRONG!

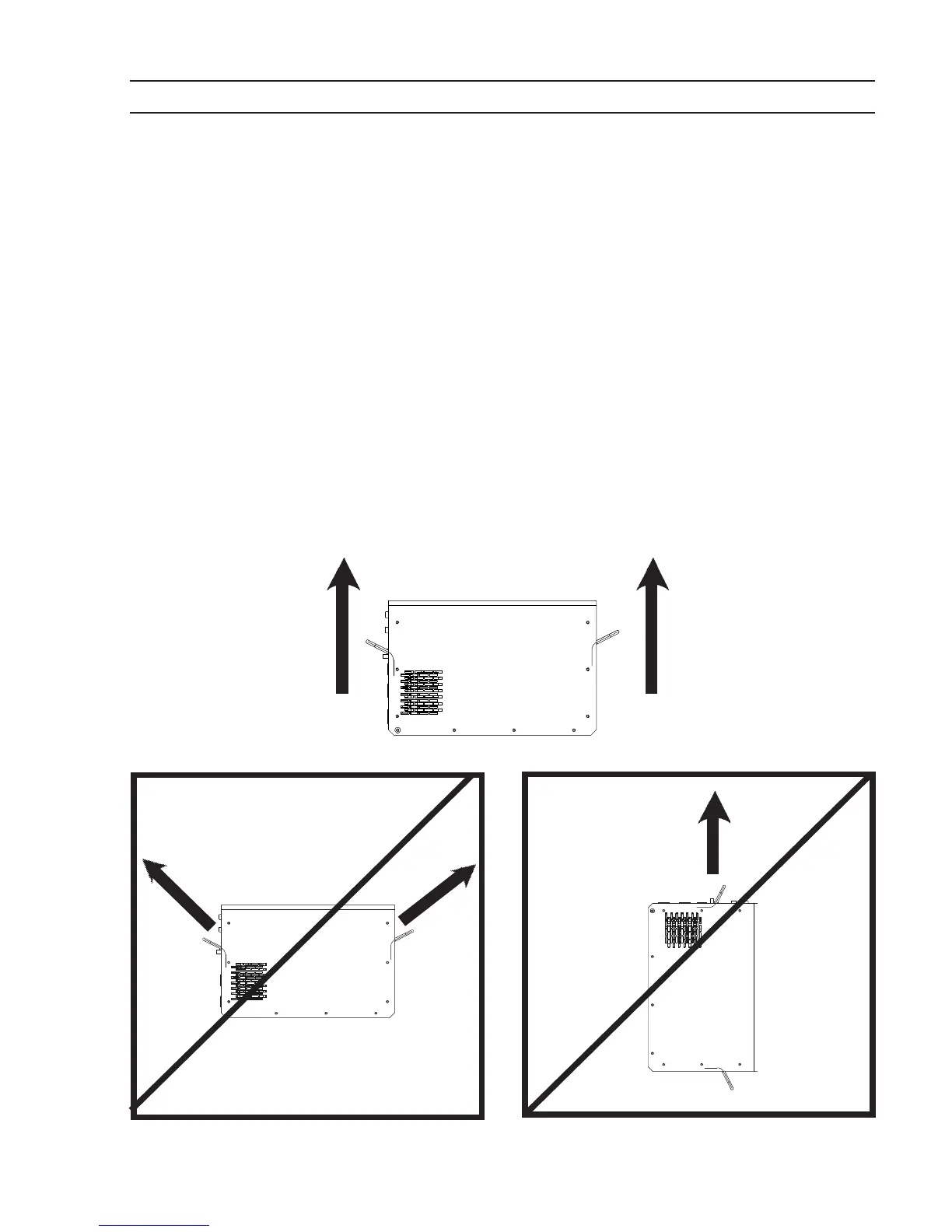

Figure 2-1. Correct and Wrong Lifting Techniques
