17

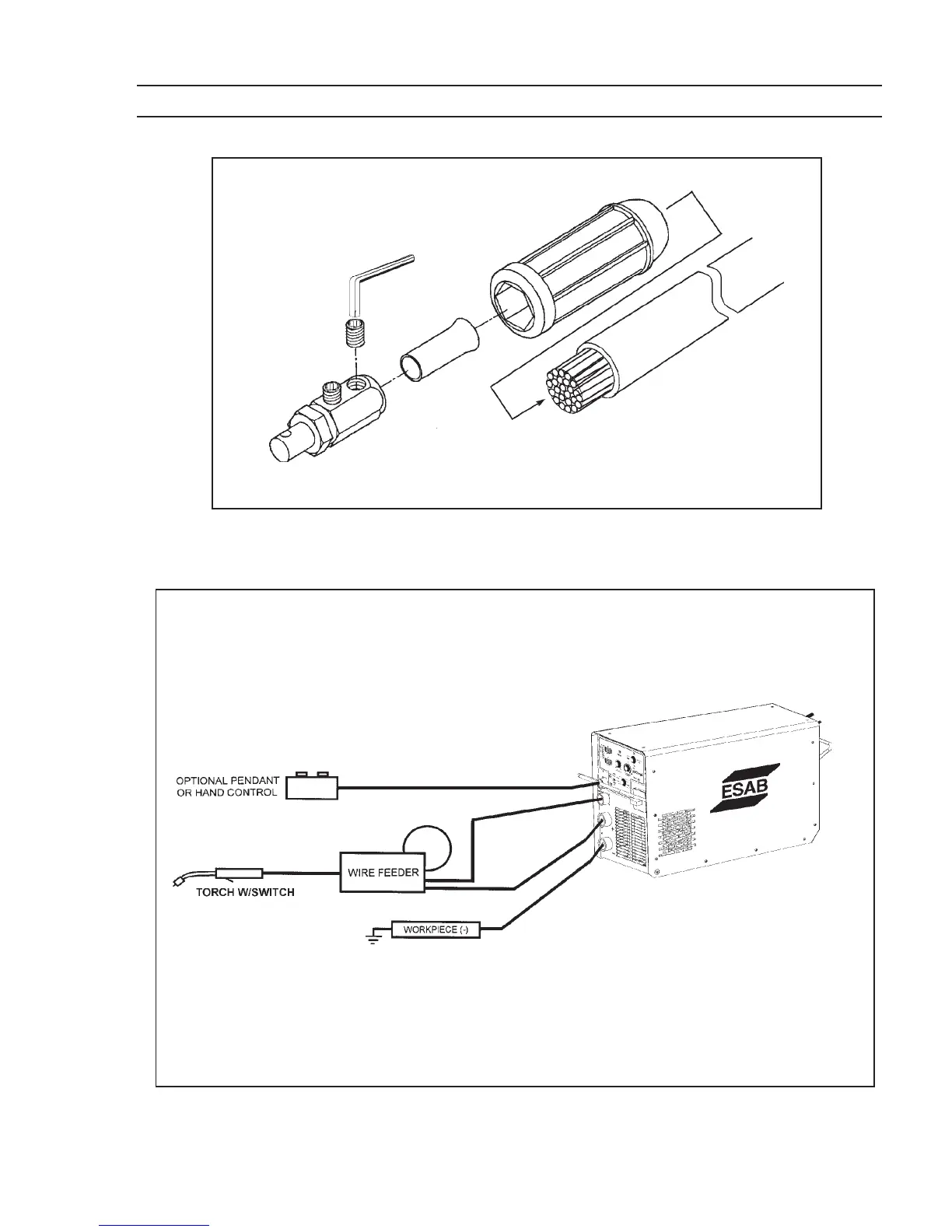

Figure 2-4. Male Output Cable Connectors (P/N 13792513)
Figure 2-5. MIG (GMAW) Interconnection Diagram
SECTION 2 INSTALLATION
(REMOTE CONTROL
HC-5, P/N 34838)
