4.2.3 REMOTE CONTROL MODULE OPTIONAL

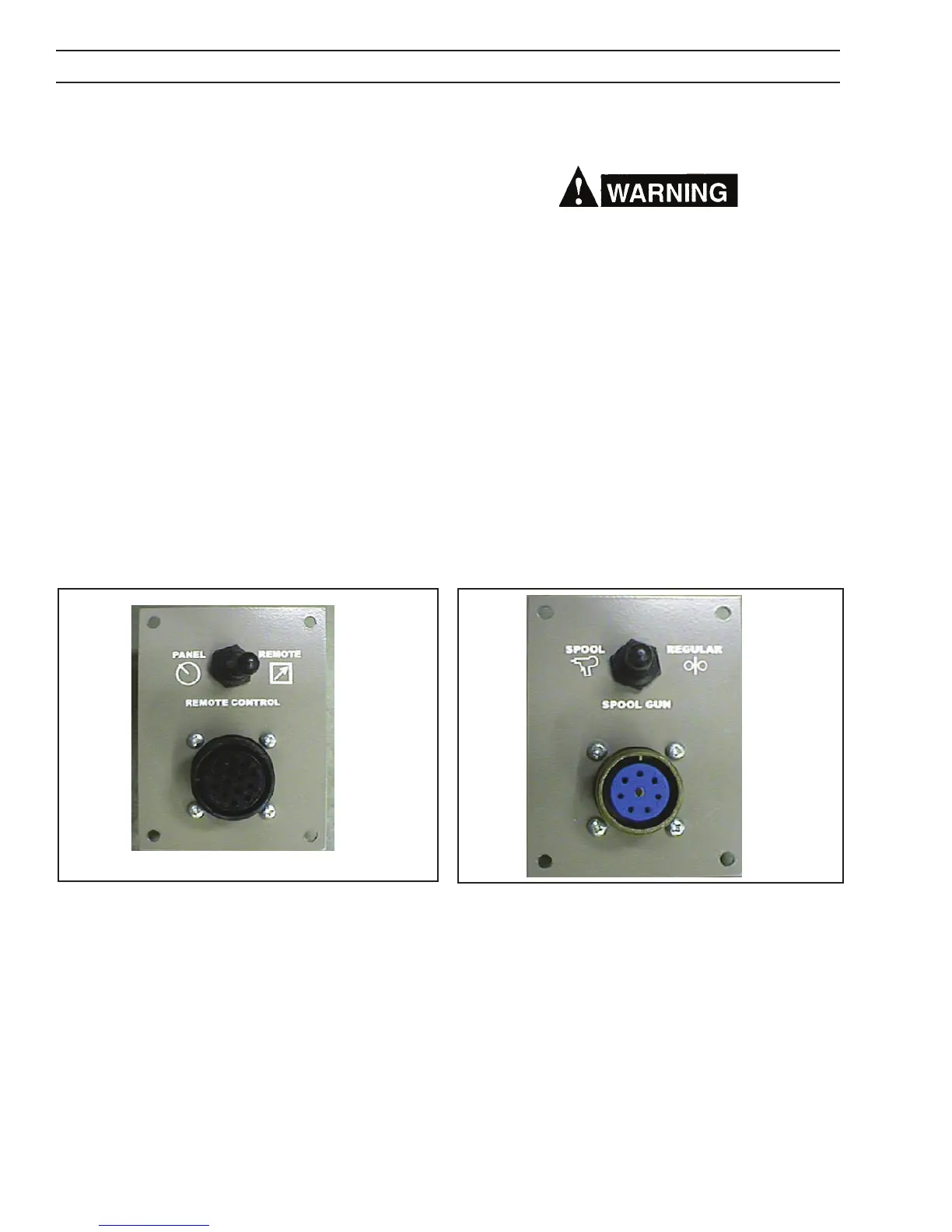

PN0558001792 FIGURE 16
This optional control panel mounts to the front of the power
source to the right of the main power switch (see Figure 13).
The remote receptacle can be used for a variety of options,
such as a Tig current control, foot pedal control or manual
hand current control. The module includes a toggle switch
to select between PANEL or REMOTE control of the welding
current and contactor.
Figure 16 Remote Control Module
4.2.4 SPOOL GUN CONTROL MODULE
OPTIONAL PN0558001793 FIGURE 17
This module mounts to the front panel just left of the Mig Gun
trigger connectors and allows the use of either the MT-250SG
or ST-23A spool guns with the Multimaster 260. The module
has a switch to select either spool gun or regular Mig gun
operation. See Table 3 for MIG Spool Gun Paramaters.
Figure 17 - Spool Gun Control Module
4.3 OPERATING PROCEDURES
Comply with all ventilation, re and other safety require-
ments for arc welding as established in the SAFETY Section
at the front of this manual.
