Gndf
14
g

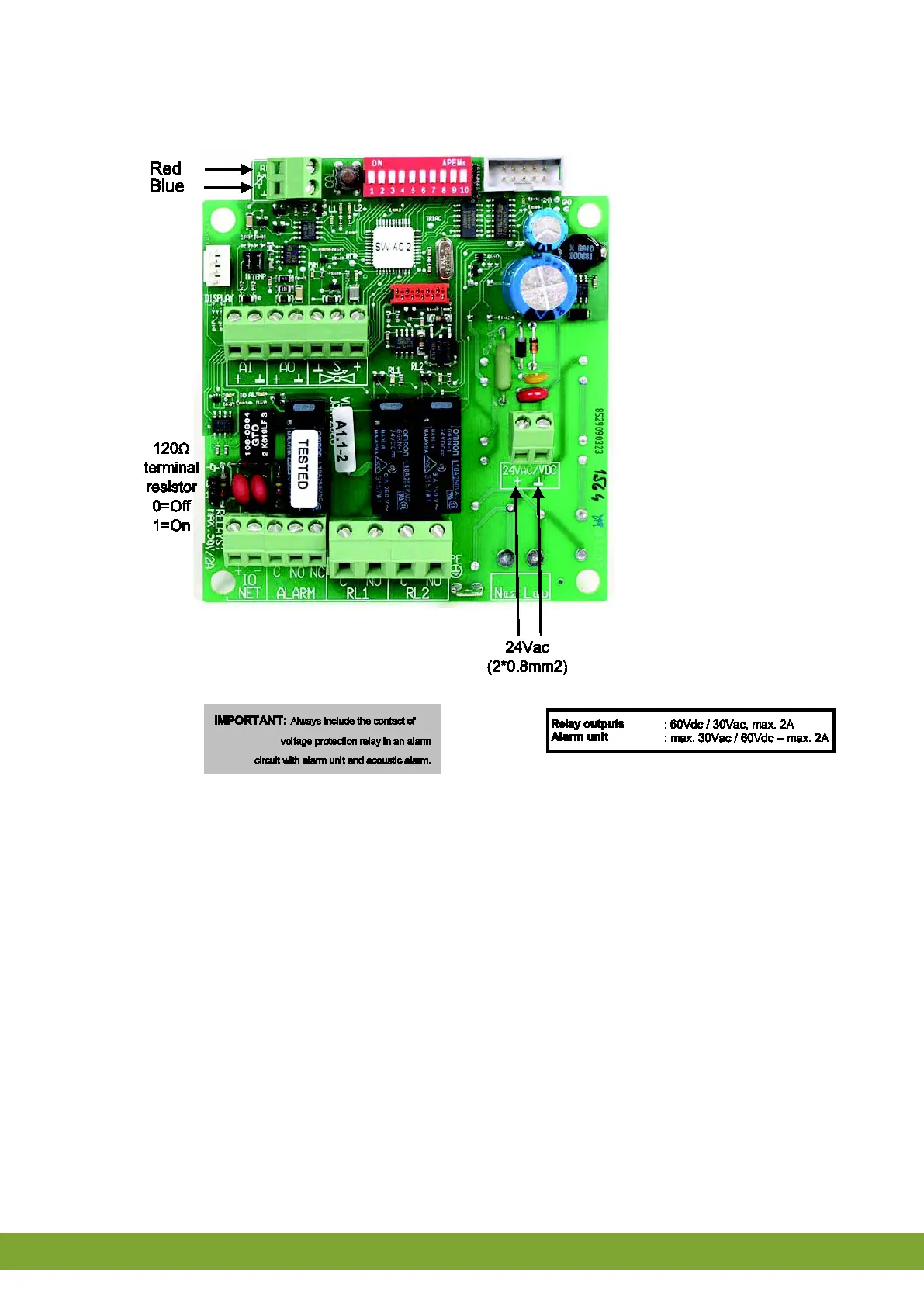

8. Connection diagram
VL POWER BOARD
AI Temperature (type S7) / Analog control
AO Control vortex damper
-S+ DSR sensor
RL1/RL2 Relays
