gndF
14
f

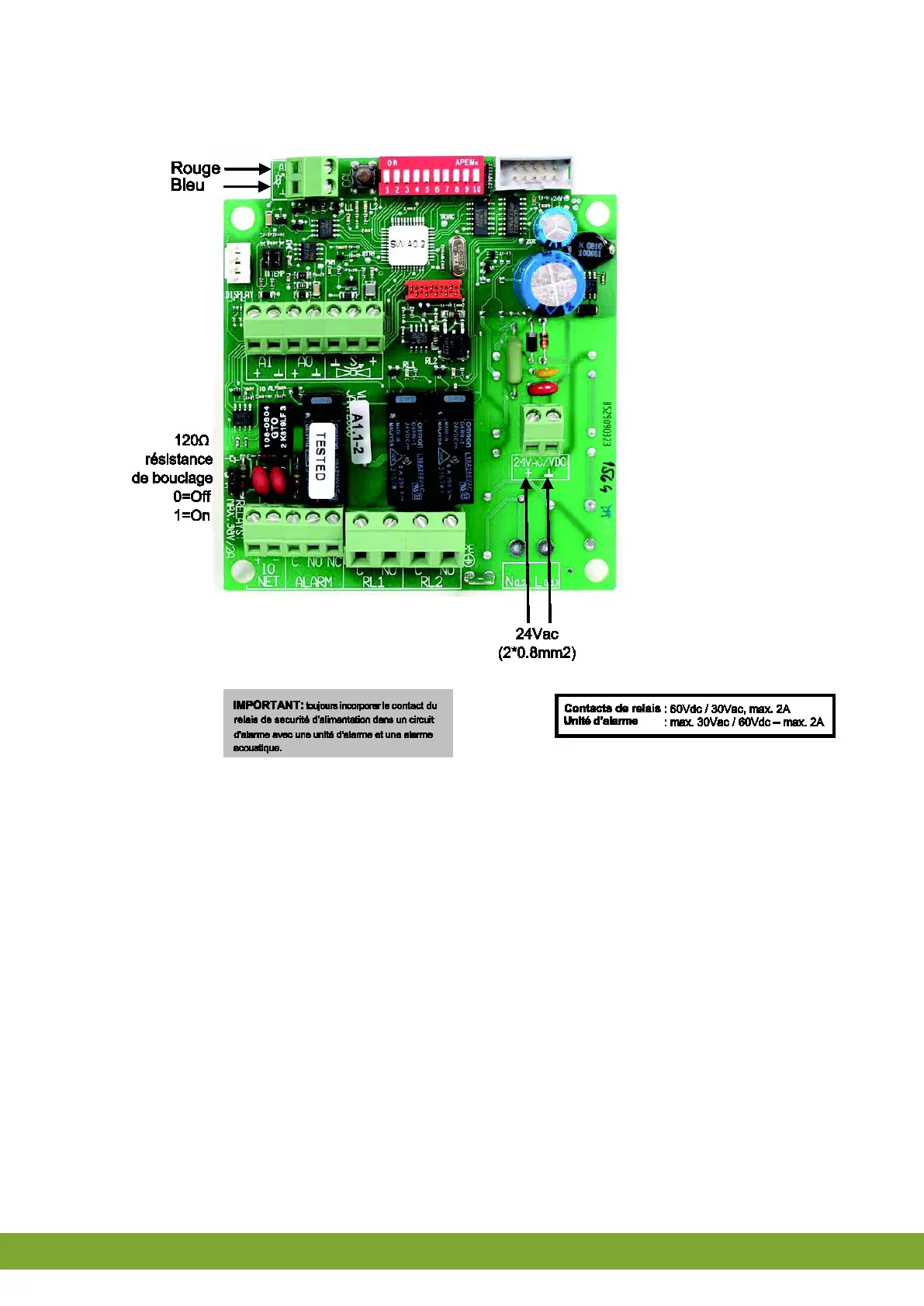

8. Diagramme de connexion
CARTE D’ALIMENTATION VL
AI Température (type S7) / commande analogique
AO Registre vortex
-S+ Capteur DSR
RL1/RL2 Relais
