www.fastech-motions.com - 16
Please refer to the Appendix when
connects motor extension cable.
Careful connection will be required to
protect the drive from any damages.
CAUTION
※ Alarm Reset signal line is also used for Motor Free signal.
(For details, please refer to Control Signal Input/Output Description)
※ When connects I/O cable between controller and drive, please turn off the power
of both controller and drive, in order to protect the drive from any damage.
Shielded
Twisted Pair
Cable

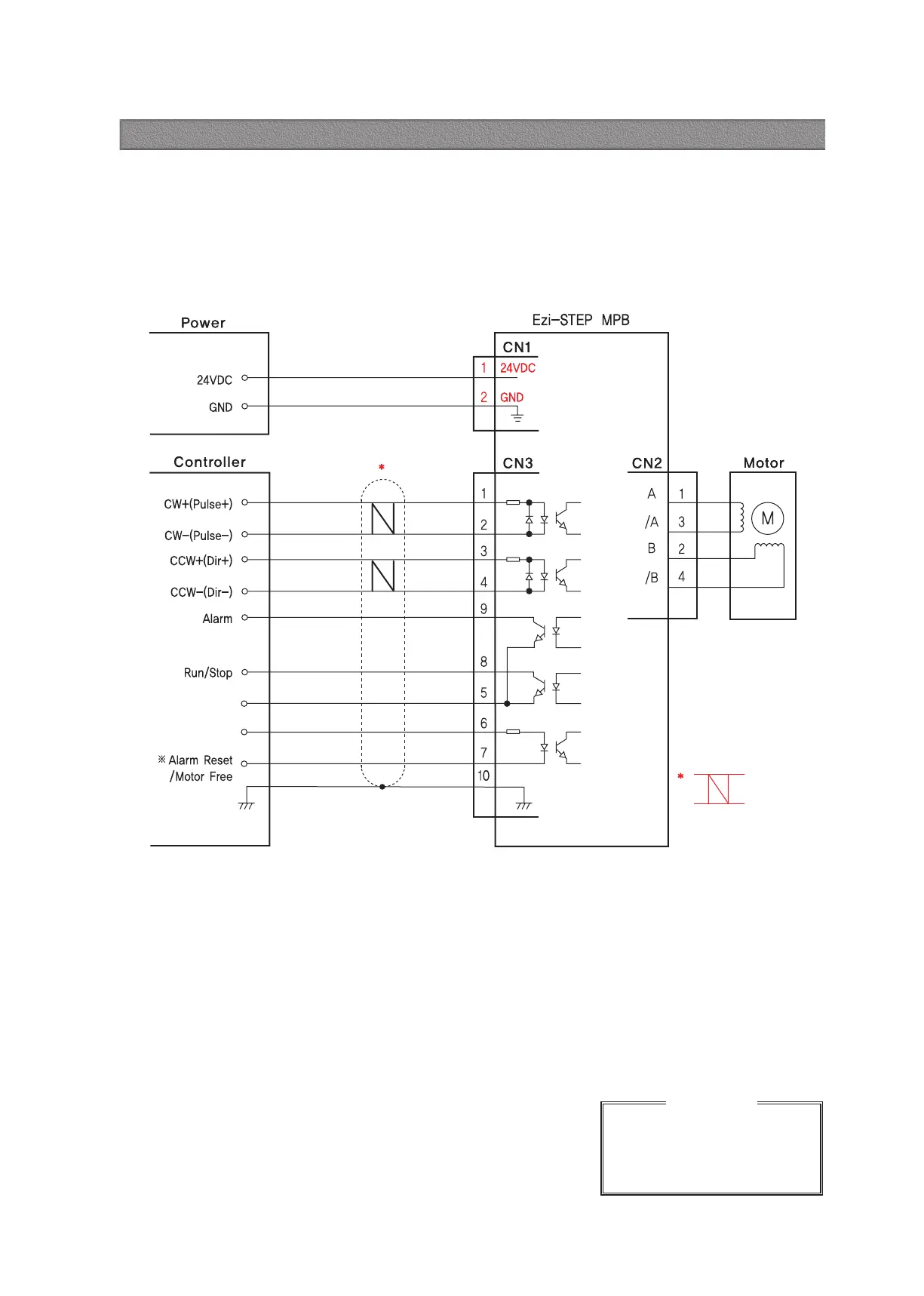

14. External Wiring Diagram [Ezi-STEP-MPB series]
To Next Page
