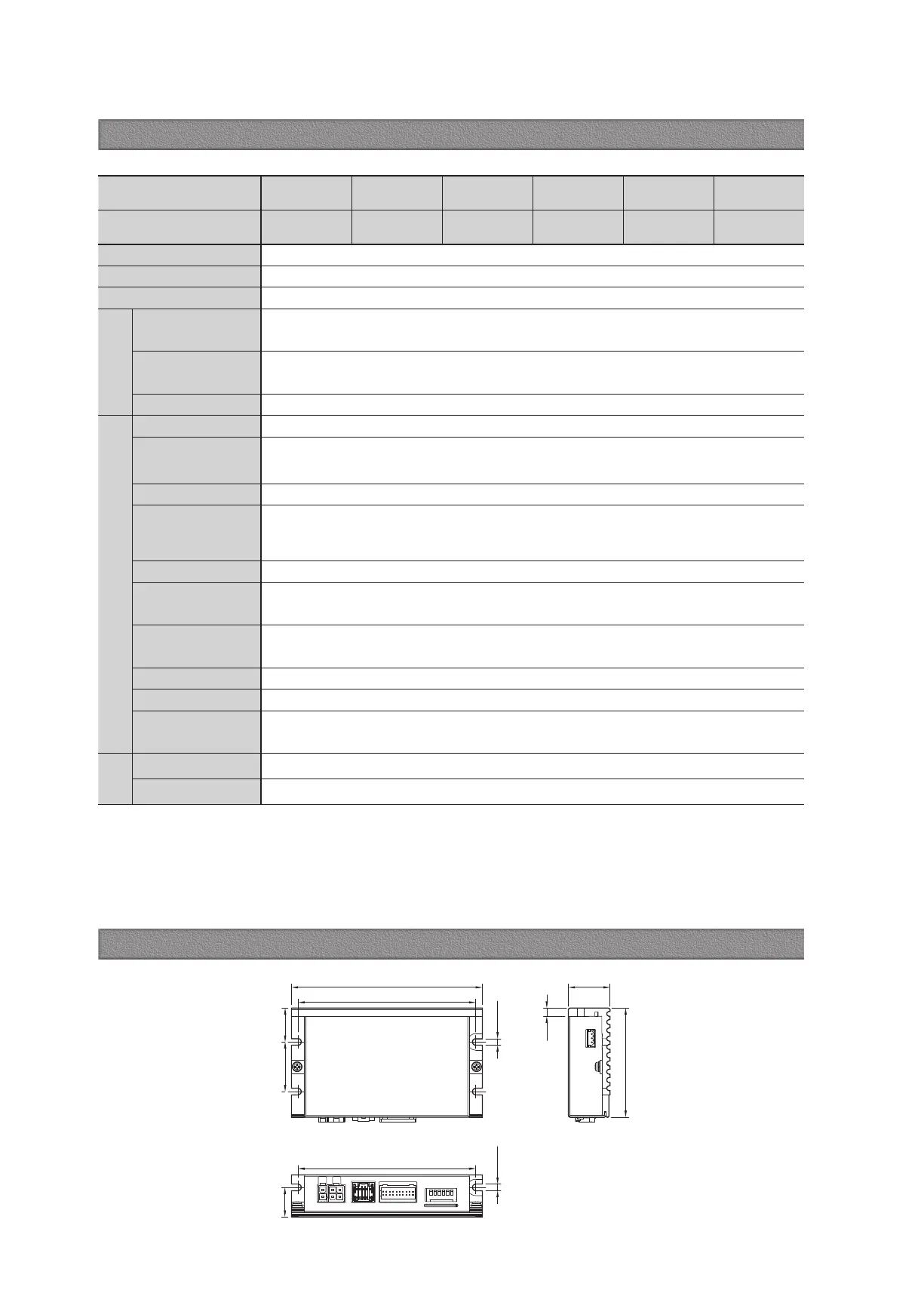

15. Specifications of Drive [S-SERVOII ST]
*1 : Up to the resolution of 10,000[ppr], maximum speed can be reached by 3,000[rpm] and with the resolution more than 10,000[ppr],
maximum speed
shall be reduced accordingly.
*2 : Please refer to「Settings and Operating」to obtain detailed function information.
*3 : Please refer to「Control Input/Output Explanation」to obtain detailed Input/Output signal information.
*4 : When selected resolution is more than encoder resolution, motor shall be operated by microstep between pulses.
115.5 25.3
107.5
107.5
17.8 30 20.5
5
66
2-4 4-4
Motor Model
SM-20
series
SM-28
series
SM-35
series
SM-42
series
SM-56
series
SM-60
series
Driver Model
SV2-PD-20
series
SV2-PD-28
series
SV2-PD-35
series
SV2-PD-42
series
SV2-PD-56
series
SV2-PD-60
series
Input Voltage
24VDC ±10%
Control Method
Closed loop control with 32bit MCU
Current Consumption
Max 500mA (Except motor current)
Operating
Condition
Ambient
Temperature
·In Use: 0~50℃
·In Storage: -20~70℃
Humidity
·In Use: 35~85% RH (Non-Condensing)
·In Storage: 10~90% RH (Non-Condensing)
Vib. Resist.
0.5g
Function
*2
Rotation Speed
0~3,000 [rpm]
*1
Resolution [ppr]
*4
500 1,000 1,600 2,000 3,200 3,600 4,000 5,000 6,400 8,000 10,000 20,000 25,000 36,000 40,000 50,000
(Selectable by DIP Switch)
Maximum Frequency
500kHz (Duty 50%)
Protection Functions
Over Current Error, Over Speed Error, Position Tracking Error, Over Load Error, Over Temperature Error,
Over Regenerated Voltage Error, Motor Connect Error, Encoder Connect Error, In-Position Error,
ROM Error, Position Overflow Error
LED Display
Power status, In-Position status, Enable status, Alarm status
RUN Current
50%~150% (Selectable by parameter) RUN current is current value which flows onto the motor during
operation (rotation) of the motor and it is set based on rated current of the motor. * Default: 100%
STOP Current
20%~100% (Selectable by parameter) When motor stop operation, 0.1 second after motor current will be
set to STOP current value. STOP current value is a percentage of the rated current of motor. * Default: 50%
Pulse Input Method
1 Pulse / 2 Pulse (Selectable by DIP Switch) * Default: 2 Pulse
Rotational Direction
CW/CCW (Selectable by DIP Switch) * Default: CW
Speed/Position
Control Command
Pulse Train Input
I/O
Signal
*3
Input Signals
Position Command Pulse, Enable, Alarm Reset (Photocoupler Input)
Output Signals
In-Position, Alarm (Photocoupler Output), Brake
