FEASA LED ANALYSER
FUNCTIONAL VERSION
Daisy Chain Mode
Daisy Chain Pinout
PIN
D_IN
D_OUT
1
RX_in
RX_out
2
TX_
out
TX_in
3
GND
GND

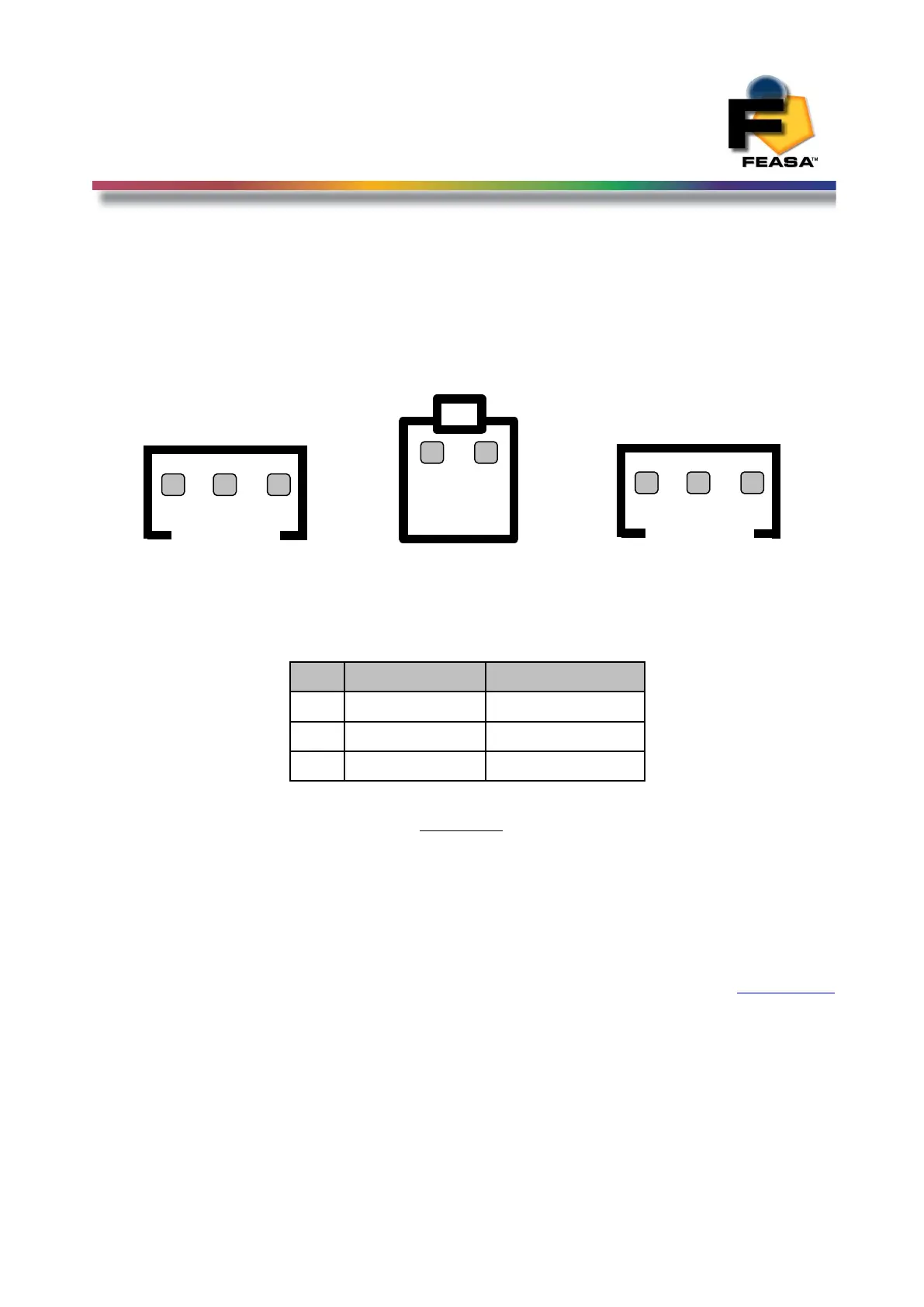

Figure 11
Figure 11 shows the layout of the Connectors viewed from the edge of the board.
The
GND
line of
D_OUT
is connected with the
GND
line of
D_IN
, the
RX_out
of
D_OUT
is
connected to
RX_in
of
D_IN
and the line
TX_in
of
D_OUT
is connected to the line
T
X_out
of
D_IN
.
Back to Index
113
1
2
3
D_IN
1
2
3
D_OUT
GND
5V
POWER SUPPL
Y
112
114
