Installation
Description, Specications, Installation, and Service Manual

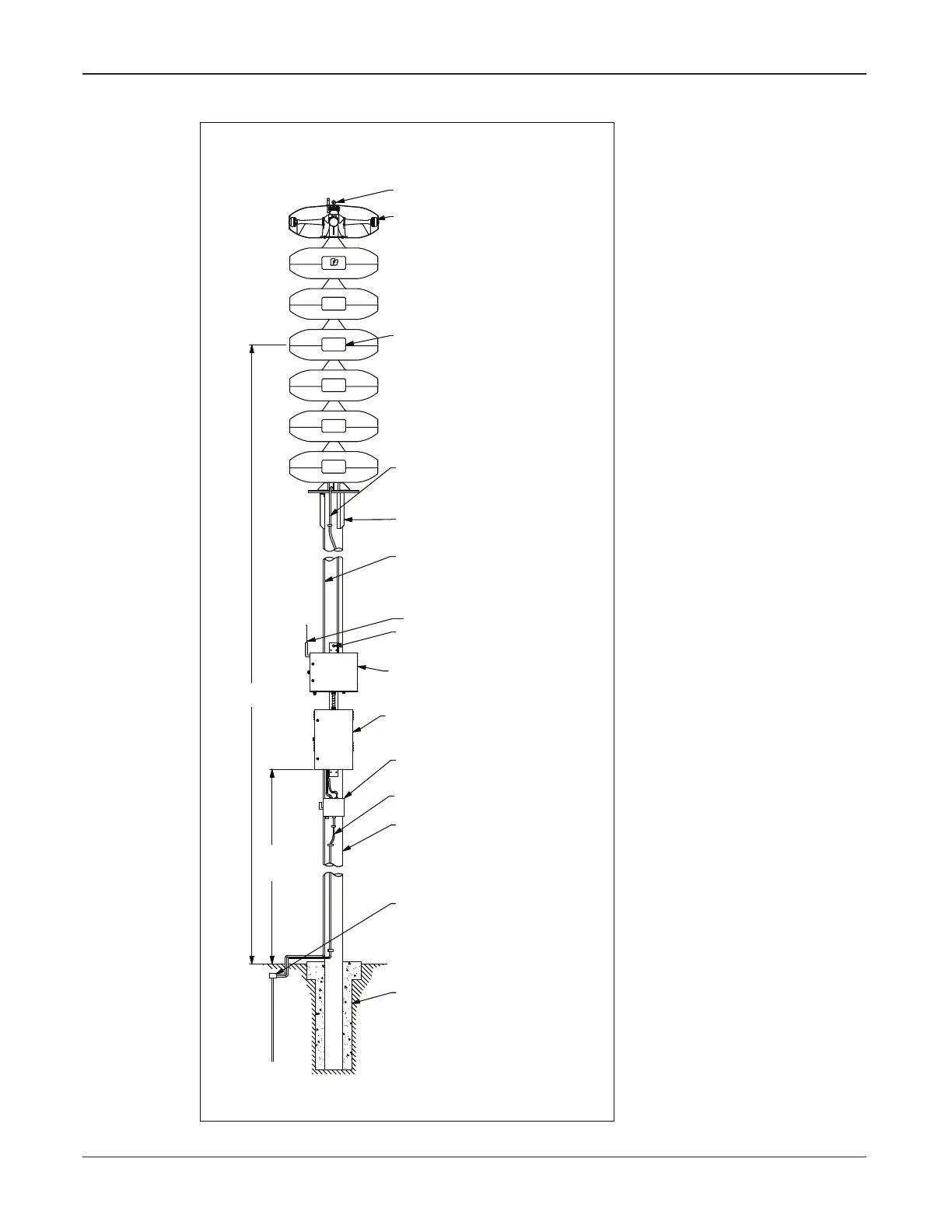

Figure 3 Typical Wooden Pole-mounted Installation
REFER TO
REFER TO
CONTRACT
SPECS.
CONTRACT SPEC.
(CUSTOMER SUPPLIED)
GROUND LEVEL
CONCRETE FOOTING OPTIONAL
CONTRACT SPECIFICATIONS DETERMINE
AND NATIONAL ELECTRICAL BUILDING CODES
BEFORE PROCEEDING WITH INSTALLATION.
INSTALLATION ALWAYS REFER TO LOCAL
NOTE: DRAWING DEPICTS A TYPICAL
NOTE: CERTAIN SOIL CONDITIONS MAY
REQUIRE GUYING FOR THE POLE.
CLASS II UTILITY POLE
(CUSTOMER SUPPLIED)
(CUSTOMER SUPPLIED)
GROUND ROD TO BE 8 FT.
#4 COPPER WITH CLAMP
1-1/4" CRANE LIFT HOLE
(CONTROL UNIT & BATTERY BOX)
ULTRAVOICE CONTROL
CONTROL UNIT GROUND WIRE
BATTERY BOX
SERVICE DISCONNECT
BETWEEN ANGLE LEGS & POLE.
(CUSTOMER SUPPLIED)
(CUSTOMER SUPPLIED)
(IF REQUIRED)
INSTALL 5/8" LAG BOLTS & SHIMS
(CUSTOMER SUPPLIED) AS REQUIRED
SPEAKER ASSEMBLY GROUND
WIRE, #4 COPPER, CONNECT
RADIO ANTENNA (IF REQ'D)
TO GROUND ROD DIRECTLY.
CONDUIT & CLAMPS
(CUSTOMER SUPPLIED)
40' SPEAKER CABLE (LONGER OPTIONAL)
(FEDERAL SUPPLIED)
CRANE LIFT EYEBOLT
100W DRIVER (4 PER ACTIVE CELL)
(SHOWN POLE MOUNTED)
MOD6024
DRIVER ACCESS DOOR
291275B
