Federal Signal Corporation Modulator MOD Series User Manual

21
Installation
Description, Specications, Installation, and Service Manual
Installing Lights on the Siren
Modulator models can be ordered with optional top lights and/or side lights. If not
ordered with the Modulator siren, they can be added later by purchasing the Top Light Kit
(Federal Signal part number 191XL-024R) or Side Light Kit (Federal Signal part number
MOD-QF-KIT). Modulator models purchased after September 2017 are precongured to
support Top Light and Side Light Kits.
NOTE: The standard light referenced is the color red, but other colors are available.
The following instructions refer to the conguration of the Modulators that have been
precongured.
Installing the Top Light Kit
The Top Light Kit is installed onto the strobe bracket that extends out of the top module.
To install the Top Light Kit:
1. Remove the strobe bracket cap.
2. Locate the two spare wires within the strobe bracket.
3. Connect the top light wiring to the two spare wires (red/white positive and red/black
negative) from the wire harness within the module.

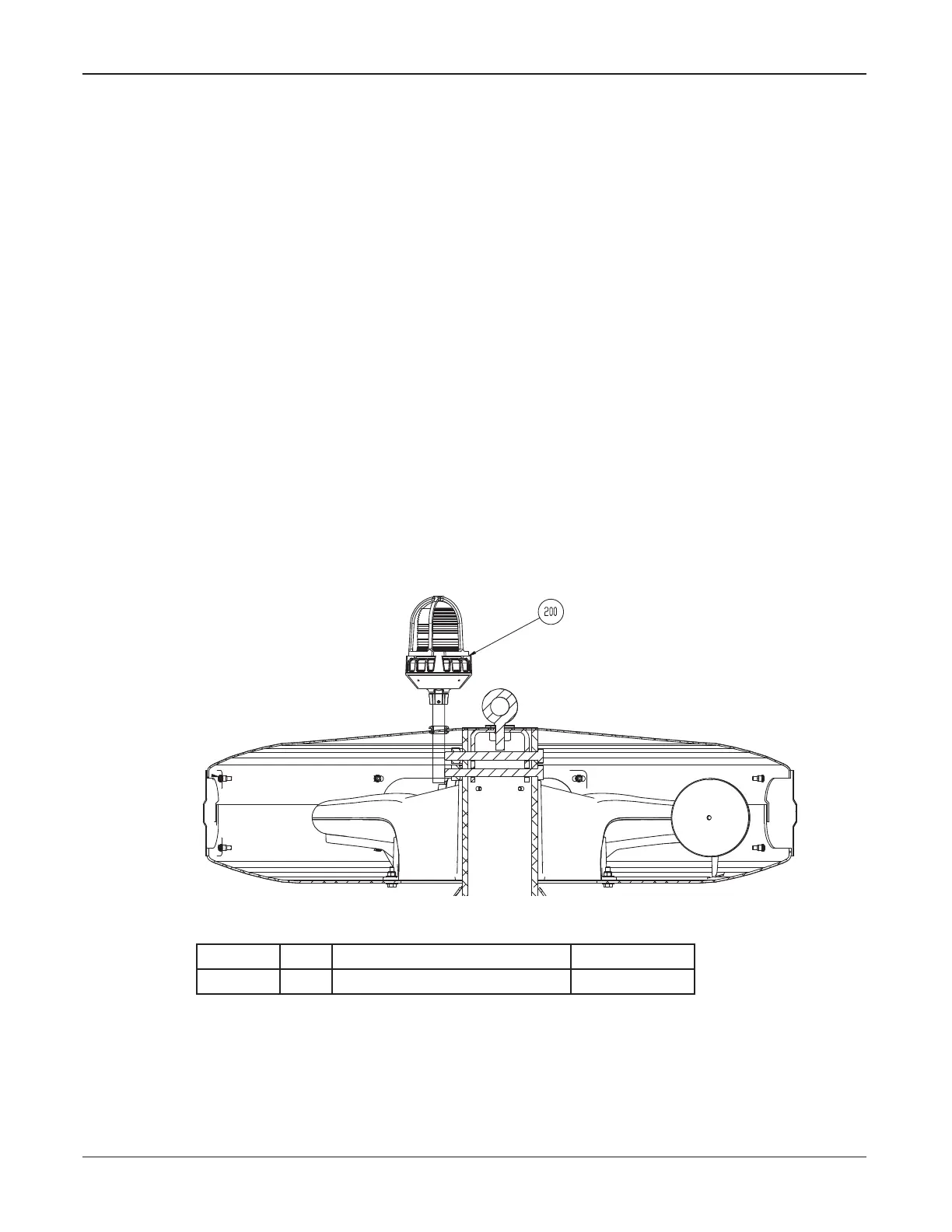

Figure 8 Top Light
Table 14 Top Light Kit (Model 191XL-024R)
Item No. Qty. Description Part Number
200 1 Light, HAZ, LOC, LED, Red 191XL-024R
