LUBRICATION
Lubricate the unit at the locations shown in Figure 13
through 18.
Grease:
Use grease fittings when present. Disassemble parts
to apply grease to moving parts when grease fittings
are not installed.
Not all greases are compatible. Ferris Red Grease
(P/N 22285) is recommended, automotive-type high-
temperature, lithium grease may be used when this is
not available.
Oil:
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe fit-
tings and surfaces clean both before and after lubri-
cation.
Regular Maintenance

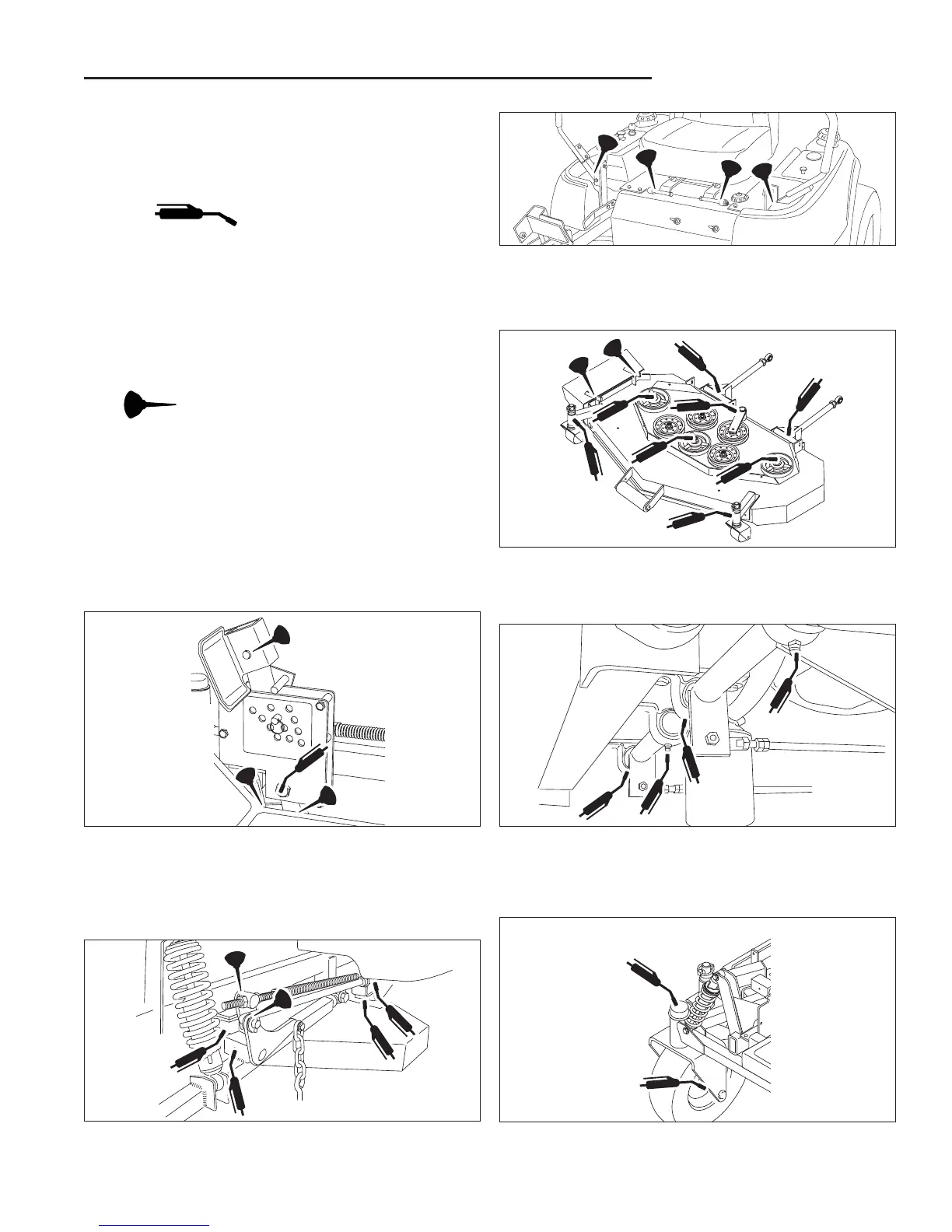

Figure 16. Deck Lubrication
Figure 14. Deck Lift Linkage Pivots
Figure 13. Deck Lift Pedal & Pivots
Figure 18. Front Caster & Wheel
Figure 17. Control Pivots
Figure 15. Control Handle Pivots & Seat Pivots
