Figure 21. Balancing The Blade
Figure 22. Installing The Blade
A. Blade Bolt
B. Flat Washer
Nail
SERVICING THE MOWER BLADES
1. Blades should be sharp and free of nicks and dents.
If not, sharpen blades as described in following
steps.
2. To remove blade for sharpening, use a 1” wrench on
the flats of the spindle shaft while removing the blade
mounting bolt with a 15/16” wrench (Figure 20).
3. Use a file to sharpen blade to fine edge. Remove all
nicks and dents in blade edge. If blade is severely
damaged, it should be replaced.
4. Balance the blade as shown in Figure 21. Center the
blade’s hole on a nail lubricated with a drop of oil. A
balanced blade will remain level.
5. Reinstall each blade with the tabs pointing up toward
deck as shown in Figure 22. Secure with a bolt and
flat washer and torque bolts to 70 ft.lbs. (94 N.m.).

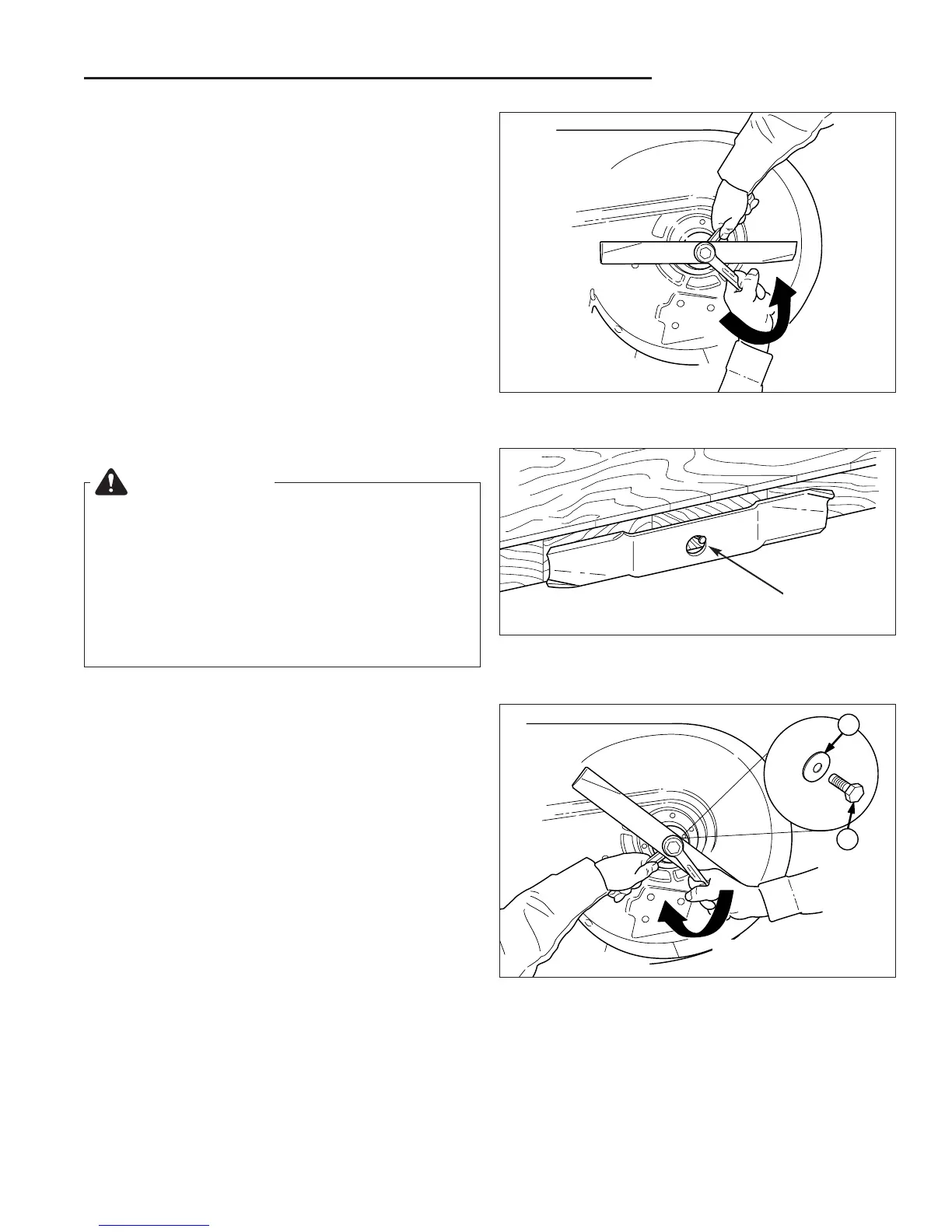

Figure 20. Removing the Blade
WARNING
Mower blades are sharp. For your personal
safety, do not handle mower blades with bare
hands. Careless or improper handling of blades
may result in serious injury.For your personal
safety, blade mounting bolts must each be
installed with a flat washer then securely
tightened. Torque blade mounting bolts to
70 ft.lbs. (94 N.m.)
