Troubleshooting, Adjustment & Service
33

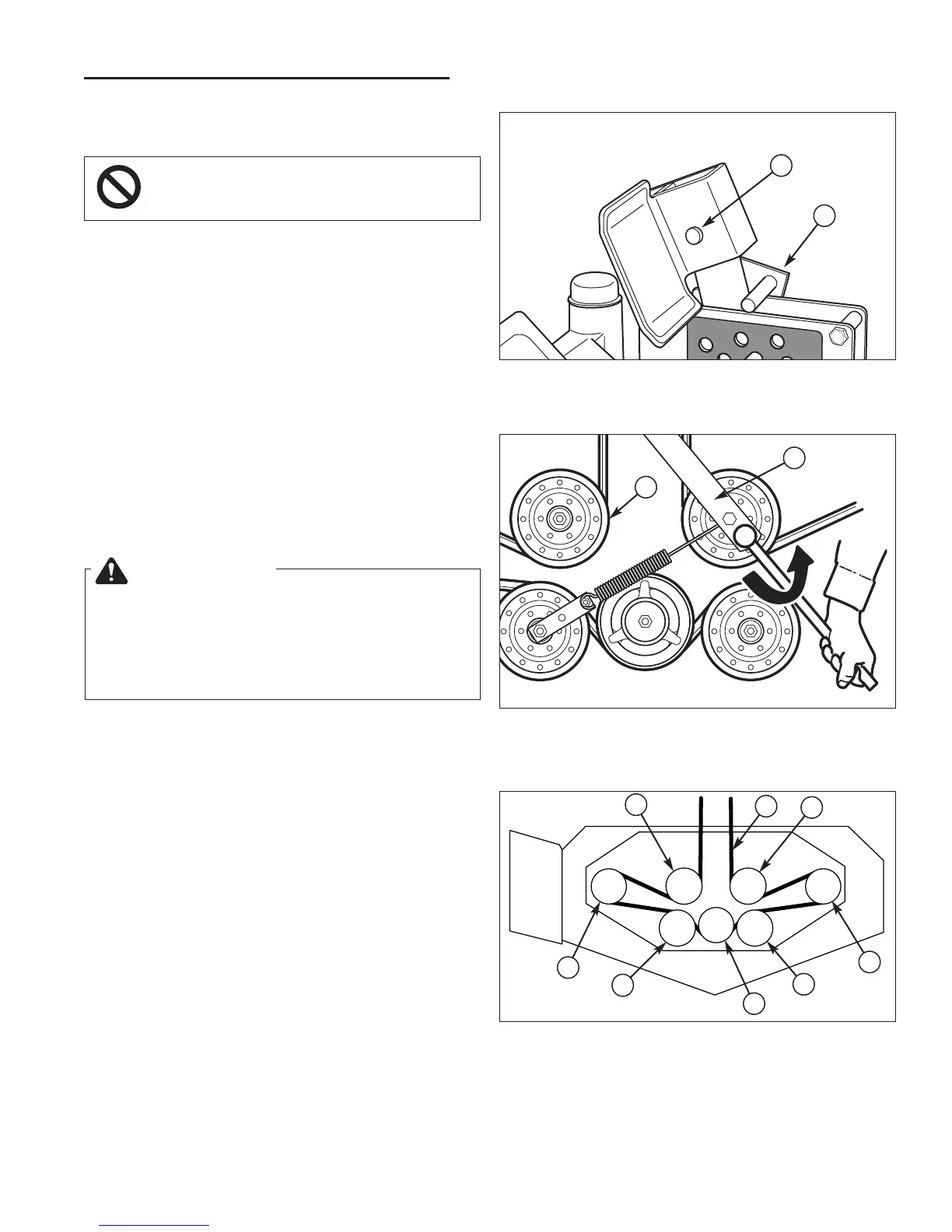

MOWER BELT REPLACEMENT
1. Park the tractor on a smooth, level surface such as a
concrete floor. Disengage the PTO, engage the
parking brake, turn off the engine, and remove the
ignition key.
2. Remove the hardware fastening the PTO clutch to
the rubber anchor pad.
3. See Figure 42. Remove the hairpin clip and clevis
pin and remove the deck lift foot pedal. Loosen the
bolt securing the floor hold down tab (export model
only). Lift the floor plate to gain access to the PTO
drive belt.
4. Using a 1/2” breaker bar, place the square end in the
square hole located in the end of the idler arm (A,
Figures 43). Carefully rotate the breaker bar
counter-clockwise, which will relieve the tension on
the belt exerted from the idler arm.
5. Slide the drive belt over the edge of the stationary
idler pulley (B). Carefully release the tension on the
breaker bar until the idler arm stops against the cen-
ter spindle pulley.
6. Remove the old belt and replace with a new one.
Make sure the V-side of the belt runs in the pulley
grooves (Figure 44).
7. Install the drive belt on the PTO pulley, the spindle
pulleys and all idler pulleys except the stationary pul-
ley (B, Figure 43). Carefully rotate the breaker bar
counter-clockwise and install the belt on the station-
ary idler pulley (B). Carefully release the tension on
the breaker bar.
8. Reinstall the hardware fastening the clutch to the
rubber anchor pad.
9. Lower the floor pan and reinstall the deck lift foot
pedal, clevis pin and hairpin clip. Make sure the
deck lift lock bar is located as shown in Figure 42.
Secure the floor with the hold down tab and tighten
bolt (export model only).
10. Run the mower under no-load condition for about 5
minutes to break-in the new belt.
To avoid damaging belts, DO NOT
PRY BELTS OVER PULLEYS.
A
B
Figure 43. Mower PTO Belt
A. Idler Arm
B. Stationary Idler Pulley
WARNING
Use extreme caution when rotating the idler arm
with the breaker bar, due to the increased tension
in the spring as the idler arm is being rotated.
Injury may result if the breaker bar is prematurely
released while the spring is under tension.
Figure 42. Remove Lift Pedal
A. Clevis Pin
B. Deck Lift Lock Bar
A
B
Figure 44. Mower PTO Belt Routing
A. Spindle Pulley C. Spring-loaded Idler Pulley
B. PTO Drive Belt D. Stationary Idler Pulley
C
B
D
A
A
A
D
D
