Fisher & Paykel ACTIVESMART RS9120W User Manual

8
RD3680 RD3684

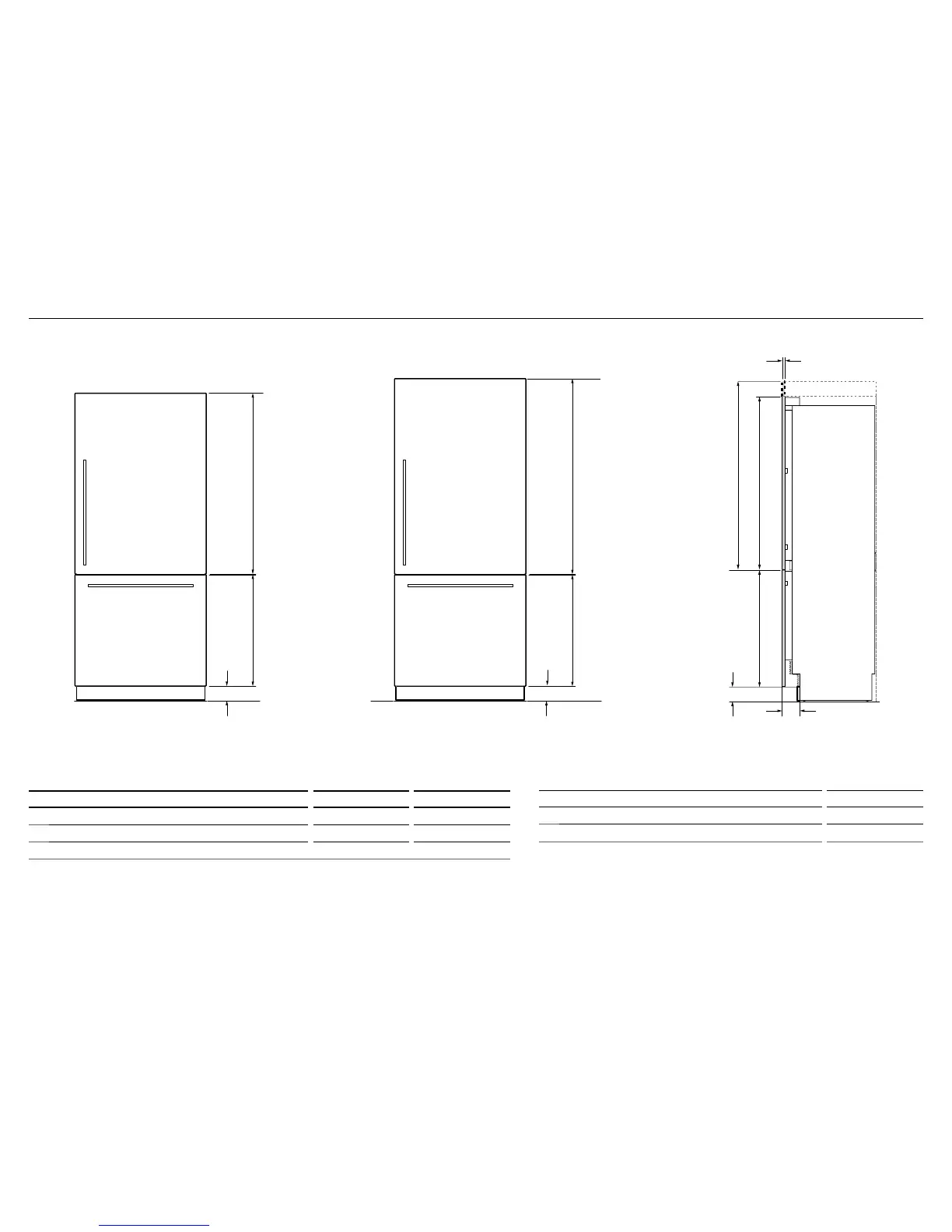

DOOR PANEL SETS DIMENSIONS mm mm
a
Height of top door panel 1150 1252
b
Height of bottom drawer panel 772 772
c
Depth of product front panels (excluding handles) 19 19
Note:

Optional Fisher & Paykel Stainless steel front panels. Model no. RD3684 / RD3680 (non-Water dispensing model) and
modelno.RD3684U / RD3684U (Ice & Water model).
TOE KICK PANEL DIMENSIONS mm
d
Height of toe kick panel 102
e
Depth of toe kick (measured from front of door panels) 120
Note:

Stainless steel toe kick, height 102mm is supplied with the refrigerator. For integrated installation,
customers can supply their own toe kick, height 102 – 152mm.

The bottom grille can be reduced to allow for a higher eg 152mm toe kick. Adjust the height of the
bottom drawer panel accordingly.
RD3680 DOOR PANEL SET
e
c
D
b
a
b
D
d
a a
b
RD3684 DOOR PANEL SET
e
c
D
b
a
b
D
d
a
a
b
b
a
d
e
c
5 STAINLESS STEEL DOOR PANEL AND TOE KICK DIMENSIONS
