11
RS9120WRU
RS9120W(R/L)J

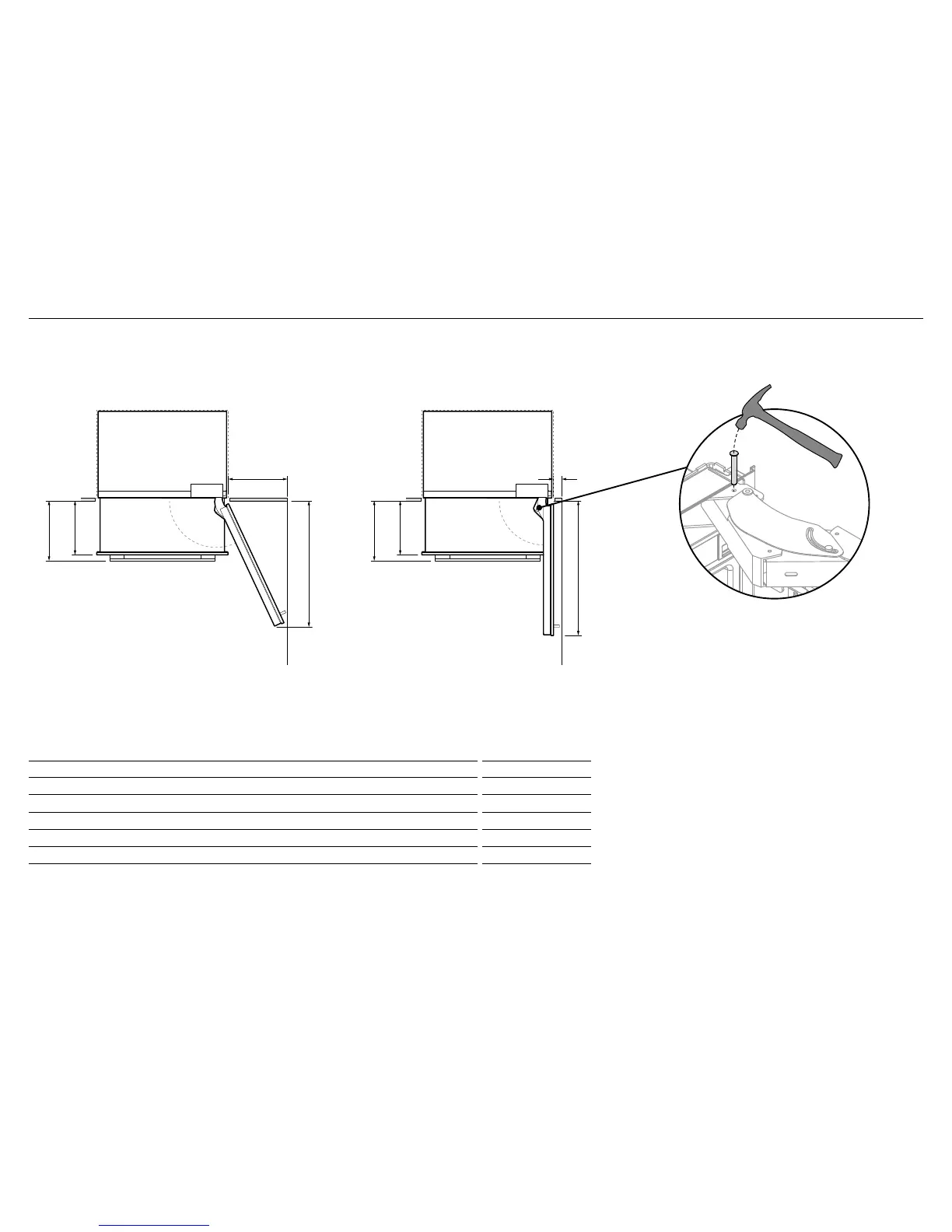

DOOR OPENING AND CLEARANCE DIMENSIONS mm
A
Depth of door (widest opening) measured from front of door 940
B
Depth of drawer (open) measured from front of drawer, including handle 400
C
Depth of drawer (open) measured from front of drawer, excluding handle 360
D
Minimum door clearance to adjacent wall* (115° – full internal access) 410
E
Minimum door clearance to adjacent wall* (90° – reduced internal access) 110
* Measured from front cabinetry edge.
90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
DOOR OPENING & CLEARANCE DIMENSIONS
Wall
115° DOOR OPENING
(FULL ROTATION)
90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
DOOR OPENING & CLEARANCE DIMENSIONS
d
A
b
c
b
c
a
e
Wall
90° DOOR OPENING
For 90° door swing a hinge limiting pin is supplied with
your refrigerator. This pin fits in the boreholes of the top
hinge (refer to Z).
WARNING!
Before opening doors to the product, ensure the
product is on its base packer and the polystyrene
stability blocks are still in place. Failure to follow these
instructions could lead to serious injury or death.
Drawer must be closed when fitting hinge limiting pin.
1
Open door to 90°.
2
Align the hinge limiting bolt vertically with the bore hole.
2
Insert the pin through the bore hole. Use a hammer to
drive the pin through the hole.
Z
8 DOOR OPENING ROTATION
