9
Note: top trim supplied for
2134mm installation

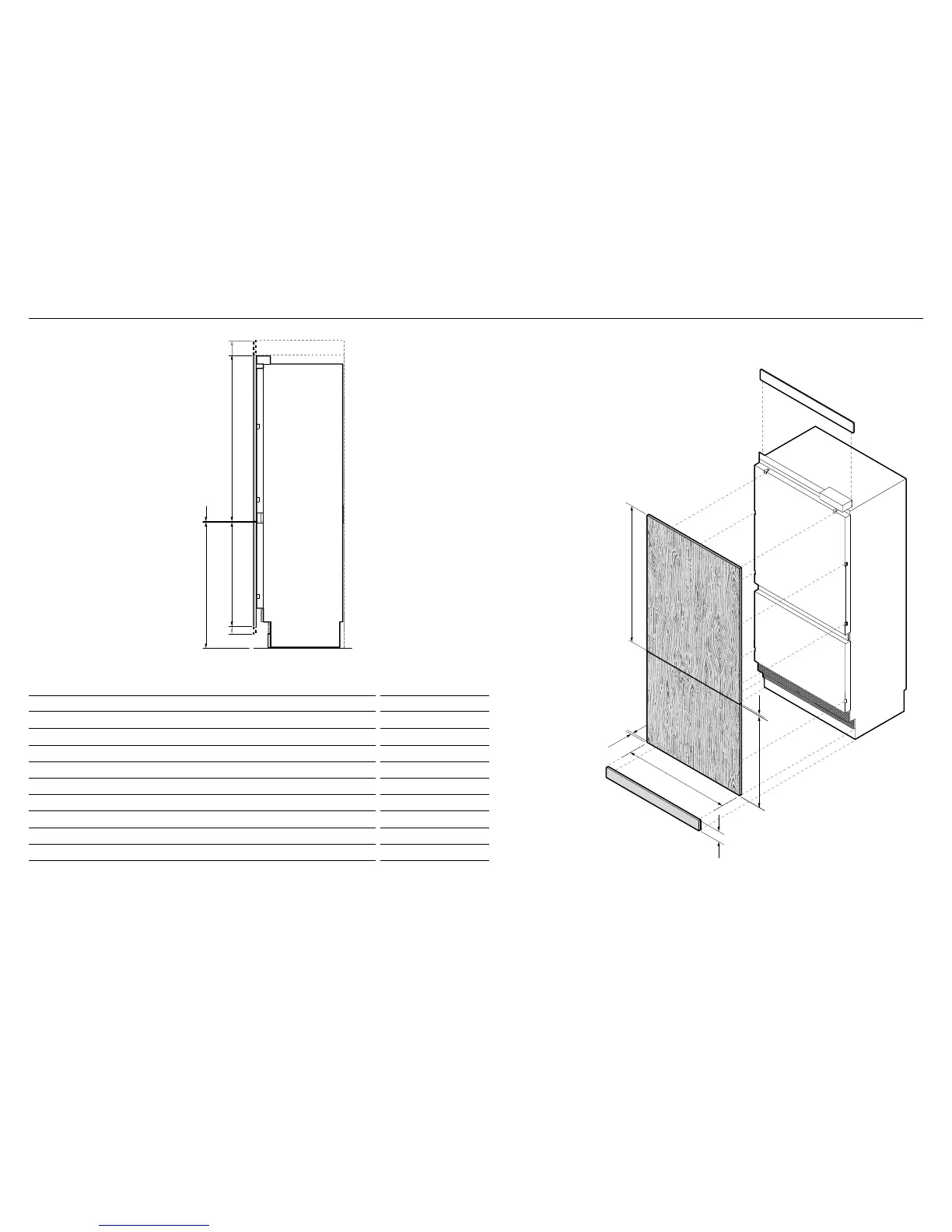

ISO VIEW
CUSTOM PANEL DIMENSIONS mm
A
Height of top door panel 1150 – 1252
B
Width of top door and bottom drawer panel 906
C
Height of bottom drawer panel 722 – 772
D
Height from bottom of product to top of bottom drawerpanel 874
E
Gap between top door panel and bottom drawer panel 4
F
Height of toe kick panel* 102 – 152
G
Depth of custom panels 16 – 25
Maximum weight of top door panel
(with handles) 20kg
Maximum weight of bottom drawer panel
(with handles) 11kg
Custom door panels to be manufactured and fitted by cabinetmaker.
Door handle kit is available as an optional accessory.
* Stainless steel toe kick, height 102mm is supplied with the refrigerator. For integrated installation, a custom toe kick
102 – 152mm can be manufactured and fitted by cabinetmaker. The bottom grille can be reduced to allow for a higher
toekick. Adjustthe height of the bottom drawer panel accordingly.
RS9120WJ models shown only.
When designing custom door panels, these
are only available for Automatic ice models.
PROFILE VIEW
