Advanced Thermal Solutions SC5000 User Manual
DCOO2U-L SC5000 User Manual Page 26

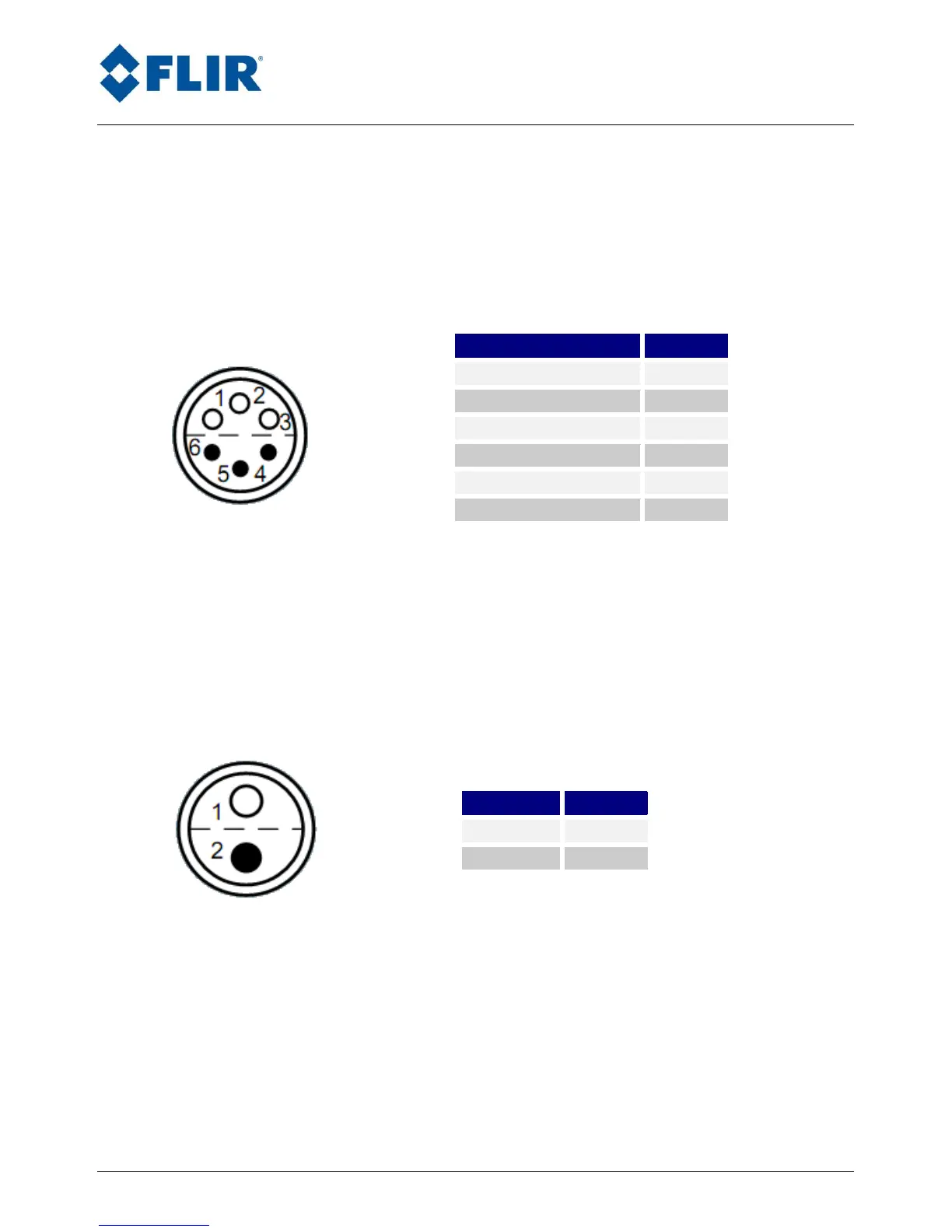

10.3. Electrical interface
10.3.1. VIDEO connector
Connector reference: LEMO ERP1S306CLN
Mating part: LEMO FFA1S306CLAC42Z
Signal Characteristic: 75 Ohms
10.3.2. Power supply connector
Connector reference: LEMO ECP1S302CLN
Mating part: LEMO FFA1S302CLAC52
Signal
Pin#
Composite_Video
1
GND
2
SVideo_Chroma
3
GND
4
SVideo_Lumi
5
TX
6
Signal
Pin#
GND
1
+12V
2
