Fluke ProcessMeter 789 User Manual

ProcessMeter
How to Get Started
5
How to Get Started
If familiar with the Fluke 80 Series DMM, read “Using the
Current Output Functions,” review the tables and figures
in “Getting Acquainted with the Meter,” and begin using
the meter.
If unfamiliar with Fluke 80 Series DMMs, or DMMs in
general, read “Measuring Electrical Parameters” in
addition to the sections referenced in the previous
paragraph.
The sections following “Using the Current Output
Functions” contain information about the power-up
options, and battery and fuse replacement instructions.
Later, use the Product Overview to refresh your memory
about the various functions and features that can be used.
mA
mA
mA
mA
mV
V
V
A
LOOP POWER
250
HART
OFF
mA
A
COM
V
Rotary
Switch
0%
RANGE HOLD
REL
MIN MAX
%STEP
COARSE
FINE
SpanCheck
Hz
100%
789
PROCESSMETER
Pushbuttons
Input/Output
Jacks
Display
anw014f.eps

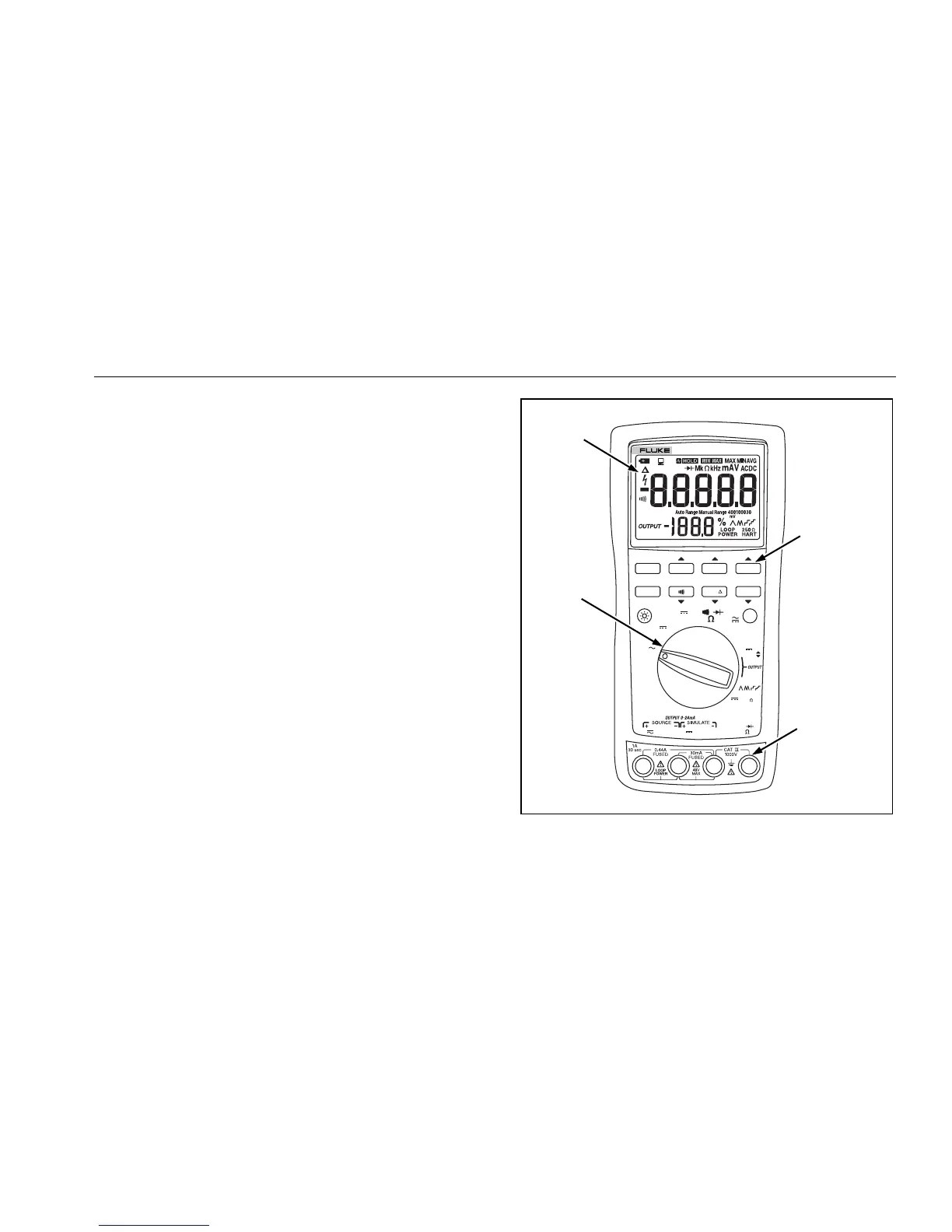

Figure 1. Fluke 789 ProcessMeter

Fluke ProcessMeter 789 Specifications

General

Diode test	Yes
Frequency range	0 - 19.999 kHz
AC current range	0 - 1 A
AC voltage range	0 - 1000 V
Resistance range	0 - 40000000 Ω
Resolution (AC voltage)	0.1 mV
Dimensions (WxDxH)	100 x 203 x 50 mm

Weight and Dimensions

Weight	610 g
