Fluke ProcessMeter 789 User Manual

ProcessMeter
Using the Current Output Functions
23
mA
mA
mA
mA
mV
V
V
A
LOOP POWER
250
HART
OFF
mA
A
COM
V
0%
RANGE HOLD
REL
MIN MAX
%STEP
COARSE
FINE
SpanCheck
Hz
100%
789
PROCESSMETER
dc V
Power Supply
40
20
0
100
80
60
COM +24V
anw011f.eps

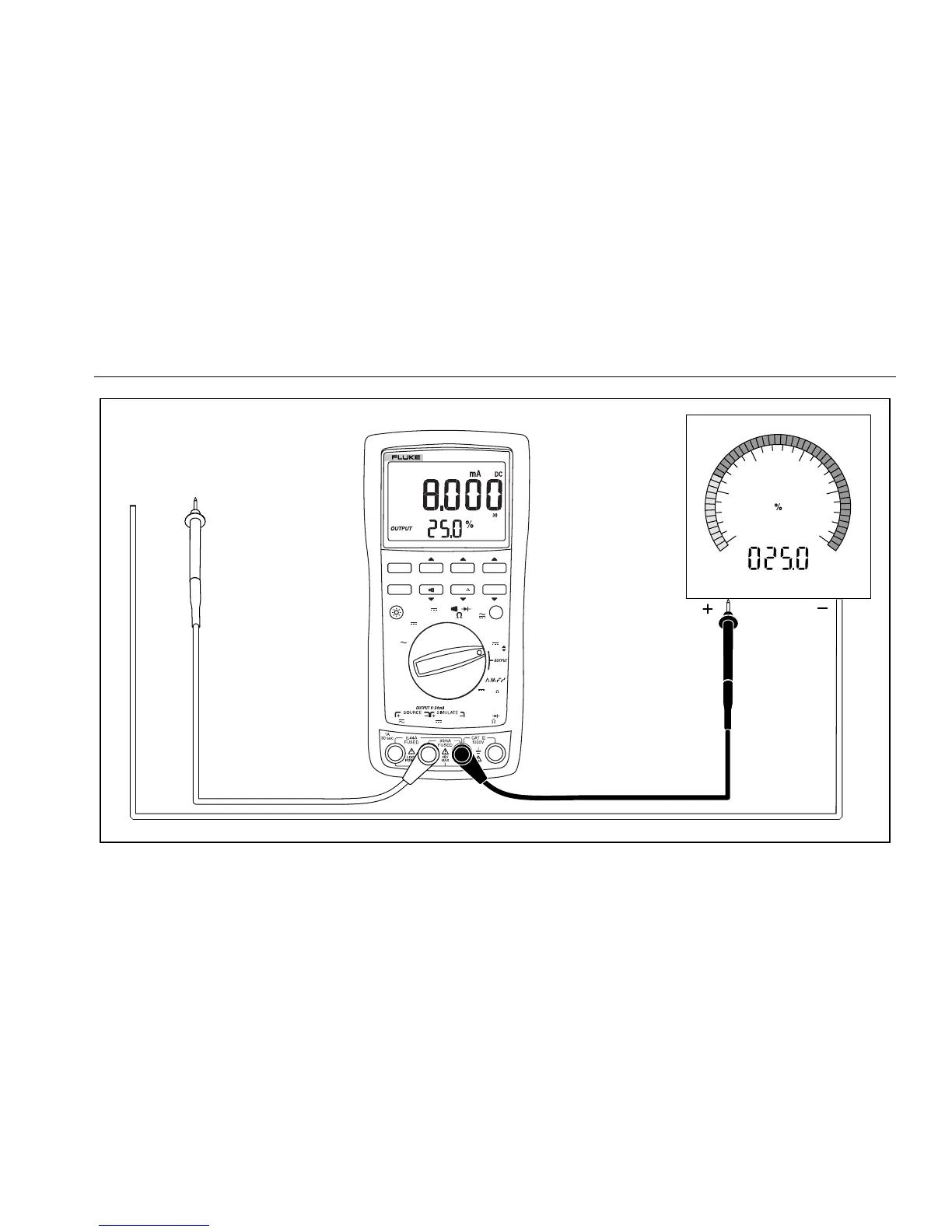

Figure 8. Simulating a Transmitter

Fluke ProcessMeter 789 Specifications

General

Diode test	Yes
Frequency range	0 - 19.999 kHz
AC current range	0 - 1 A
AC voltage range	0 - 1000 V
Resistance range	0 - 40000000 Ω
Resolution (AC voltage)	0.1 mV
Dimensions (WxDxH)	100 x 203 x 50 mm

Weight and Dimensions

Weight	610 g
