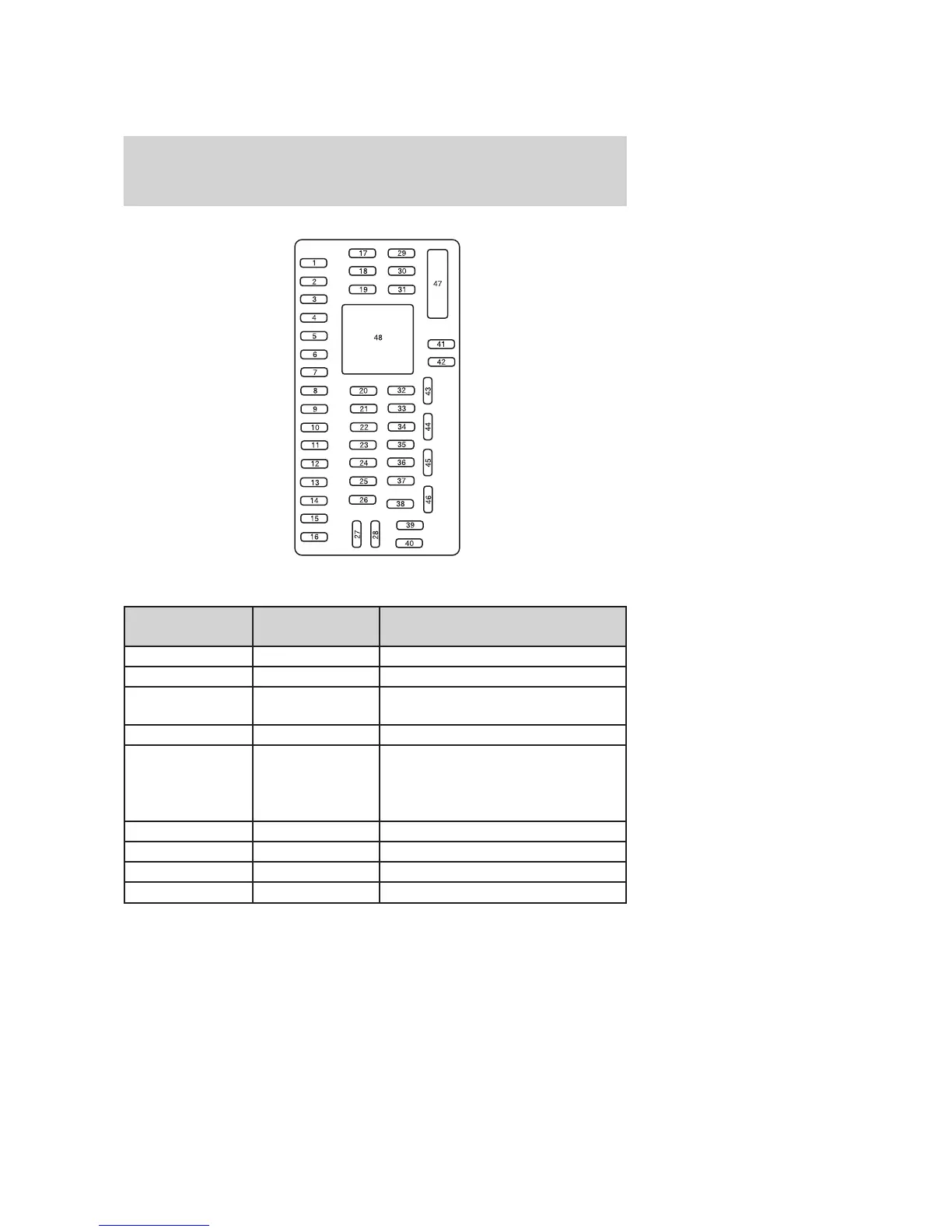

The fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
1 30A Not used (Spare)
2 15A Not used (Spare)
3 15A Family entertainment system
(FES)/ Rear seat control, SYNC
4 30A Driver front smart window
5 10A Keypad illumination, 2nd row
seat, Tire Pressure Monitoring
System (TPMS), Brake Shift
Interlock (BSI)
6 20A Turn signals
7 10A Low beam headlamps ( left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
