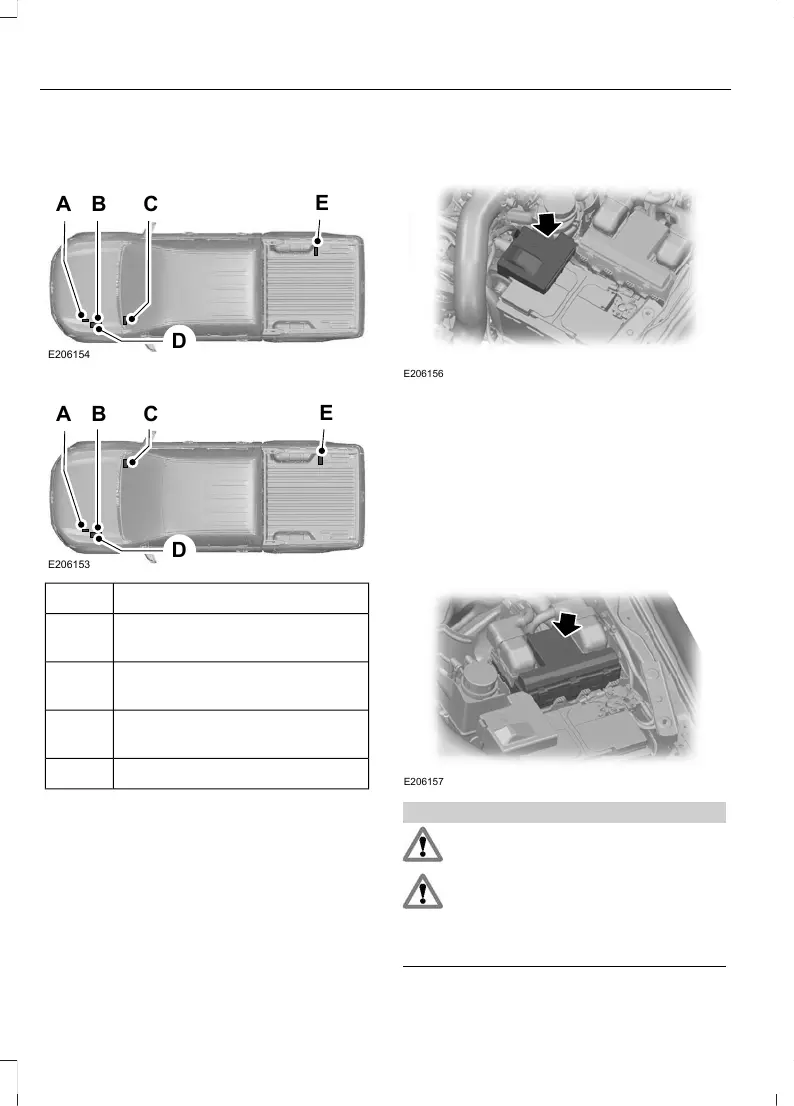

FUSE BOX LOCATIONS
Left-Hand Drive
A
D
CB
E206154
E
Right-Hand Drive
A
D
CB
E206153
E
Pre-fuse box.A
Engine compartment fuse box.
(Power Distribution Box - PDB).
B
Passenger compartment fuse
box.
C
High current fuse box (below
the PDB).
D
Auxiliary fuse box (if equipped).E
Pre-fuse Box
E206156
Your vehicle has a pre-fuse box located in
the engine compartment attached to the
positive battery post. This box contains
several high current fuses. If replacement
of these high current fuses is required, see
an authorized dealer.
Engine Compartment Fuse Box
(Power Distribution Box - PDB)
E206157
WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the
engine compartment fuse box before
reconnecting the battery or refilling fluid
reservoirs.
