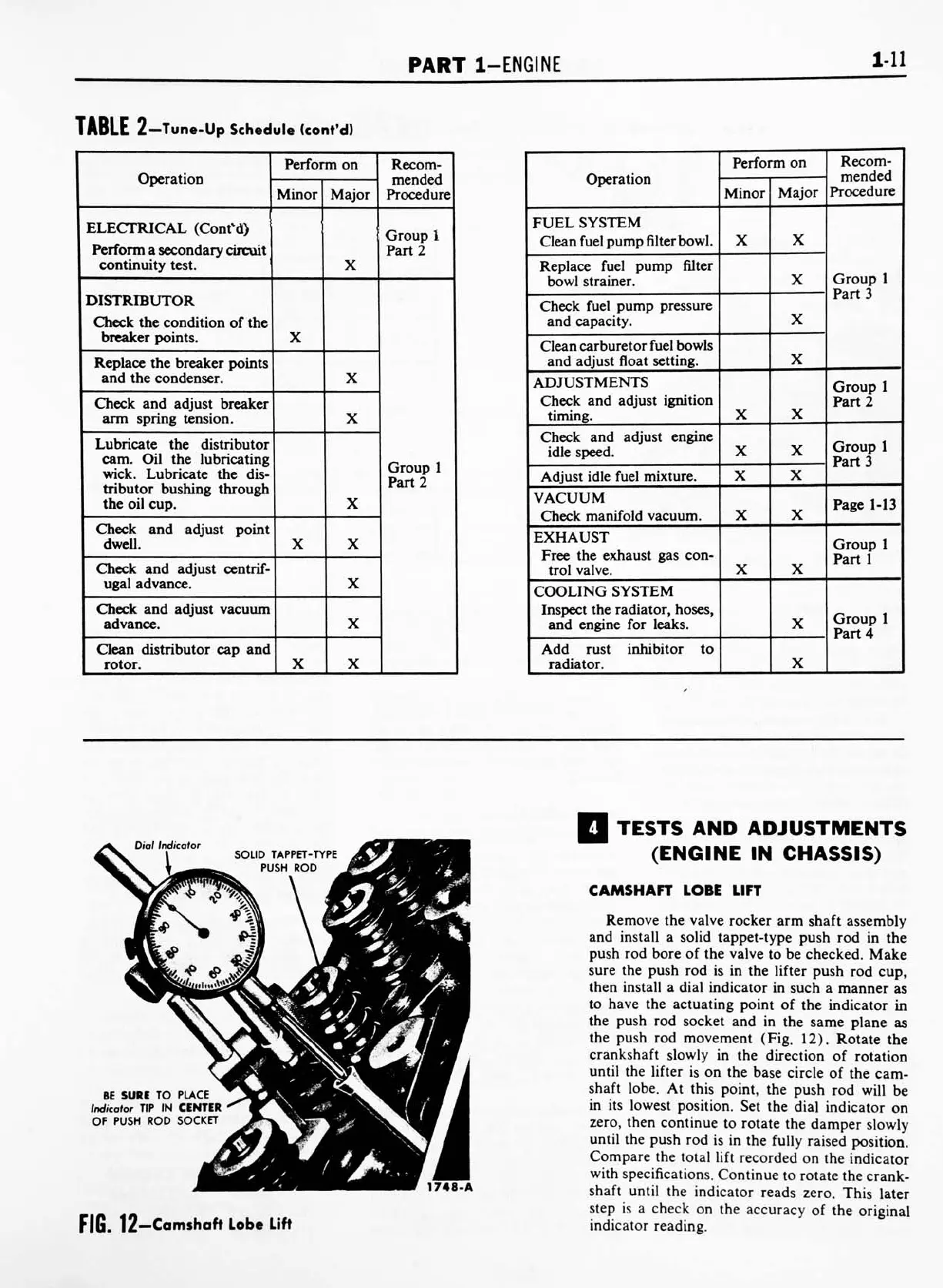

PART
1-ENGINE
1-11
TABLE
2-Tune-Up
Schedule
(cont'd)
Operation
Perform
on
Recom
mended
Procedure
Minor
Major
ELECTRICAL
(Confd)
Perform
a
secondary
circuit
continuity
test.
X
Group
1
Part
2
DISTRIBUTOR
Check
the
condition
of
the
breaker
points.
X
Group
1
Part
2
Replace
the
breaker
points
and
the
condenser.
X
Check
and
adjust
breaker
arm
spring
tension.
X
Lubricate
the
distributor
cam.
Oil
the
lubricating
wick.
Lubricate
the
dis
tributor
bushing
through
the
oil
cup.
X
Check
and
adjust
point
dwell.
X X
Check
and
adjust
centrif
ugal
advance.
X
Check
and
adjust
vacuum
advance.
X
Clean
distributor
cap
and
rotor.
X
X
Operation
Perform
on
Recom
mended
Procedure
Minor
Major
FUEL
SYSTEM
Clean
fuel
pump
filter
bowl.
X
X
Group
1
Part
3
Replace
fuel
pump
filter
bowl
strainer.
X
Check
fuel
pump
pressure
and
capacity.
X
Clean
carburetor
fuel
bowls
and
adjust
float
setting.
X
ADJUSTMENTS
Check
and
adjust
ignition
timing.
X
X
Group
1
Part
2
Check
and
adjust
engine
idle
speed.
X
X
Group
1
Part
3
Adjust
idle
fuel
mixture.
X
X
VACUUM
Check
manifold
vacuum.
X
X
Page
1-13
EXHAUST
Free
the
exhaust
gas
con
trol
valve.
X
X
Group
1
Part
1
COOLING
SYSTEM
Inspect
the
radiator,
hoses,
and
engine
for
leaks.
X
Group
1
Part
4
Add
rust
inhibitor
to
radiator.
X
BE
SURE
TO
PLACE
Indicator
TIP
IN
CENTER
OF
PUSH
ROD
SOCKET
1748-A
FIG.
12-Camshaft
Lobe
Lift
TESTS
AND
ADJUSTMENTS
(ENGINE
IN
CHASSIS)
CAMSHAFT
LOBE
LIFT
Remove
the
valve
rocker
arm
shaft
assembly
and
install
a
solid
tappet-type
push
rod
in
the
push
rod
bore
of
the
valve
to
be
checked.
Make
sure
the
push
rod
is
in
the
lifter
push
rod
cup,
then
install
a
dial
indicator
in
such
a
manner
as
to
have
the
actuating
point
of
the
indicator
in
the
push
rod
socket
and
in
the
same
plane
as
the
push
rod
movement
(Fig.
12). Rotate
the
crankshaft
slowly
in
the
direction
of
rotation
until
the
lifter
is
on
the
base
circle
of
the
cam
shaft
lobe.
At
this
point,
the
push
rod
will
be
in
its
lowest
position.
Set
the
dial
indicator
on
zero,
then
continue
to
rotate
the
damper
slowly
until
the
push
rod
is
in
the
fully
raised
position.
Compare
the
total
lift
recorded
on
the
indicator
with
specifications.
Continue
to
rotate
the
crank
shaft
until
the
indicator
reads
zero.
This
later
step
is
a
check
on
the
accuracy
of
the
original
indicator
reading.
