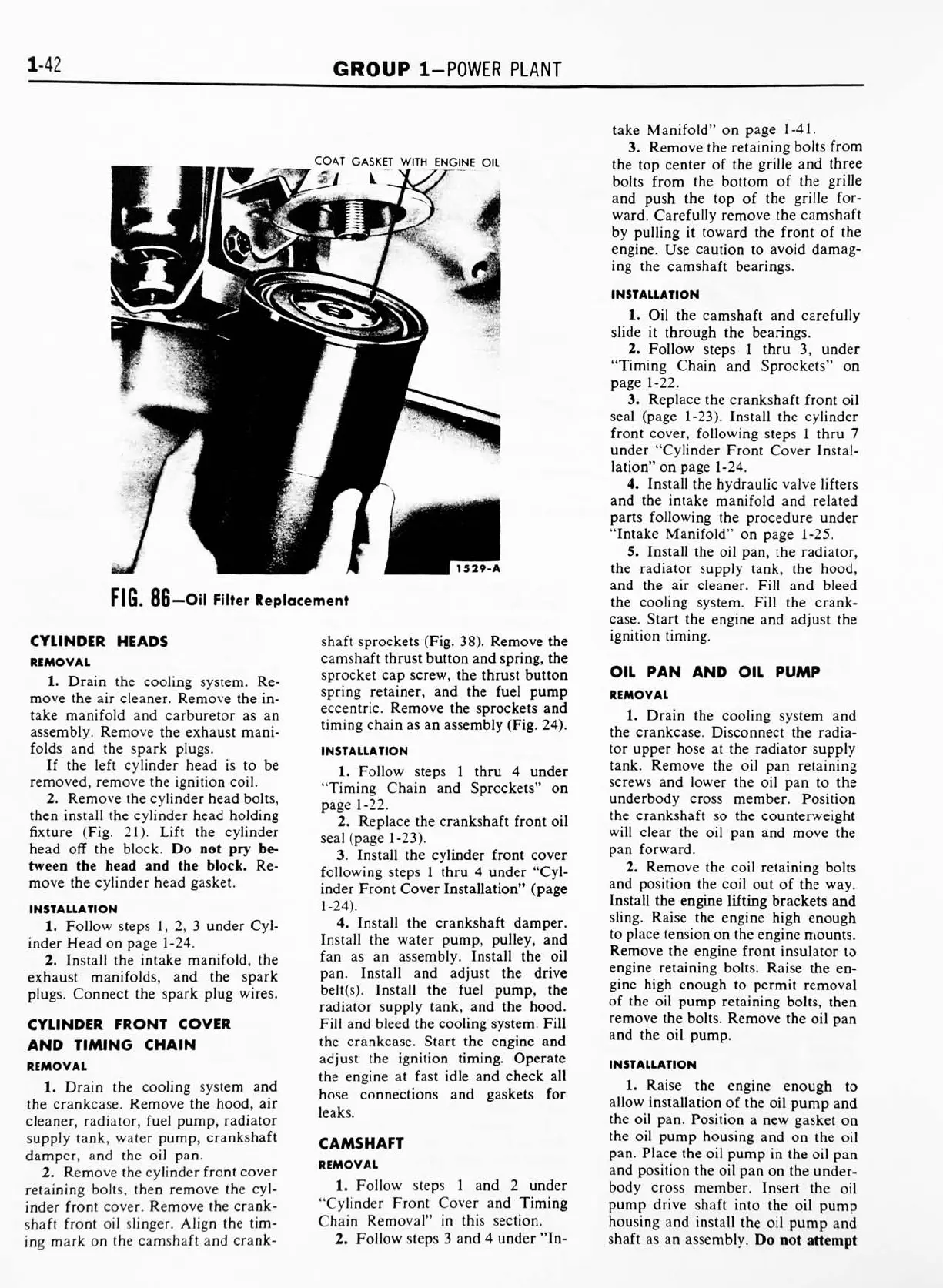

1-42
GROUP
1-POWER
PLANT
COAT
GASKET
WITH
ENGINE
OIL
FIG.
86
Oil
Filter
Replacement
CYLINDER
HEADS
REMOVAL
1.
Drain
the
cooling
system.
Re
move
the
air
cleaner.
Remove
the
in
take
manifold
and
carburetor
as
an
assembly.
Remove
the
exhaust
mani
folds
and
the
spark
plugs.
If
the
left
cylinder
head
is
to
be
removed,
remove
the
ignition
coil.
2.
Remove
the
cylinder
head
bolts,
then
install
the
cylinder
head
holding
fixture
(Fig.
21).
Lift
the
cylinder
head
off
the
block.
Do
not
pry
be
tween
the
head
and
the
block.
Re
move
the
cylinder
head
gasket.
INSTALLATION
1.
Follow
steps
1,
2,
3
under
Cyl
inder
Head
on
page
1-24.
2.
Install
the
intake
manifold,
the
exhaust
manifolds,
and
the
spark
plugs.
Connect
the
spark
plug
wires.
CYLINDER
FRONT
COVER
AND
TIMING
CHAIN
REMOVAL
1.
Drain
the
cooling
system
and
the
crankcase.
Remove
the
hood,
air
cleaner,
radiator,
fuel
pump,
radiator
supply
tank,
water
pump,
crankshaft
damper,
and
the
oil
pan.
2. Remove
the
cylinder
front
cover
retaining
bolts,
then
remove
the
cyl
inder
front
cover.
Remove
the
crank
shaft
front
oil
slinger.
Align
the
tim
ing
mark
on
the
camshaft
and
crank
shaft sprockets
(Fig.
38).
Remove
the
camshaft
thrust
button
and
spring,
the
sprocket
cap
screw,
the
thrust
button
spring
retainer,
and
the
fuel
pump
eccentric.
Remove
the
sprockets
and
timing
chain
as
an
assembly
(Fig.
24).
INSTALLATION
1.
Follow
steps
1
thru
4
under
"Timing
Chain
and
Sprockets"
on
page
1-22.
2.
Replace
the
crankshaft
front
oil
seal
(page
1-23).
3.
Install
the
cylinder
front
cover
following
steps
1
thru
4
under
"Cyl
inder
Front
Cover
Installation"
(page
1-24).
4.
Install
the
crankshaft
damper.
Install
the
water
pump,
pulley,
and
fan
as
an
assembly.
Install
the
oil
pan.
Install
and
adjust
the
drive
belt(s).
Install
the
fuel
pump,
the
radiator
supply
tank,
and
the
hood.
Fill
and
bleed
the
cooling
system.
Fill
the
crankcase.
Start
the
engine
and
adjust
the
ignition
timing.
Operate
the
engine
at
fast
idle
and
check
all
hose
connections
and
gaskets
for
leaks.
CAMSHAFT
REMOVAL
1.
Follow
steps
1
and
2
under
"Cylinder
Front
Cover
and
Timing
Chain
Removal"
in
this
section.
2.
Follow
steps
3
and
4
under
"In
take
Manifold"
on
page
1-41.
3.
Remove
the
retaining
bolts
from
the
top
center
of
the
grille
and
three
bolts
from
the
bottom
of
the
grille
and
push
the
top
of
the
grille
for
ward.
Carefully
remove
the
camshaft
by
pulling
it
toward
the
front
of
the
engine.
Use
caution
to
avoid
damag
ing
the
camshaft
bearings.
INSTALLATION
1.
Oil
the
camshaft
and
carefully
slide
it
through
the
bearings.
2.
Follow
steps
1
thru
3,
under
"Timing
Chain
and
Sprockets"
on
page
1-22.
3.
Replace
the
crankshaft
front
oil
seal
(page
1-23).
Install
the
cylinder
front
cover,
following
steps
1
thru
7
under
"Cylinder
Front
Cover
Instal
lation"
on
page
1-24.
4.
Install
the
hydraulic
valve
lifters
and
the
intake
manifold
and
related
parts
following
the
procedure
under
"Intake
Manifold"
on
page
1-25.
5.
Install
the
oil
pan,
the
radiator,
the
radiator
supply
tank,
the
hood,
and
the
air
cleaner.
Fill
and
bleed
the
cooling
system.
Fill
the
crank
case.
Start
the
engine
and
adjust
the
ignition
timing.
OIL
PAN
AND
OIL
PUMP
REMOVAL
1.
Drain
the
cooling
system
and
the
crankcase.
Disconnect
the
radia
tor
upper
hose
at
the
radiator
supply
tank.
Remove
the
oil
pan
retaining
screws
and
lower
the
oil
pan
to
the
underbody
cross
member.
Position
the
crankshaft
so
the
counterweight
will
clear
the
oil
pan
and
move
the
pan
forward.
2.
Remove
the
coil
retaining
bolts
and
position
the
coil
out
of
the
way.
Install
the
engine
lifting
brackets
and
sling.
Raise
the
engine
high
enough
to
place
tension
on
the
engine
mounts.
Remove
the
engine
front
insulator
to
engine
retaining
bolts.
Raise
the
en
gine
high
enough
to
permit
removal
of
the
oil
pump
retaining
bolts,
then
remove
the
bolts.
Remove
the
oil
pan
and
the
oil
pump.
INSTALLATION
1.
Raise
the
engine
enough
to
allow
installation
of
the
oil
pump
and
the
oil
pan.
Position
a
new
gasket
on
the
oil
pump
housing
and
on
the
oil
pan.
Place
the
oil
pump
in
the
oil
pan
and
position
the
oil
pan
on
the
under
body
cross
member.
Insert
the
oil
pump
drive
shaft
into
the
oil
pump
housing
and
install
the
oil
pump
and
shaft
as
an
assembly.
Do
not
attempt
