Working with program levels

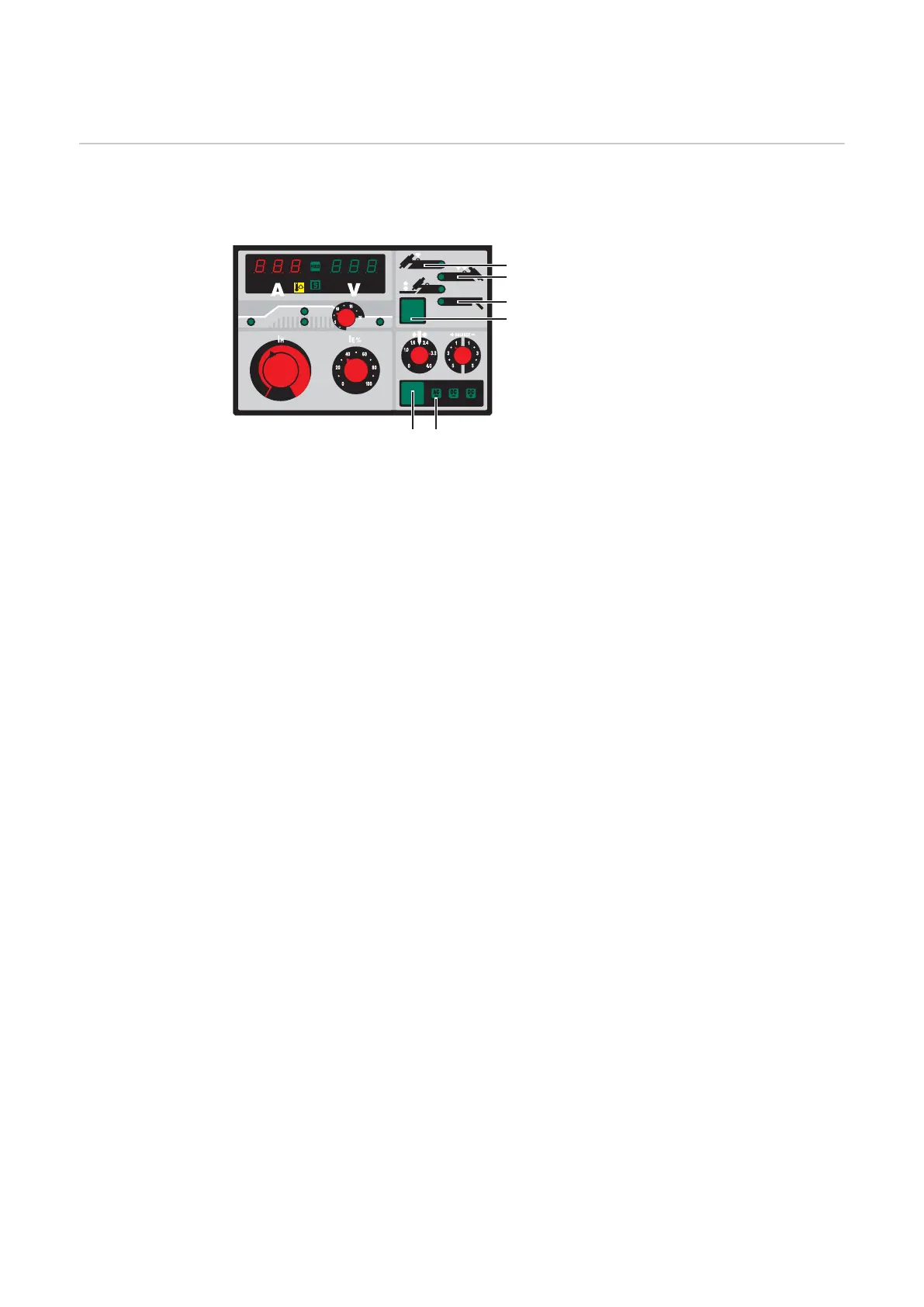

Overview The following figure shows an overview of the welding parameter settings in the program
level preferences, using the MagicWave control panel as an example. A detailed descrip-
tion of these settings can be found in the following chapters.
1. Setup parameters for rod electrode:
Hti ...... Hot current time
HCU ... HotStart current
dYn .... Dynamic correction
PRO ... Save program
FAC ... Reset welding system
2. Mode button
3. Process button
4. TIG welding parameters:
GAS... Gas pre-flow
G-L .... Gas post-flow at minimum welding current
G-H.... Gas post-flow at maximum welding current
UPS... UpSlope
SCU... Starting current in % of IH
I3 ....... Lowering current
HFt .... High frequency
SCU... Starting current rel/abs
StS..... Special 2-step mode
SFS ... Special 4-step mode
C-C.... Cooling unit control
E-S .... Power source shutdown
PRO ... Save program
FAC ... reset
5. TIG AC:
like operating mode TIG DC
