FS S2800S Series - Grounding the Switch

IN:100-240V AC 50-60Hz
4 65
87
109 1211
1413
1615
2019
2221
2423
1817
SFP
Grounding the Switch

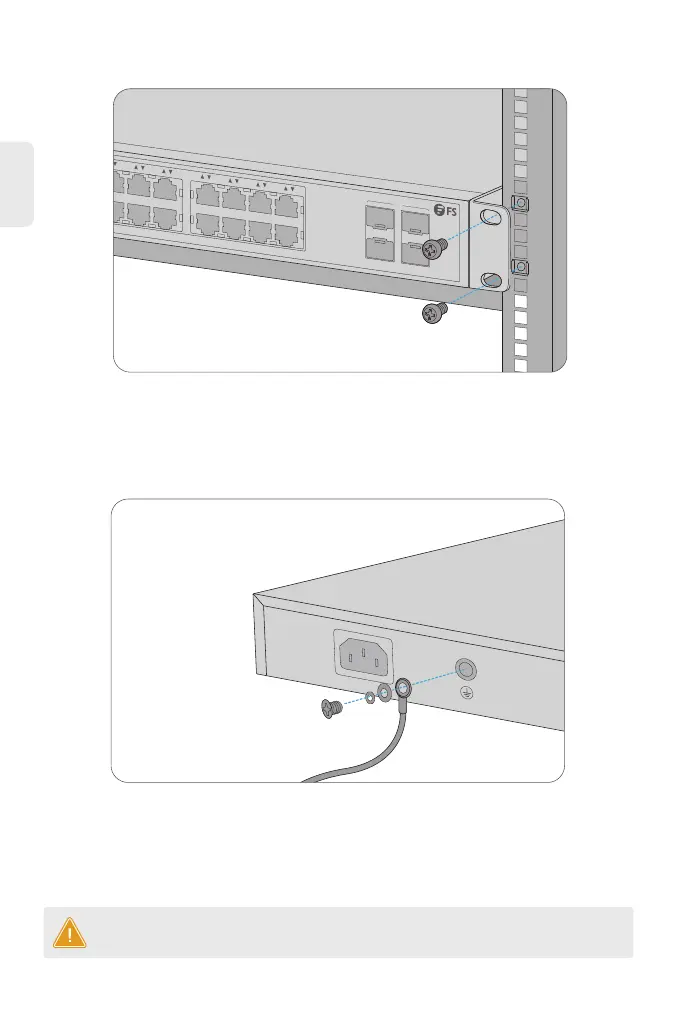

2. Attach the switch to the rack using four M6 screws and cage nuts.
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the
switch is mounted.
2. Secure the grounding lug to the grounding point on the switch back panel with the washers and
screws.
CAUTION: The earth connection must not be removed unless all supply connections have
been disconnected.
10
EN
