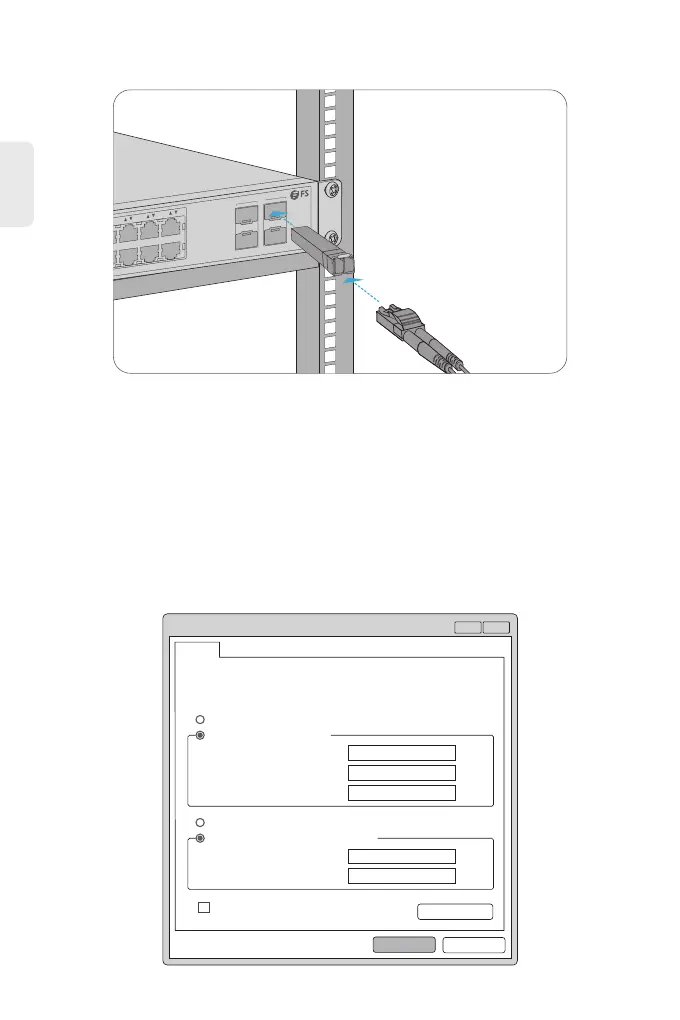

Connecting the SFP Ports
1. Plug the compatible SFP transceiver into the SFP port.
2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to
another ber device.
109
1211
1413
1615
2019
2221
2423
1817
SFP
Conguring the Switch Using the Web-based Interface
Conguring the Switch
Step 1: Connect the computer to any RJ45 port of the switch using the network cable.
Step 2: Set the IP address of the computer to 192.168.1.x. (“x” is any number from 2 to 254.)
?
x
OK Cancel
General
IP a dd ress:
Subn et ma sk :
Default ga te way :
You can get IP settings assigned automatically if your network
supports this capability. Otherwise, you need to ask your network
administrator for the appropriate IP settings.
Internet Protocol Version 4 (TCP/IPv4) Properties
Use the fo llowing IP addr es s:
Obtain an IP addr ess au to ma tical ly
Preferred DNS server:
Alternate DNS server:
Validate settings upon exit
Adv ance d...
. . .
21168192
0255
255255
. . .
. . .
. . .
. . .
Obtain DNS ser ve r a ddress a ut omat ic ally
Use the fo llowing DNS se rver ad dr esses:
EN
12
To Next Page
