Paper Jams at the Tri-fold Output Tray [2d] and the Handle [2g]
1

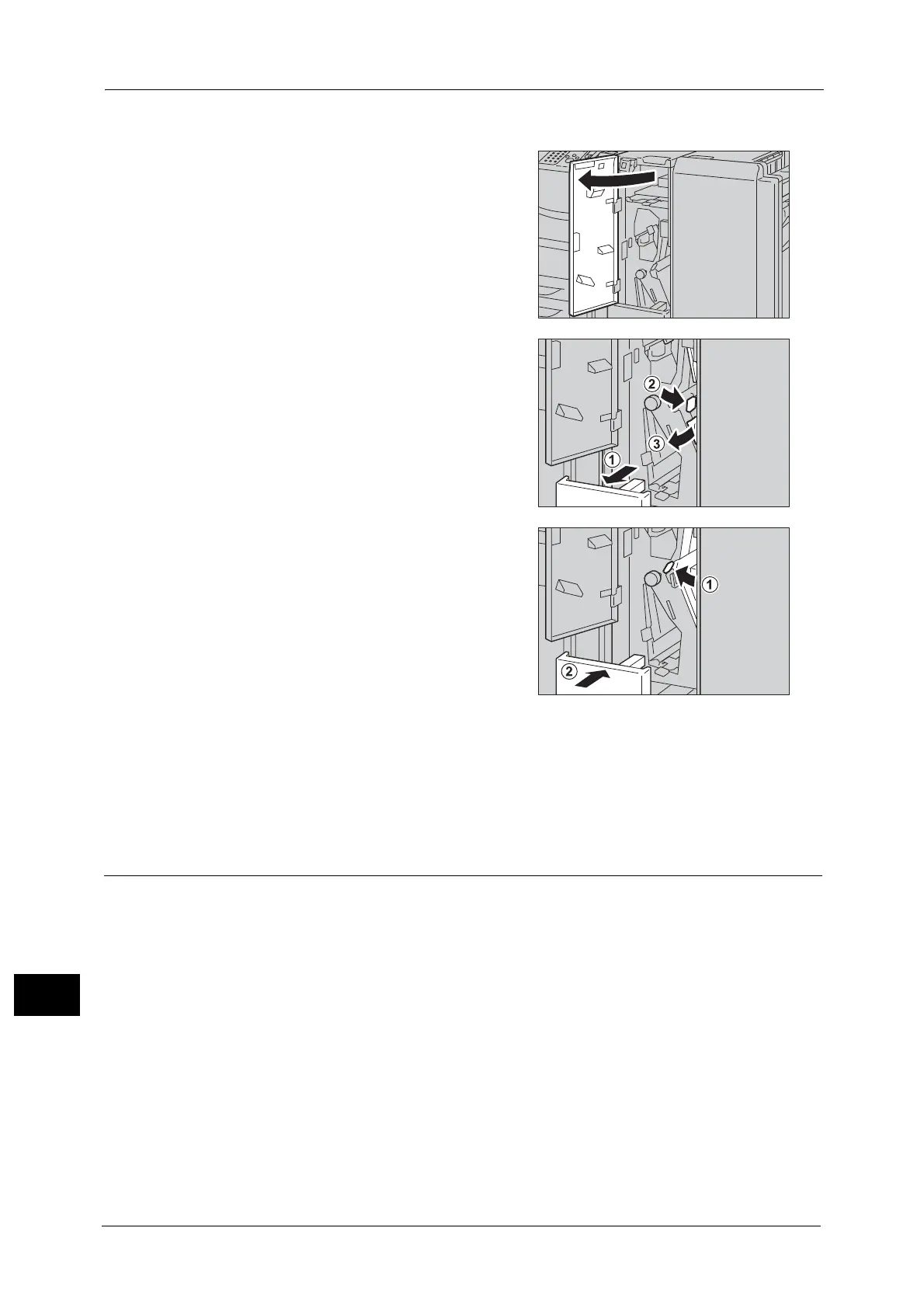

Make sure that the machine has stopped, and
open the folder unit door of the Folder Unit
CD1.
2 Pull out the Tri-fold output tray [2d] (1), and
move the handle [2g] to the right (2). Remove
the jammed paper (3).
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
3 Return the handle [2g] (1), and push the Tri-
fold output tray [2d] in (2).
4 Close the folder unit door of the Folder Unit CD1.
Note • A message will be displayed and the machine will not operate if the folder unit door of the Folder
Unit CD1 is even slightly open.
Paper jams in the D2-Staple-Finisher and the D2-Staple-Finisher with Booklet
Maker (Optional)
The following describes how to clear paper jam occurring in the D2-Staple-Finisher
(optional) and the D2-Staple-Finisher with Booklet Maker (optional).
This section describes how to clear paper jams at the following locations:
Paper Jams in the Tray T1 (Inserter) ...................................................................................................................................... 575
Paper Jams at the Handle [1a] and the Knob [1c] .............................................................................................................. 575
Paper Jams at the Handle [1d]................................................................................................................................................. 576
Paper Jams at the Handle [1b]................................................................................................................................................. 577
Paper Jams at the Handle [3b] and [3d] ............................................................................................................................... 578
Paper Jams at the Handle [3e] and the Knob [3c] .............................................................................................................. 578
Paper Jams at the Handle [3g] and the Knob [3f] .............................................................................................................. 579
Paper Jams at the Handle [4b] and the Knob [3a].............................................................................................................. 580
Paper Jams at the Handle [2a] and the Knob [3a] when D2 Folder-Unit is Installed ................................................ 581
Paper Jams at the Handle [2b] and the Knob [2c] when D2-Folder Unit is Installed................................................. 581
