2-2 TEST RUNNING METHOD
When EE : EE blinks at the current time display, there
is an error inside the air conditioner. If the SET TIME
button ( ) and SET TEMP.
DAY button ( ) are pressed
simultaneously for more than three seconds, the self
diagnosis check will start and the error contents will
be displayed at the current time display. In addition,
the remote controller address will be displayed below.
When the oper ation lamp
lights, press the START/STOP button and after
operation lamp goes off, perform the same operation.
SET
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
OP
SET
D
ZONE
ENERG
COOL
CLOCK
C
NON STOP
TEST
Supply power to the crankcase heater for 12 hours prior to the start of operation in the winter.
The following is the procedure for the test operation.
If the test operation is to be done for cooling operation, set DIP switch (SW-1-1) to on. If the test operation is to be done for heating,
set DIP switch (SW1-2) to on.

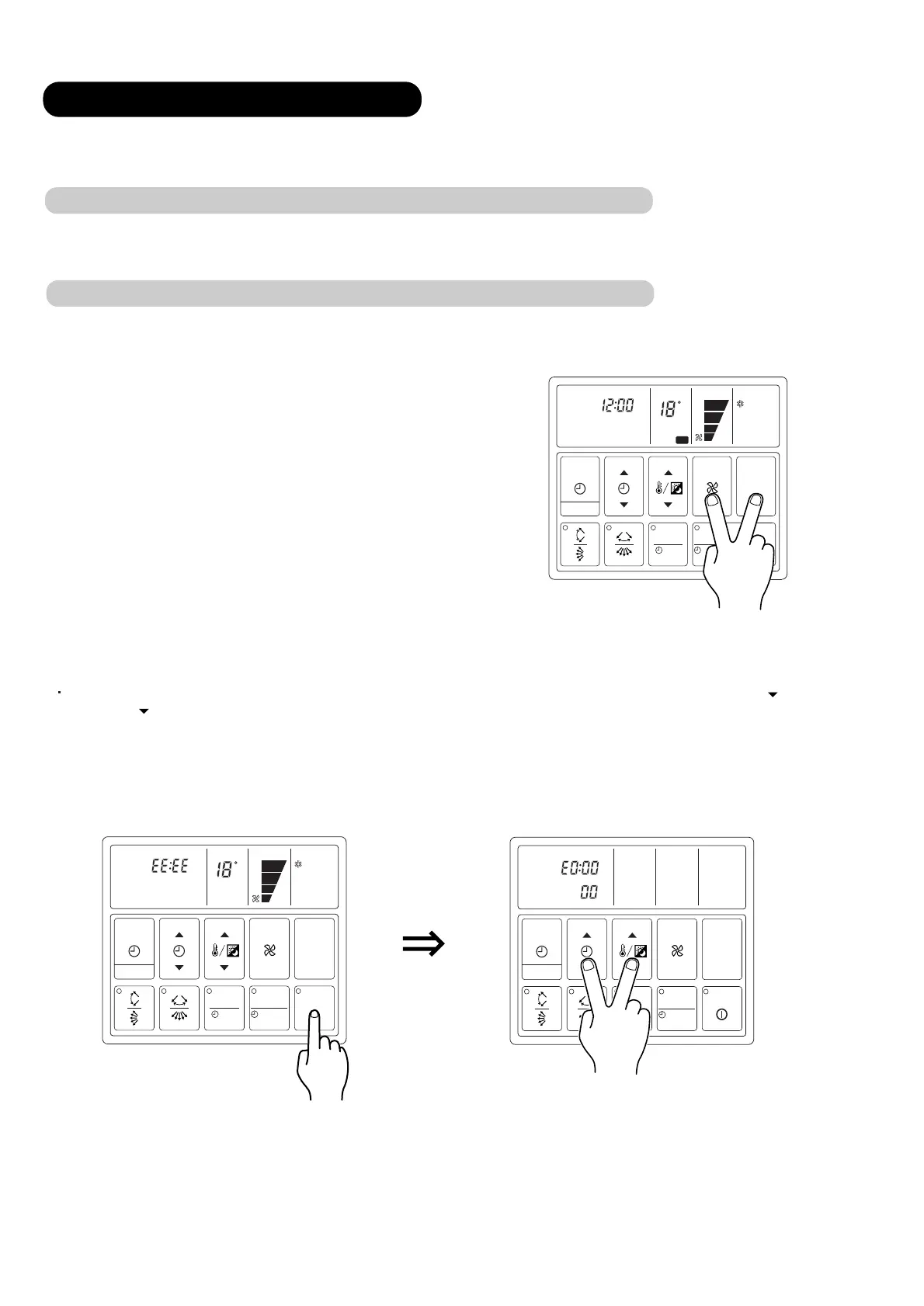

(1) Standard wired remote controller
For test running, when the remote controller FAN CONTROL
button and MASTER CONTROL button are pressed simulta-
neously for more than three seconds when the air conditioner is
not running, the air conditioner starts and TEST is displayed on
the remote controller display.
However, the SET TEMP./DAY setting button does not function,
but all other buttons, displays, and protection functions operate.
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET DAY OFF
ZONE ENERGY SAVE
COOL
CLOCK
C
NON STOP
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET DAY OFF
ZONE ENERGY SAVE
Stop operation
SET
2-2-1 OUTDOOR PC BOARD
2-2-2 TEST OPERATION USING REMOTE CONTROLLER
– 20 –
