Instructions relating to heating (∗) are applicable only to "HEAT &
COOL MODEL" (Reverse Cycle).
Begin air conditioner operation before performing this procedure.

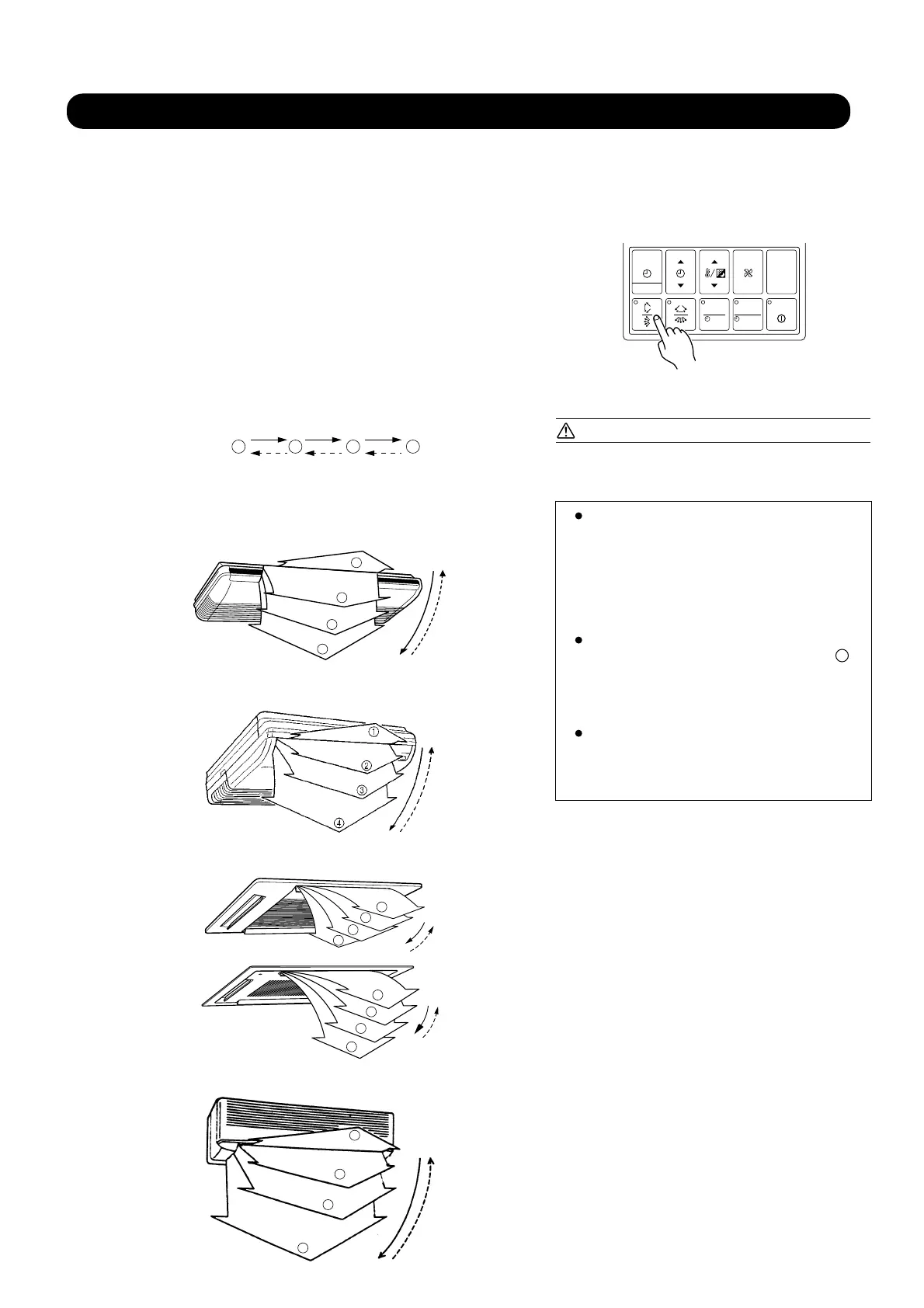

Vertical Air Direction Adjustment
This instructions are applicable to "CEILING SUSPENSION
TYPE", "FLOOR CONSOLE/UNDER CEILING DUAL TYPE"
"CASSETTE TYPE", and "WALL MOUNTED TYPE".
Press the VERTICAL AIR FLOW DIRECTION SET button.
Each time the button is pressed, the air direction range will
change as follows:
■ CEILING SUSPENSION TYPE
The remote controller's display does not change.
■ FLOOR CONSOLE/UNDER CEILING DUAL TYPE
■ CASSETTE TYPE
Example : When set to vertical air direction.
Always use the remote controller's AIR
FLOW DIRECTION button to adjust the
UP/DOWN air direction flap or RIGHT/
LEFT air direction louvers. Attempting to
move them manually could result in
improper operation; in this case, stop oper-
ation and restart. The flaps should begin to
operate properly again.
During use of the Cooling mode, do not set
the UP/DOWN air direction flap in the 4
position for long periods of time, since
water vapor may condense near the outlet
port and drops of water may drip from the
air conditioner.
When used in a room with infants, chil-
dren, elderly or sick persons, the air direc-
tion and room temperature should be con-
sidered carefully when making settings.
Never place fingers or foreign objects inside the
outlet port could cause personal injury.
(1) ADJUSTING THE DIRECTION OF AIR CIRCULATION
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET
DAY OFF
ZONE
ENERGY SAVE
■ WALL MOUNTED TYPE
1 2 3 4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
– 71 –
6-4 LOUVER CONTROL
To Next Page
