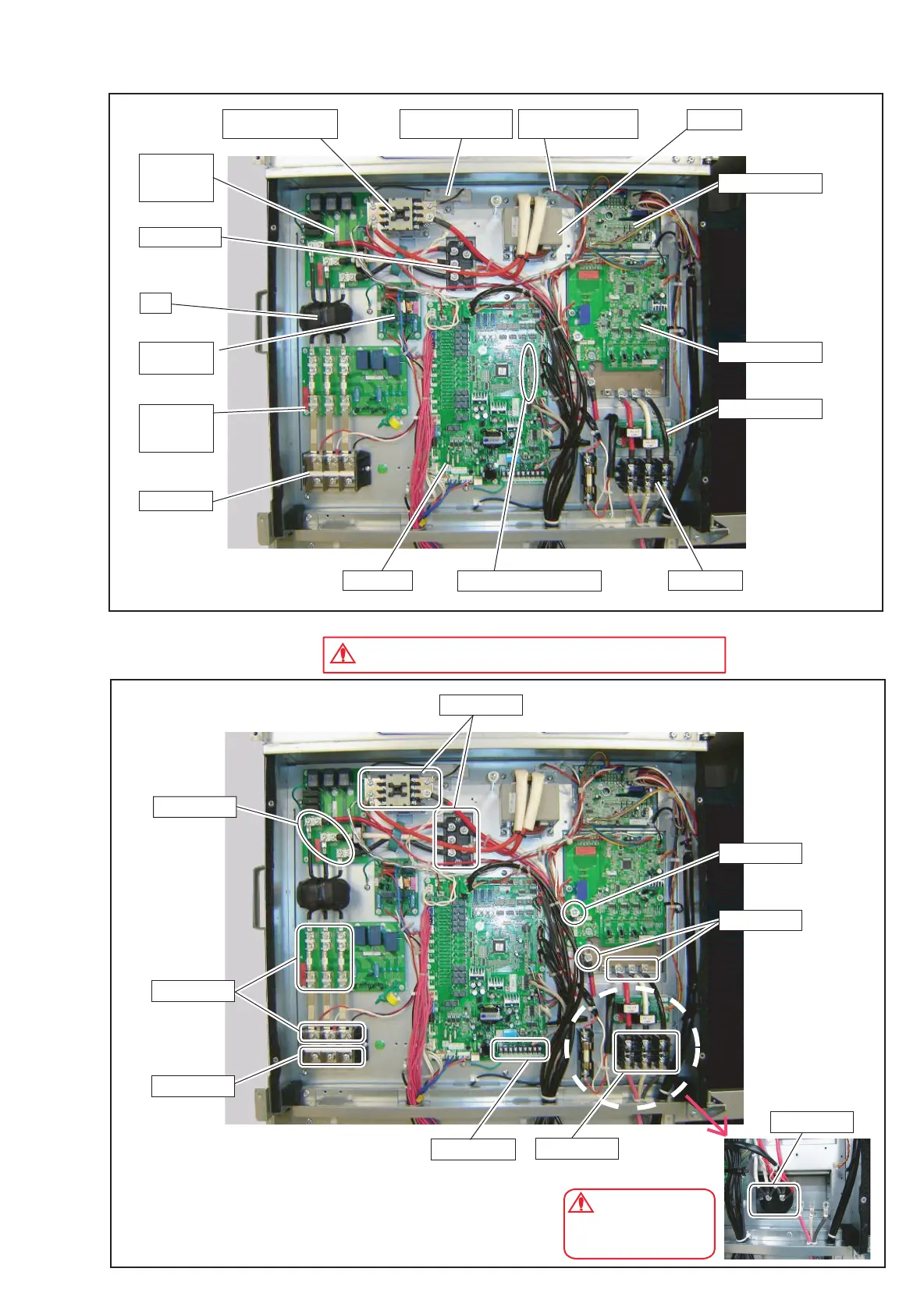

4. Layout plan in CONTROL BOX
Filter PCB
(1 phase)
Filter PCB
Secondary
(3 phase)
Filter PCB
Primary
(3 phase)
Resistor, cement
(Rush current protection)
Diode Bridge
Reactor
Magnetic Relay
(Rush current protection)
Resistor, cement
(Discharge from capacitor)
Terminal
Terminal
Main PCB
Communication PCB
06-03
Fan driver PCB
Inverter PCB
Phase CT PCB
5. Screw tightening torque
DANGER
There is danger to which a fire and the capacitor explosion break out in
the market if it does not assemble it with a regulated torque.
5.0 ~7.0N m
.
2.4 +0.1N m
-
.
2.4 +0.1N m
-
.
2.4 +0.1N m
-
.
0.5 ~0.6N m
.
2.4 +0.1N m
-
.
1.5 +0.1N m
-
.
2.4 +0.1N m
-
.
Coil
2.4 +0.1N m
-
.
DANGER
Orientation of the capacitor,
Please be installed in the left side
and the (-) side always.
To Next Page
