7. Inverter PCB removal
06-05

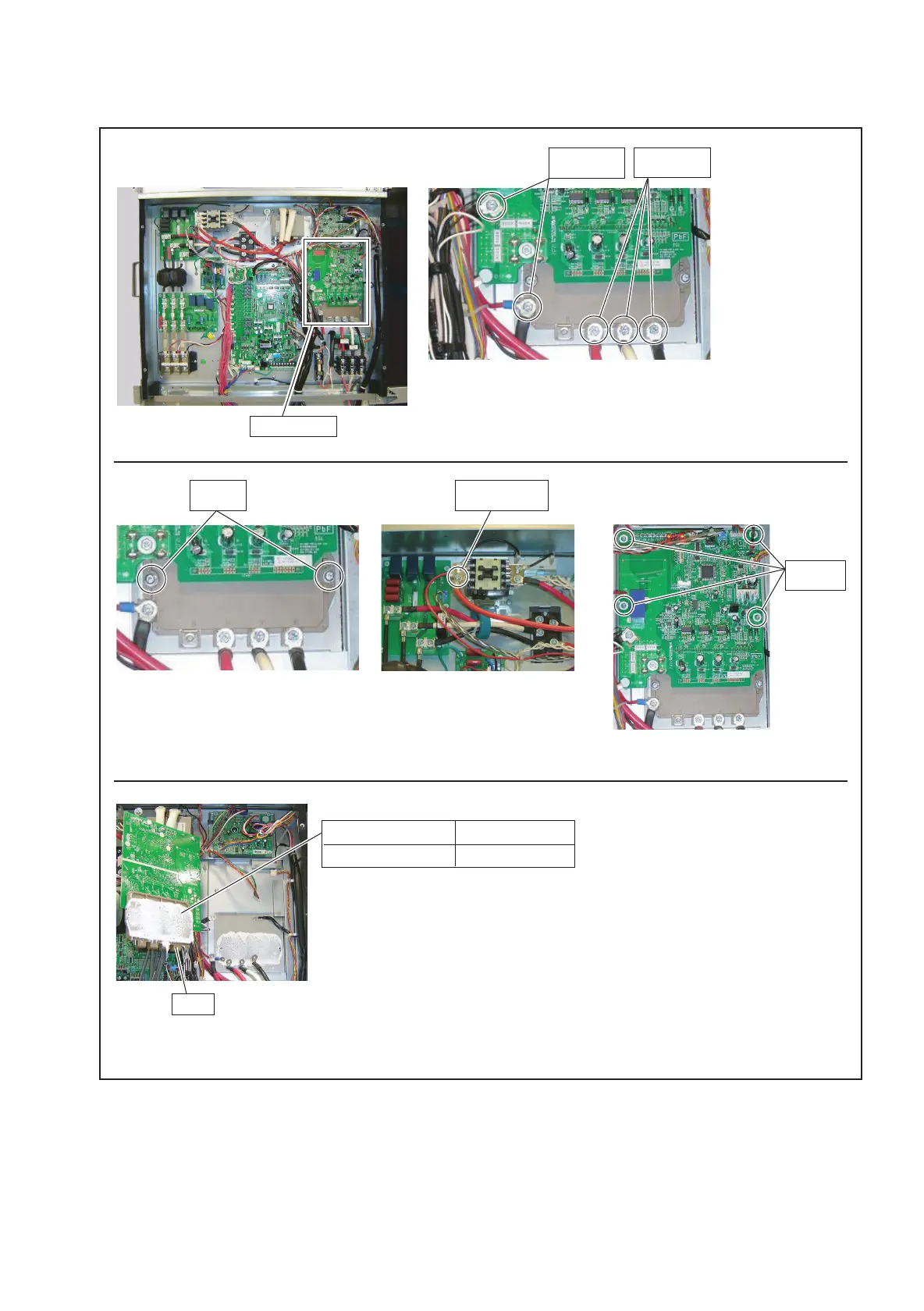

Remove the 5 mounting screws and codes.
Remove the connectors
and spacers.
HEAT SINKER(20g) 0000036795
Service Parts No.
Parts Name
Remove the 2 mounting screws.
Note the tightening torque at the installation.
Tightening torque is as follows.
- Temporary tightening : 0.3 +0.1N m
- Final tightening : 1.5 +0.1N m
Compound
Inverter PCB
Screws
(For Capacitor)
Screws
(For CT PCB)
Screws
(For IPM)
IPM
Spacers
(4 places)
-
-
.
.
Spread the heat dissipation compound on the other side of IPM
when you exchange Inverter PCB by the repair.
Remove the mounting screw
and code.
Screws
(For Magnetic relay)
To Next Page
