15. Fan motor removal
16. Comp box cover removal
06-09

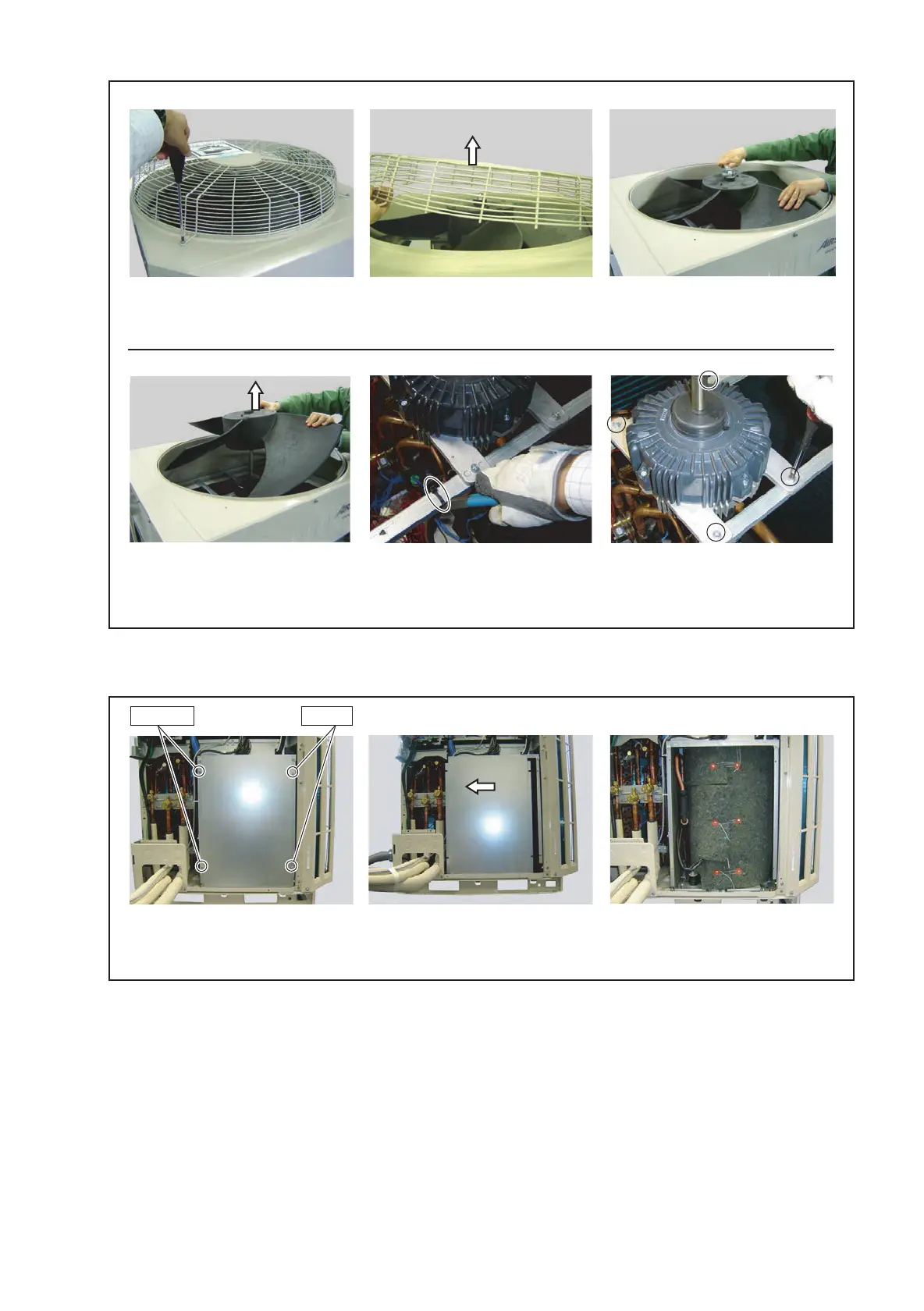

Remove the Propeller fan. Remove the 4 mounting screws.
Remove the Fan motor.
Loose the 2 mounting screws.
Remove the 2 mounting screws.
Remove the Comp box cover
by sliding leftward and toward.
Cut the cable tie.
Remove the Fan Guard. Remove the nut.
Note the tightening torque at the installation.
Tightening torque is from 15 to 20N m.
.
Note at the installation.
Insert propeller fan and motor shaft reference
D cutting position.
Loose
Remove
