Fujitsu AOU36RLX Service Instruction

02-03
Run [Self-Diagnosis] if [E:EE] flashes on the clock display of the remote controller.
When the error indication "E:EE" is displayed, inspection of the air conditioning system is necessary.
Please consult authoilzed servise personnel.
Ex. Self-diagnosis
Error code
SU MO TU WE TH FR SA
DAY OFF
DELETE SET
ENERGY
SAVE
SET BACK
DAY
CLOCK ADJUST
Display
DAY OFF
DELETE SET
ENERGY
SAVE
SET BACK
DAY
CLOCK ADJUST
SET

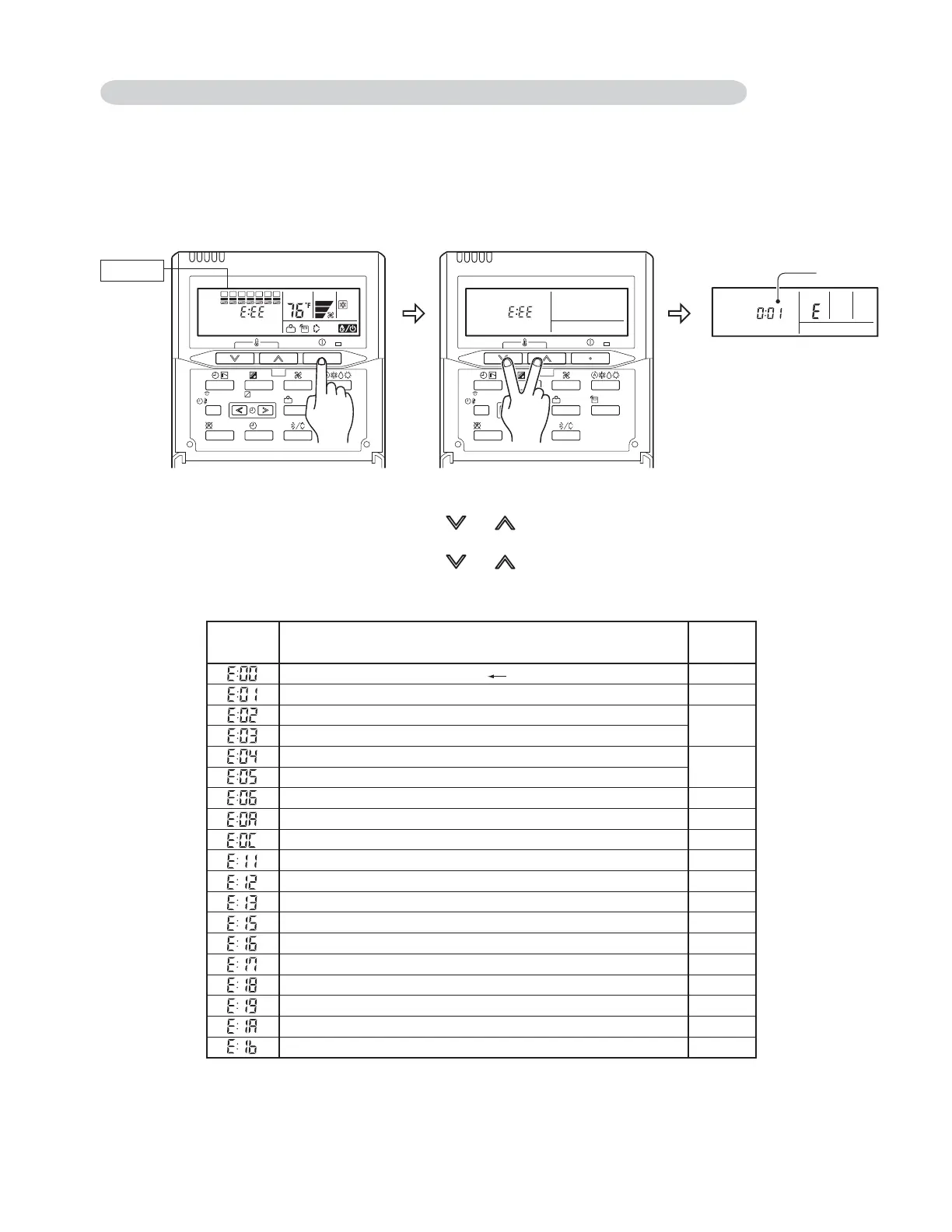

1. Stop the air conditioner operation.
2. Press the SET TEMPERATURE buttons and simultaneously for 5 seconds or more
to start the self-diagnosis.
3. Press the SET TEMPERATURE buttons and simultaneously for 5 seconds or more
or there is no key input for 20 seconds to stop the self-diagnosis.
SU MO TU WE TH FR SA
2-1-3 WIRED REMOTE CONTROLLER DISPLAY (optional parts)
THERMO
SENSOR
1. SELF - DIAGNOSIS
Error code
Error contents
Trouble
shooting
Communication error (Serial reverse transfer error)
Room temperature sensor open
Room temperature sensor short-circuited
Indoor heat exchanger temperature sensor open
Indoor heat exchanger temperature sensor short-circuited
Outdoor heat exchanger temperature sensor error
Outdoor temperature sensor error
Outdoor discharge pipe temperature sensor error
Indoor EEPROM abnormal (Model No.)
Indoor fan motor abnormal
Outdoor unit fan motor error
Outdoor communication signal error (Forward transfer signal error)
Pressure switch error
Active filter module (AFM) error
CT error
Communication error (indoor unit remote control)
IPM error
Compressor rotor location cannot detect (permanent stop)
Compressor temperature sensor error
1
2
5
6
7
8
9
10
11
12
13
14
15
16
17
3
4
