1. INT
AKE GRILLE removal

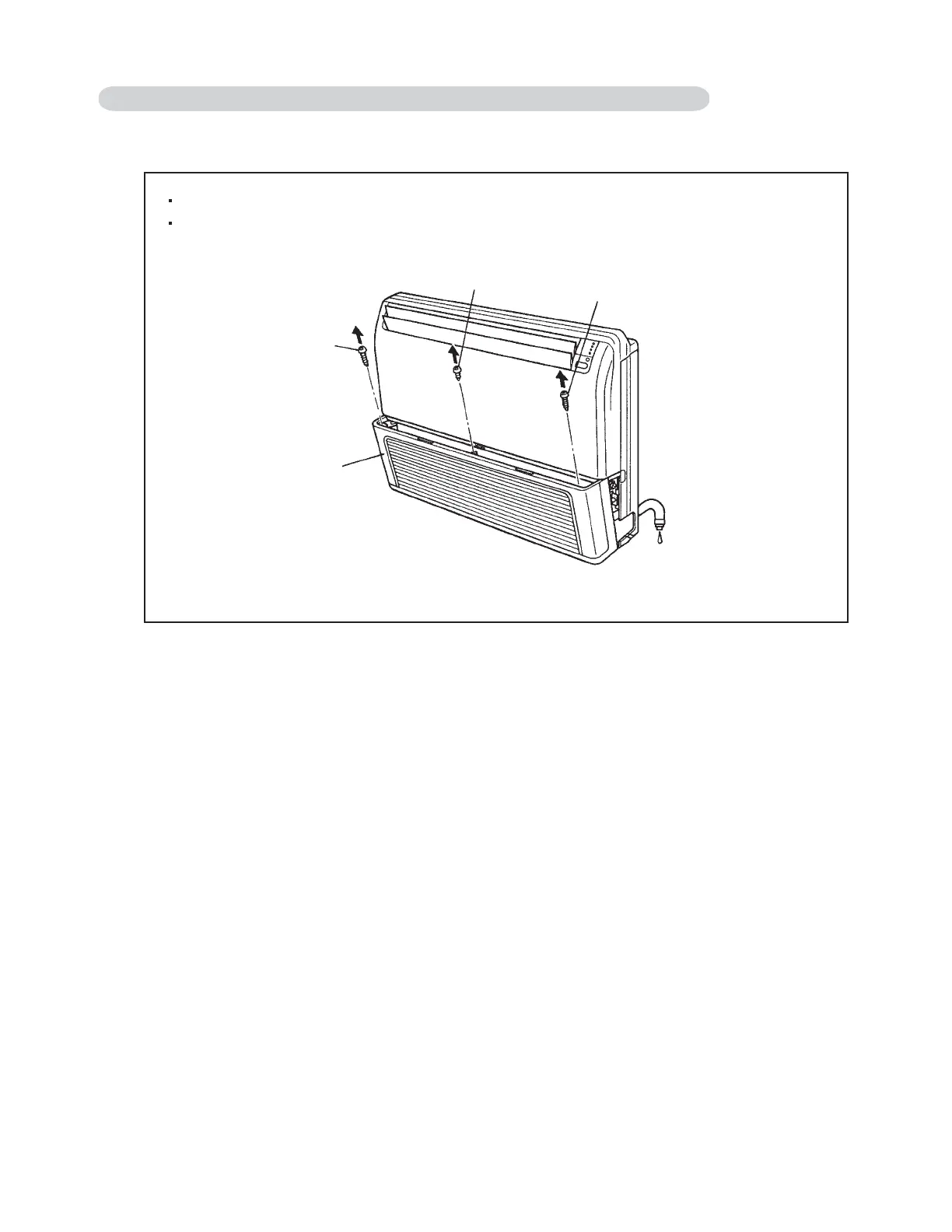

Open the INT
AKE GRILLE and remove the 3 mounting screws.
Remove the INT
AKE GRILLE
INT
AKE GRILLE
T
apping screw
Machine screw
T
apping screw
2. REPLACEMENT PARTS (For INDOOR UNIT)
2-1 PARTS LAYOUT DRAWING ( For ABU18/ 24RULX )
73
75
Table of Contents
Table of Contents
2
Description of each Control Operation
3
Cooling Operation
4
Heating Operation
5
Dry Operation
6
Auto Changeover Operation
7
Indoor Fan Control
8
Outdoor Fan Control
10
Louver Control
11
Compressor Control
13
Timer Operation Control
14
Electronic Expansion Valve Control
18
Test Operation Control
18
Prevent to Restart for 3 Minutes ( 3 Minutes St )
18
Way Valve Extension Select
18
Auto Restart
18
PUMP down ( Refrigerant Collecting Operation )
19
Compressor Preheating
19
Defrost Operation Control
19
Manual Auto Operation
21
Energy Save Function
21
Various Protections
22
Trouble Shooting
25
Error Display
26
Indoor Unit Display
26
Outdoor Unit Display
27
Wired Remote Controller Display
28
Trouble Shooting with Error Code
30
Trouble Shooting with no Error Code
49
Service Parts Information
54
REPLACEMENT PARTS ( for OUTDOOR UNIT )
59
For AOU18/ 24/ 36RLX
60
Parts Layout Drawing
60
Wiring
62
Disassembly Process
63
ASSEMBLY PROCESS of INVERTER UNIT
68
REPLACEMENT PARTS (for INDOOR UNIT)
74
PARTS LAYOUT DRAWING (for ABU18/ 24RULX)
74
PARTS LAYOUT DRAWING (for ABU36RSLX)
79
