Fujitsu ASU9RL2 Design & Technical Manual

3. Installation space
3-1. Models: AOU9RL2 and AOU12RL2
¢
Space requirement

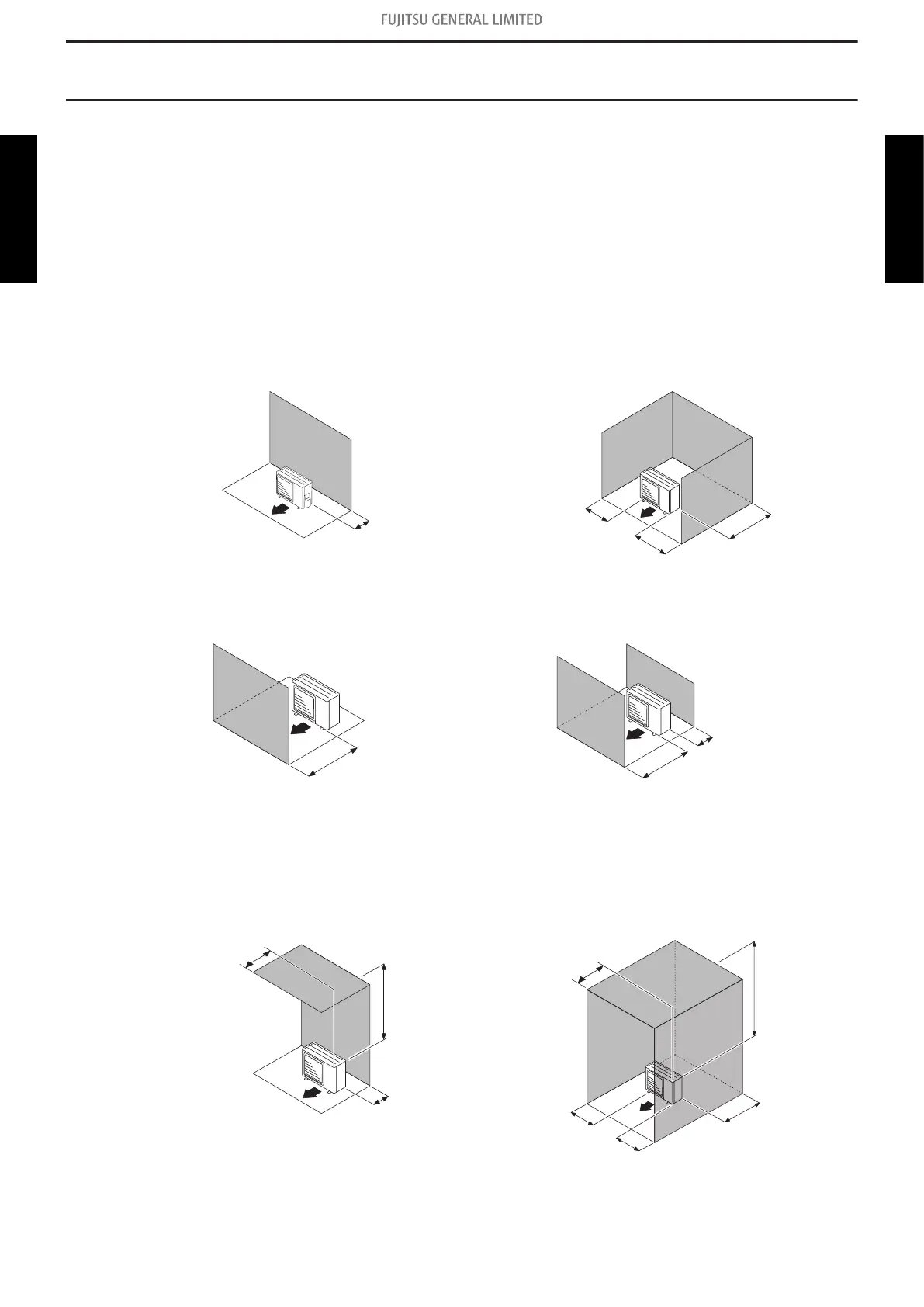

Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: in (mm)
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
4 (100) or more
10 (250) or more
4 (100) or more
4 (100) or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
24 (600) or more
24 (600) or more
4 (100) or more
• When there is an obstruction in the upper space:
Unit: in (mm)
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides,
and above.
4 (100) or more
Max. 7 (200)
24 (600)
or more
24 (600)
or more
4 (100) or more
10 (250) or more
4 (100) or more
Max. 7 (200)
- 28 -
3-1. Models: AOU9RL2 and AOU12RL2
3. Installation space
OUTDOOR UNIT AOU9-12RL2 OUTDOOR UNIT AOU9-12RL2
