4-5
. M
obi
le a
pp
set
tin
g m
eth
od
¢
Air
co
ndi
tio
ner
del
ete
me
tho
d

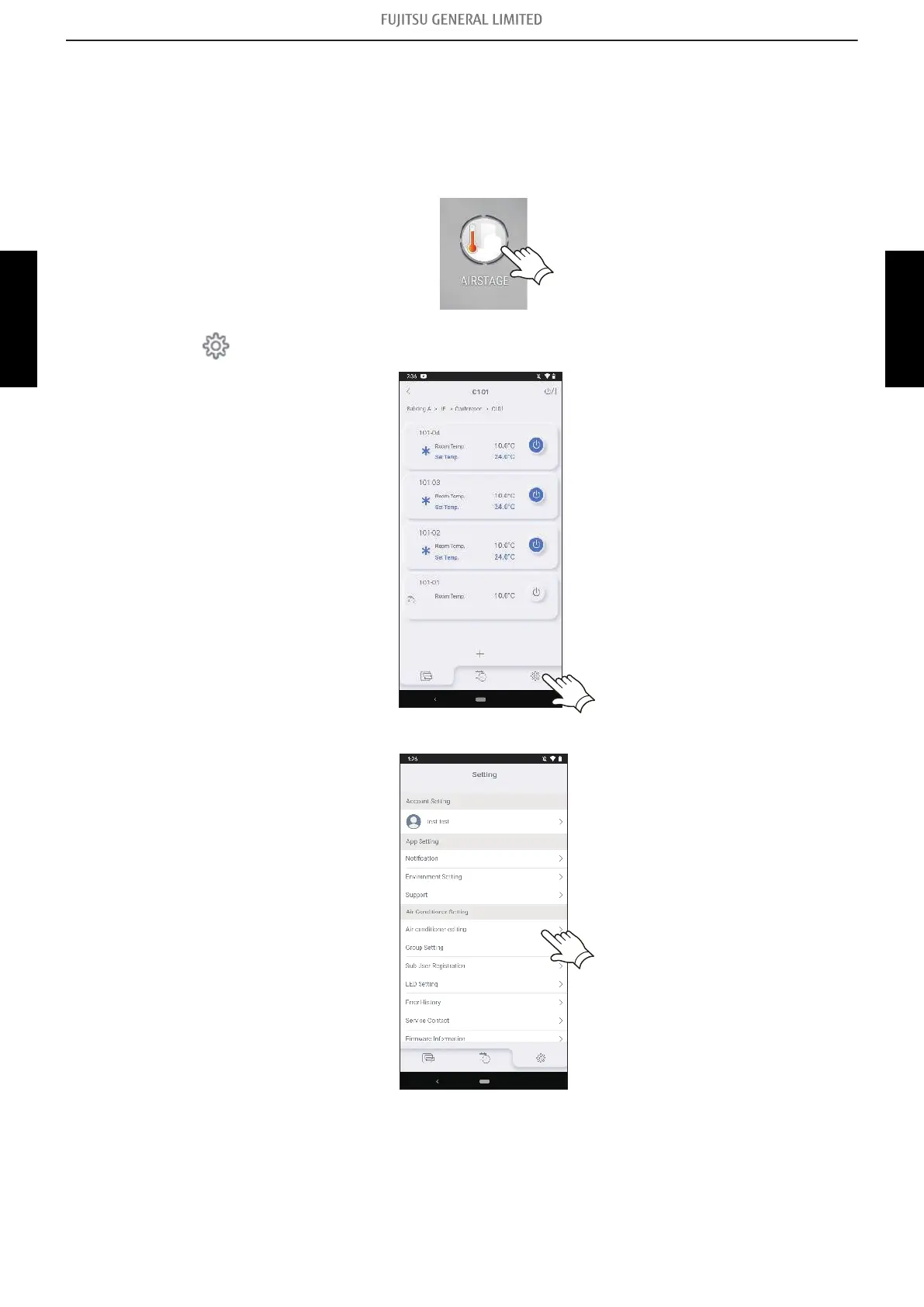

When the wireless LAN adapter is replaced, delete of all air conditioner is necessary on the mobile
app.
1.
Launch the mobile app.
2.
Tap the
icon to display the Setting screen.
3.
Tap the “Air conditioner editing”.
4-5. Mobile app setting method
- (03-87) -
4. Troubleshooting with error code (For wireless LAN adapter)
TROUBLESHOOTING
TROUBLESHOOTING
306
