Fujitsu ASY50-KM Service Manual

5-2. Wired remote control
On/Off timer Program timer Sleep timer Weekly timer
Temperature
Setback Timer
○ ○ ○ ○ ○
¢ On/Off timer
• Off timer: When the clock reaches the set timer, the air conditioner will be turned off.
Operation mode
Stop mode
Set time of timer
• On timer: When the clock reaches the set timer, the air conditioner will be turned on.
Operation mode
Stop mode
Set time of timer

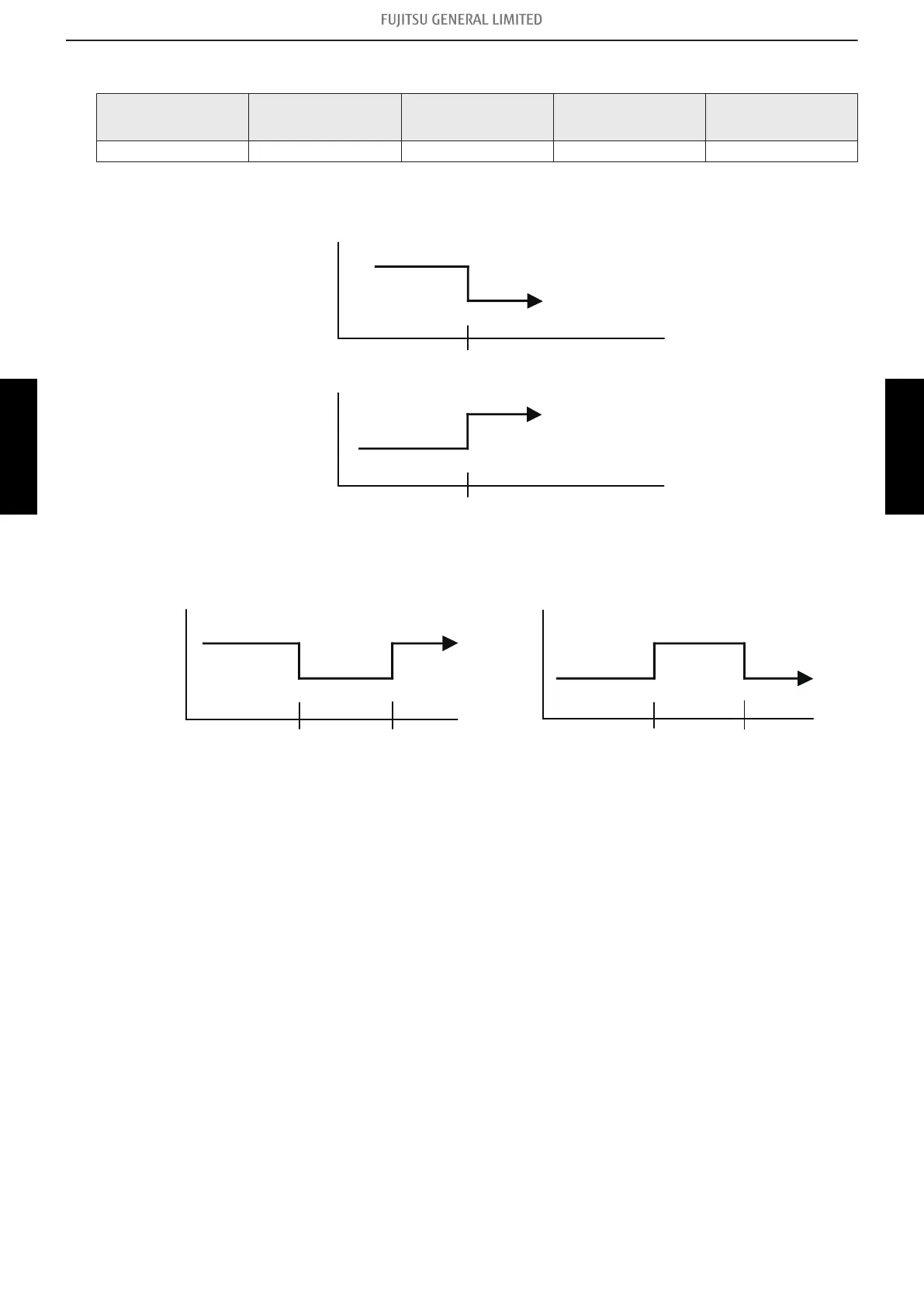

¢ Program timer
• The program timer allows the off timer and the on timer to be used in combination one time.
Operation mode
Stop mode
Stop mode
Stop mode
Operation mode
Operation mode
Set time Set time Set time Set time
• Operation will start from the timer setting (either off timer and on timer) whichever is closest to
the clock current timer setting. The order of operations is indicated by the allow in the remote
controller screen.
• Sleep timer operation cannot be combined with on timer operation.
5-2. Wired remote control - (04-63) - 5. Timer operation control
