Fujitsu ASY50-KM Design & Technical Manual

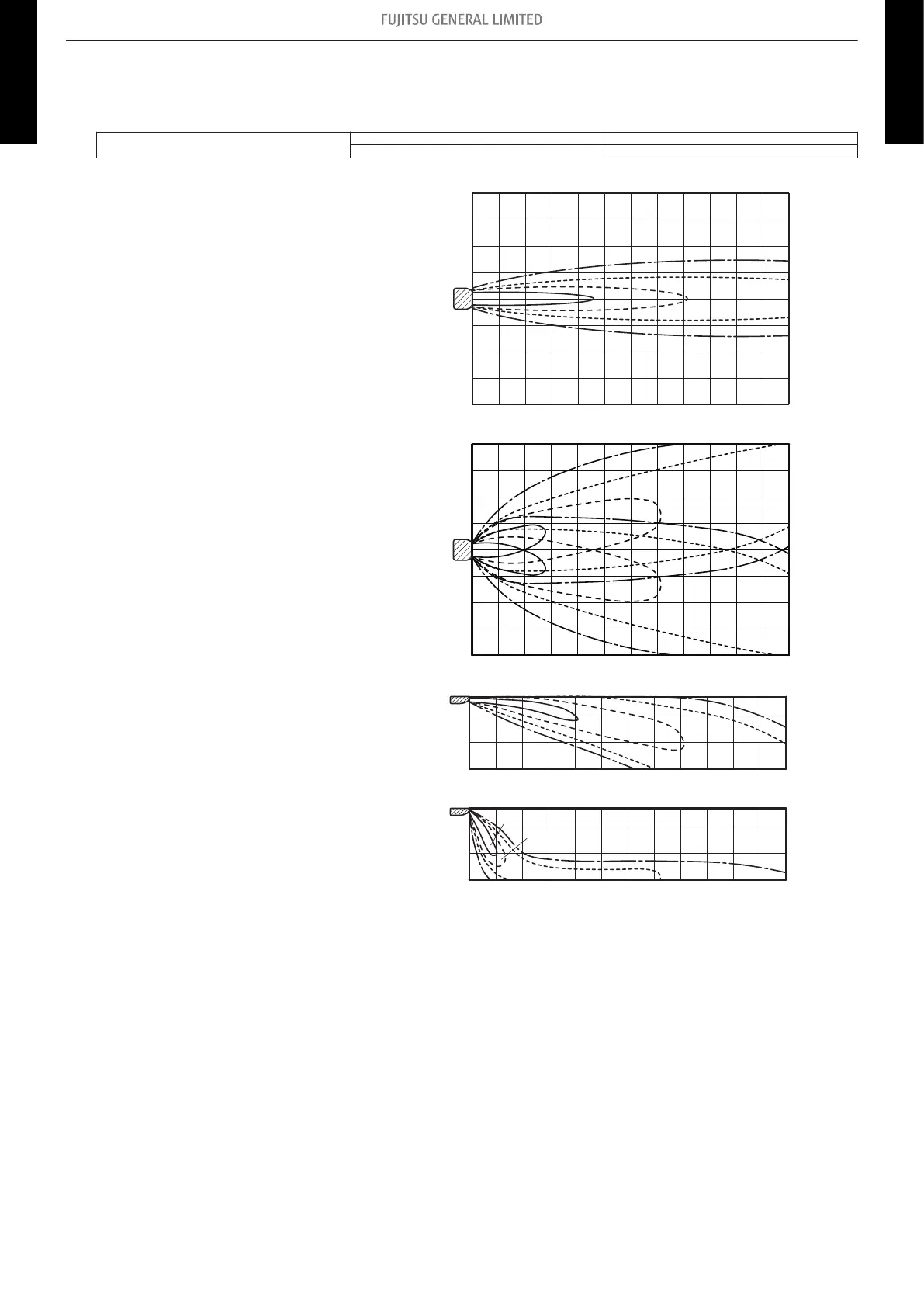

6-5. Ceiling type
¢
Model: ABYG18KRTA
Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Horizontal louver: Up
Vertical louver: Center
2.0
0.25
0.5
1.0
0
0 1 2 3 4 5 6 7 8 9 10 11 12
(m)
(m)
1
1
2
2
3
3
4
4
Unit: m/s
Top view
Horizontal louver: Up
Vertical louver: Left & Right
2.0
2.0
0.25
0.25
0.5
0.5
1.0
1.0
0
0 1 2 3 4 5 6 7 8 9 10 11 12
(m)
(m)
1
1
2
2
3
3
4
4
Unit: m/s
Side view
Horizontal louver: Up
Vertical louver: Center
(m)
0 1 2 3 4 5 6 7 8 9 10 11 12
(m)
0
1
2
2.7
2.0
1.0
0.5
0.25
Unit: m/s
Side view
Horizontal louver: Down
Vertical louver: Center
(m)
0 1 2 3 4 5 6 7 8 9 10 11 12
(m)
0
1
2
2.7
2.0
1.0
0.5
0.25
Unit: m/s
- 115 -
6-5. Ceiling type
6. Air velocity and temperature distributions
