Fujitsu ASY50-KM Design & Technical Manual

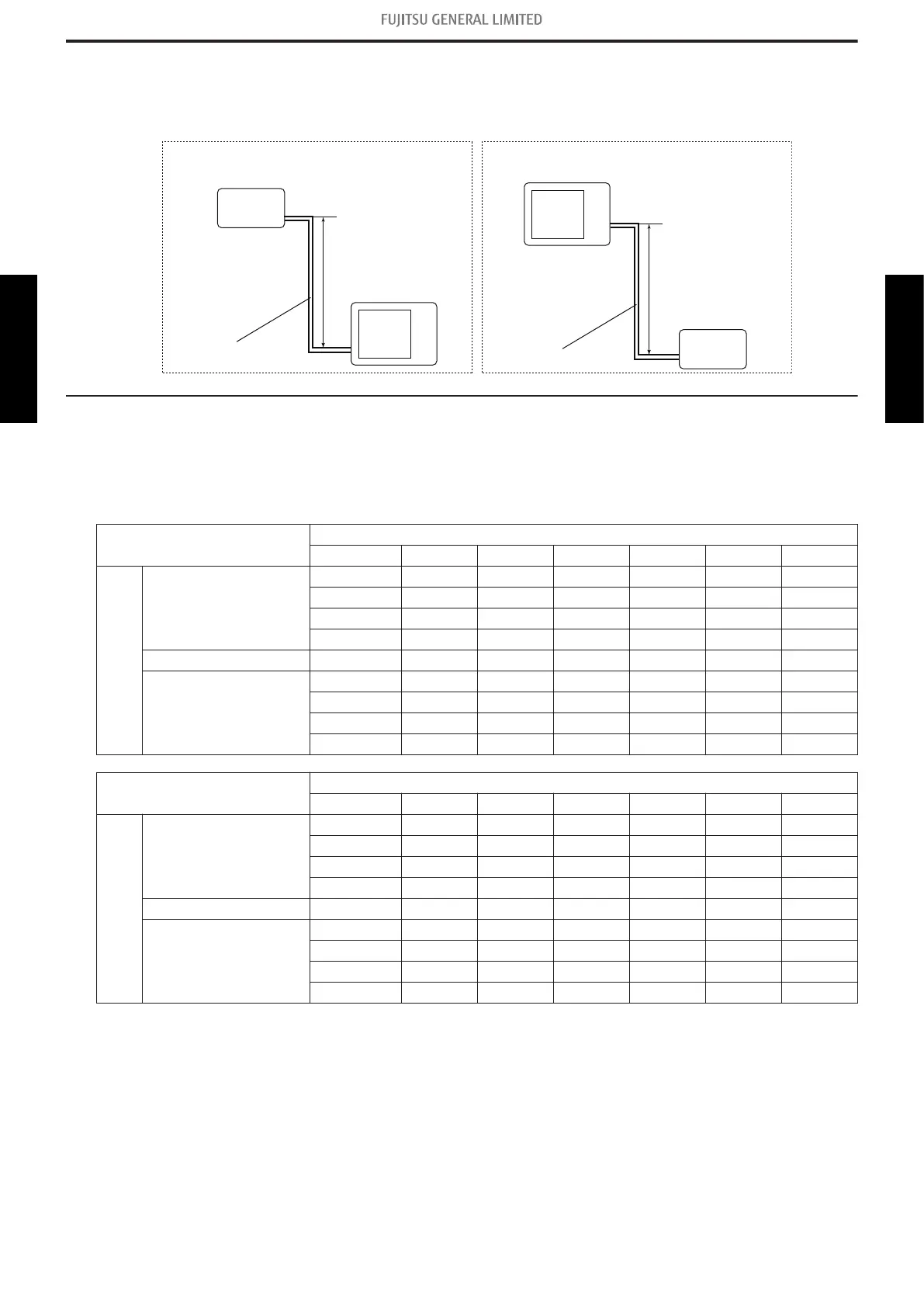

7. Capacity compensation rate for pipe length and height
difference
Height difference H
Indoor unit is higher than outdoor unit *
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
H H
7-1. Model: AOYG36KBTA5
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢ Indoor unit: 7,000 Btu/h
Cooling
Pipe length
m 2.5 5 10 15 20 25
Height difference H (m)
Indoor unit is higher
than outdoor unit *
1
15 — — — 0.955 0.941 0.927
10 — — 0.976 0.962 0.949 0.935
5 — 0.992 0.984 0.970 0.956 0.942
2.5 0.996 0.996 0.988 0.974 0.960 0.946
0 1.000 1.000 0.992 0.978 0.964 0.950
Indoor unit is lower
than outdoor unit *
2
-2.5 1.000 1.000 0.992 0.978 0.964 0.950
-5 — 1.000 0.992 0.978 0.964 0.950
-10 — — 0.992 0.978 0.964 0.950
-15 — — — 0.978 0.964 0.950
Heating
Pipe length
m 2.5 5 10 15 20 25
Height difference H (m)
Indoor unit is higher
than outdoor unit *
1
15 — — — 0.976 0.957 0.938
10 — — 0.991 0.976 0.957 0.938
5 — 1.000 0.991 0.976 0.957 0.938
2.5 1.000 1.000 0.991 0.976 0.957 0.938
0 1.000 1.000 0.991 0.976 0.957 0.938
Indoor unit is lower
than outdoor unit *
2
-2.5 0.998 0.997 0.989 0.974 0.955 0.936
-5 — 0.995 0.986 0.971 0.952 0.933
-10 — — 0.981 0.966 0.947 0.929
-15 — — — 0.961 0.943 0.924
- 532 -
7-1. Model: AOYG36KBTA5
7. Capacity compensation rate for pipe length and height difference
OUTDOOR UNIT AOYG36KBTA5 OUTDOOR UNIT AOYG36KBTA5
