Fujitsu B22W-6 LED User Manual

Getting s tarted

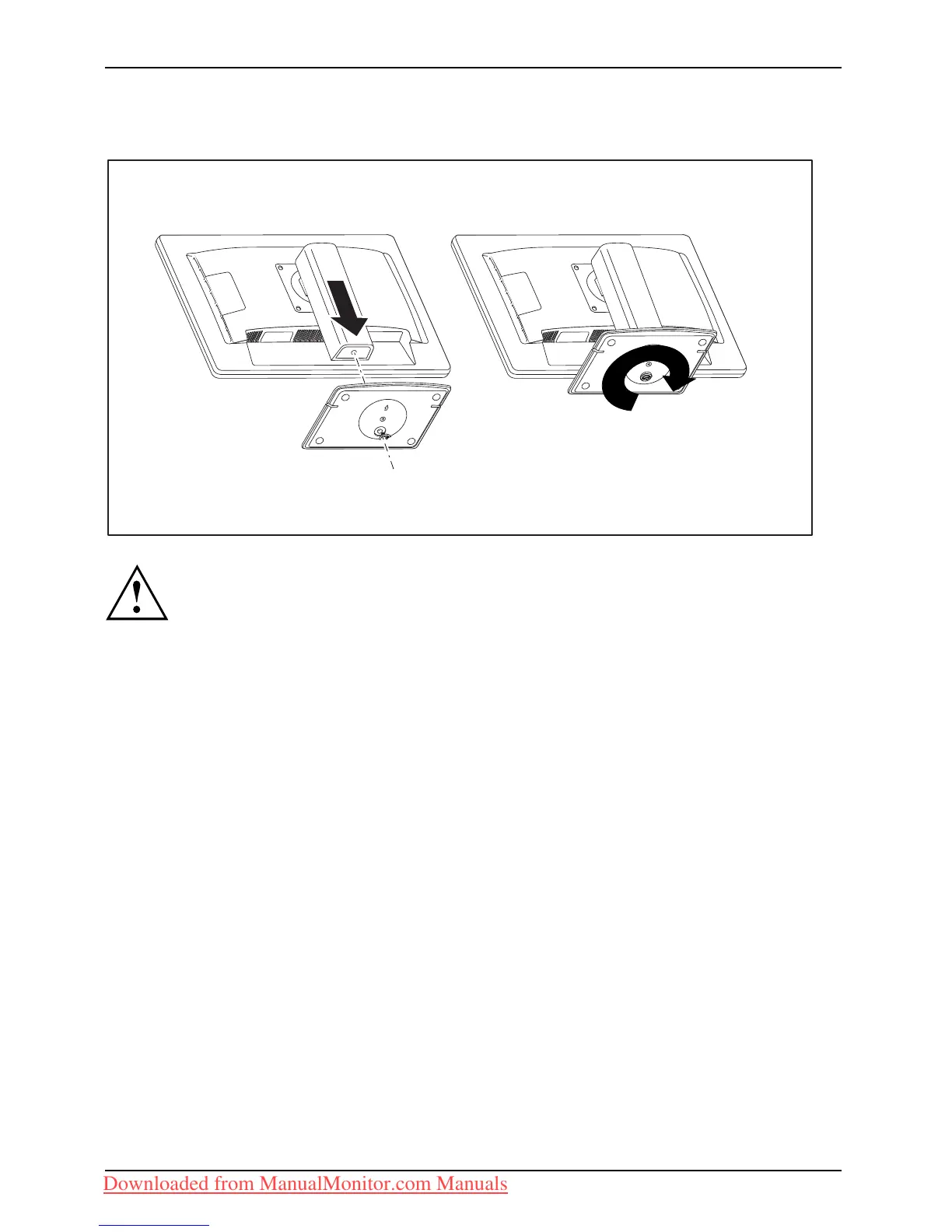

Mounting the monitor b ase
2
1
3
Do not remove the retaining splint before you have secured the base plate on
the monitor and have brought it into operating position.
► In sert the base plate on the foot (1).
► Guide the screw through the opening (2).
► Secure the base plate with the screw (3).
► Place the monitor in operating position.
Adjusting the height
The height of the monitor can be adjusted by approximately 110 mm.
► R emove the retaining splint on the r ear of the height adjustment.
► Gra sp the monitor with both hands at the left an d r ight ed ges of the
housing and move it up or down.
Adjusting the inclination
The in
clination of the monitor can be adjusted by - 5° (forwards) a nd +35°
(back
wards) from its vertical position.
► Hold
the monitor with both hands on the left and right sides of the casing
and m
ove it to the desired angle.
14 Fujitsu Technology Solutions
Downloaded from ManualMonitor.com Manuals

Fujitsu B22W-6 LED Specifications

General

3D	No
HD type	-
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Viewable size diagonal	559 mm
Viewable size, vertical	296 mm
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	474 mm
Digital vertical frequency	56 - 76 Hz
Digital horizontal frequency	30 - 82 kHz
Display brightness (typical)	250 cd/m²
Power requirements	AC 100V - 240V@50-60Hz, AC/DC
Mean time between failures (MTBF)	70000 h
HDCP	Yes
USB hub version	2.0
DVI-I ports quantity	0
USB Type-A downstream ports quantity	5
RMS rated power	2 W
Number of speakers	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	28 W
Power consumption (PowerSave)	0.3 W
Certification	CE, TÜV GS, GOST, FCC B, cUL, TCO Displays 5.0, ENERGY STAR 5.0
Product color	White
Pivot angle	0 - 90 °
Tilt angle range	-5 - 35 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	ARA, CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POL, POR, RUS, SWE, TUR
Package weight	8900 g

Weight and Dimensions

Depth (with stand)	180 mm
Height (with stand)	370 mm
Weight (with stand)	7100 g
Depth (without stand)	60 mm
Width (without stand)	508 mm
Height (without stand)	343 mm
Weight (without stand)	4200 g
