Mainboard D3128
English - 25

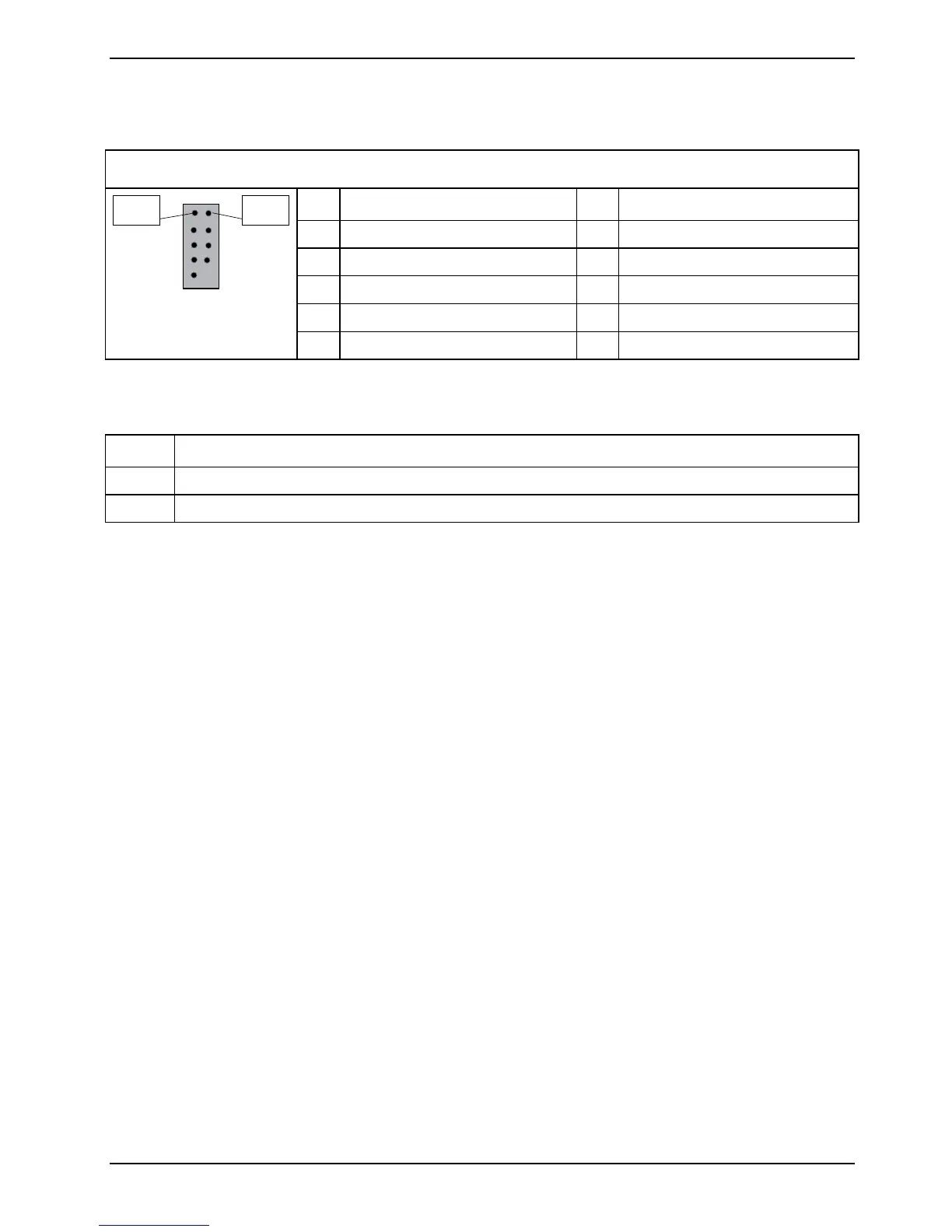

COM1 Ports
PIN Signal
PIN
Signal
1
DCD 1
2
DSR 1
3
SIN 1
4
RTS 1
5
SOUT 1
6
CTS 1
7
DTR 1
8
RI 1
Pin 1
Pin 2
9 GND
TPM jumper
PIN Signal
1 RST_PCI_TPM_L
2 TPM_RESET_L
Per default the TPM jumper is stuffed. Removing the jumper will disable the TPM.
Fujitsu Technology Solutions
63
68
70
Table of Contents
Deutsch
7
Inhalt
7
Table of Contents
7
External Connectors Rear
8
Übersicht über das Mainboard D312
8
Handbuchkonventionen
10
Serial
10
Wichtige Hinweise
11
Allgemeine Informationen IM Zusammenhang mit Boards
11
Hardware-Spezifikationen
13
Blockdiagramm
15
Systemsicherheitsfunktionen
16
Grundlegende Sicherheitsfunktionen
16
Trusted Platform Module (TPM)
16
Smartcase Dynamicusb
17
Auswahl der Korrekten Teile für das System
19
Betrachtungen zur CPU (Central Processor Unit)
19
Systemspeicherschnittstelle
19
BIOS POST-Codes (Port 80-Statusanzeigen)
20
Betrachtungen zur Stromversorgung
27
Installation des Boards
28
Intrusion-Anschluss (Intern)
28
Lüfteranschluss (Intern)
28
PC2009 PSU-Anschluss (PC2009)
28
Frontblendenanschluss (Intern)
29
Kommunikationsanschlüsse
29
Anschlüsse für Systemüberwachung und -Verwaltung
31
Konfigurations-Jumper Innerhalb der Frontblende
31
COM1 Ports
32
TPM-Jumper
32
Speicherinstallation
33
Vorgehen bei der Speicherinstallation
34
Installation von Prozessor und Kühlkörper
36
Prozessorinstallation
36
Montage des Kühlkörpers
38
Installation von Add-In-Karten
39
Anschließen von Externen Geräten
40
Externe Ports
40
Austauschen der Lithium-Batterie
41
BIOS Recovery
42
BIOS-Update
42
Wann sollte ein BIOS-Update Durchgeführt werden
42
Wie Funktioniert ein BIOS-Update
42
Glossar
43
English
45
Content
46
Overview Mainboard D3128
46
Notational Conventions
48
Important Notes
49
Information about Boards
49
Hardware Specifications
51
Block Diagram
53
System Security Features
54
Basic Security Features
54
Trusted Platform Module (TPM)
54
Smartcase Dynamicusb
55
Central Processor Unit (CPU) Considerations
56
Choose Proper Parts for Your System
56
System Memory Interface
56
BIOS POST-Codes (Port 80 Status Indicators)
57
Power Supply Considerations
64
Board Installation
65
Fan Connector (Internal)
65
Intrusion Connector (Internal)
65
PC2009 PSU Connector (PC2009)
65
Communication Connectors
66
Frontpanel Connector (Internal)
66
Configuration Jumper Inside Front Panel
68
System Monitoring and Management Connectors
68
COM1 Ports
69
TPM Jumper
69
Installing the Memory
70
Memory Installation Procedure
71
Installing the Processor and Heat Sink
73
Installing the Processor
73
Mounting Heat Sink
75
Installing Add-In Cards
76
Connecting External Devices
77
External Ports
77
Replacing Lithium Battery
78
BIOS Recovery
79
BIOS Update
79
When Should a BIOS Update be Carried out
79
How Does a BIOS Update Work
79
BIOS Update under Windows with Deskflash Utility
79
Glossary
80
