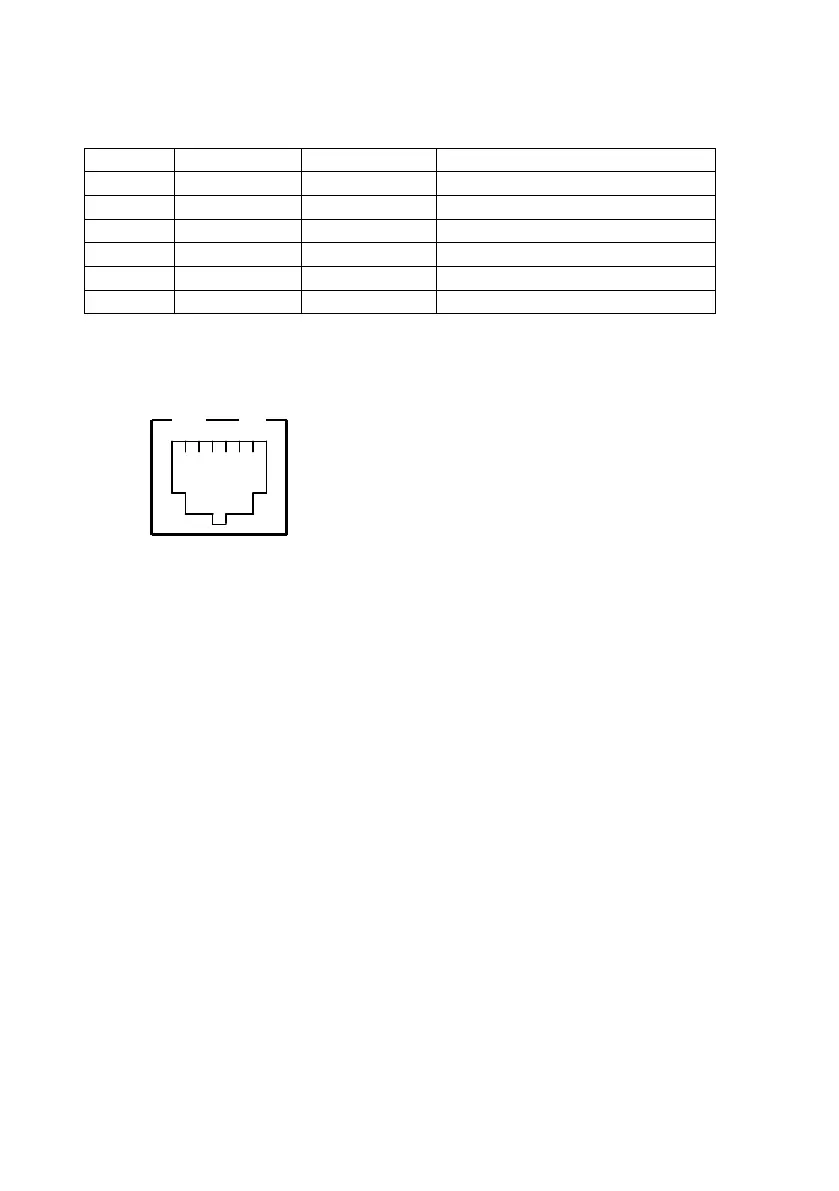

B-8.Drawer Kick Connector
Pin No.
Signal name
I/O direction
Signal line name
1
FG
Output
Drawer frame ground signal
2
*DRD1
Output
Drawer kick drive signal 1
3
DRSNS1
Input
Drawer sense signal 1
4
+24V
Output
Drive power
5
*DRD2
Output
Drawer kick drive signal 2
6
SG
Output
Drawer sense ground signal
Connecting side
1
6
