Fujitsu Lifebook S760 User Manual

96 - Ports de périphériques
Prise micro/entrée de ligne
La prise micro/entrée de ligne vous permet de connecter un microphone mono externe. Votre microphone
doit être muni d’une mini fiche de connexion mono de 3,5 mm (1/8 po) pour qu’il puisse être branché sur
la prise microphone de votre ordinateur portable. Pour connecter un microphone, exécutez ces opérations
simples :
1 Alignez le connecteur avec l’ouverture du port.
2 Poussez la fiche de connexion dans le port jusqu’à ce qu’elle s’enclenche.
Port vidéo externe
Le port vidéo externe vous permet de
connecter un moniteur externe ou un
projecteur ACL. Pour connecter un
périphérique vidéo externe, effectuez
ces opérations simples :
2 Poussez la fiche de connexion dans le
port jusqu’à ce qu’elle s’enclenche.
3 Serrez les deux vis de fixation situées
de chaque côté du connecteur.

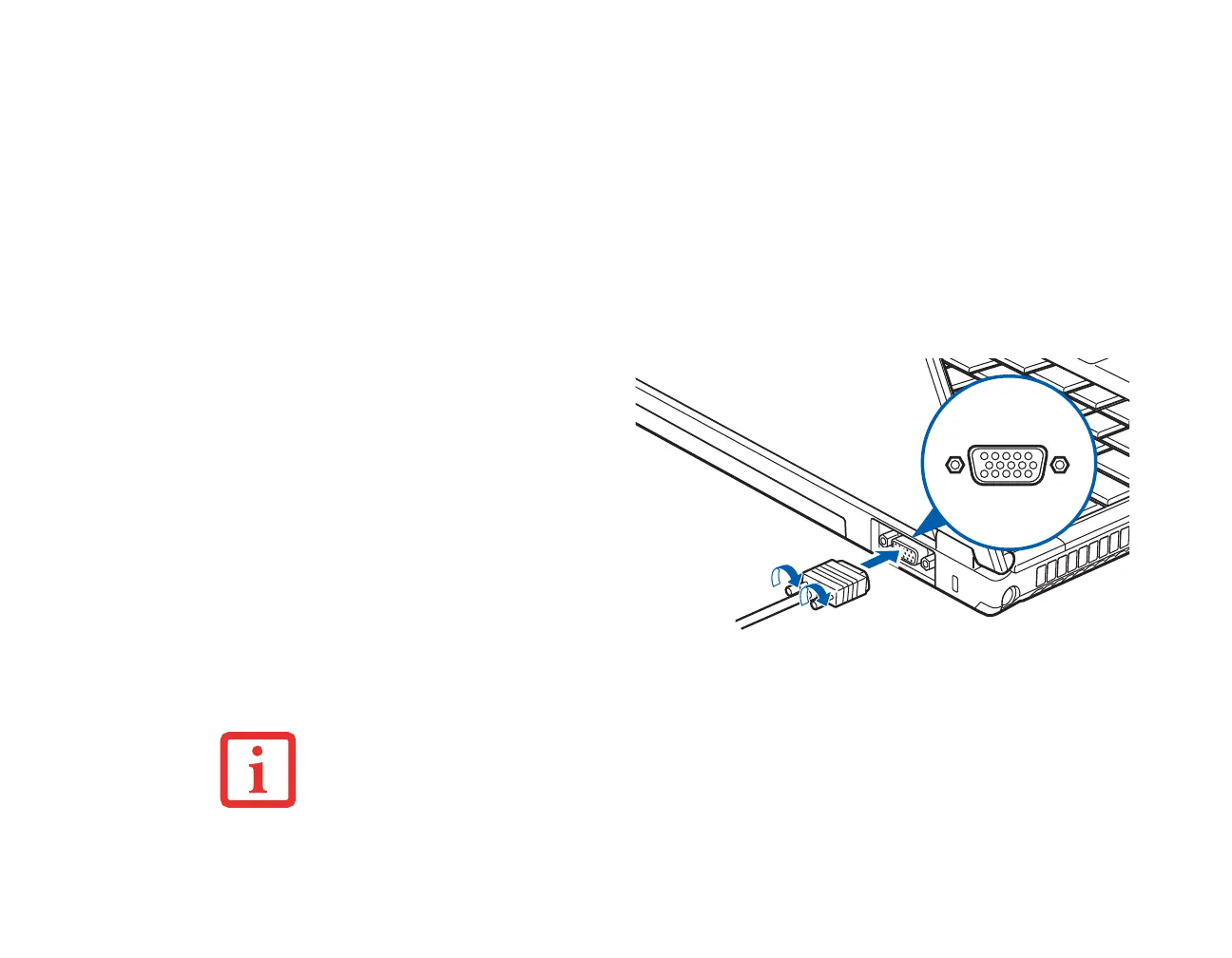

Figure 39. Branchement d’un périphérique vidéo externe
1 Alignez le connecteur avec l’ouverture
du port.
LORSQUE VOUS APPUYEZ SUR LES TOUCHES [FN] + [F10], VOUS POUVEZ CHANGER L’EMPLACEMENT
DE L’AFFICHAGE VIDÉO. CHAQUE FOIS QUE VOUS APPUYEZ SUR LA COMBINAISON DE TOUCHES, VOUS
PASSEREZ AU CHOIX SUIVANT, EN COMMENÇANT PAR L’ÉCRAN INTÉGRÉ SEULEMENT, PUIS AU
MONITEUR EXTERNE SEULEMENT, PUIS AUX DEUX, L’ÉCRAN INTÉGRÉ ET LE MONITEUR EXTERNE.

Fujitsu Lifebook S760 Specifications

General

Bus type	DMI
Stepping	C2
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-330M
System bus rate	2.5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-300 Mobile Series
Processor socket	BGA 1288
Processor threads	4
Processor codename	Arrandale
Processing Die size	81 mm²
Processor frequency	2.13 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16
Thermal Design Power (TDP)	35 W
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
Motherboard chipset	Intel® QM57 Express
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	320 GB
Display surface	Matt
Display diagonal	13.3 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Internal memory	2 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 2 GB
Audio system	HD Audio
Front camera resolution (numeric)	1.3 MP
Type	PC
Dimensions (WxDxH)	314 x 222 x 30.5 mm
Wireless technology	802.11 a/b/g/n
Compliance industry standards	WMI, PXE, BootP
Bluetooth version	2.1+EDR
Networking features	Gigabit Ethernet, WLAN
Mobile network generation	3G
Trial software	Symantec Norton Internet Security
Bundled software	Adobe Acrobat Reader Application Panel Display Manager ShockSensor Utility Power Saving Utility Wireless Selector Utility EasyGuide Nero Essentials S Norton Internet Security
Operating system installed	Windows 7 Professional
Battery capacity	5800 mAh
Battery life (max)	8 h
Number of battery cells	6
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
Cable lock slot type	Kensington
Password protection type	BIOS
External video modes refresh rate (max)	60 Hz
Maximum resolution	1920 x 1200 pixels
Discrete graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz
Pointing device	Touchpad
Keyboard key pitch	19 mm
Keyboard keystroke	2.7 mm
Keyboard number of keys	85
Certification	RoHS, WEEE, HCT, HCL entry, WHQL, ENERGY STAR 5.0, ISO 9241-307, EPEAT Silver
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
AC adapter power	80 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.22 A
AC adapter output voltage	19 V
Battery life with optional 2nd battery	12 h
Processor code	SLBNF
Processor ARK ID	47663
Processor package size	rPGA 37.5x 37.5, BGA 34x28 mm
Graphics & IMC lithography	45 nm
Supported instruction sets	SSE4.1, SSE4.2

Weight and Dimensions

Weight	1600 g

Summary

Getting to Know Your LifeBook

Locating the Controls and Connectors

Identifies and describes the various ports and controls on the notebook.

Keyboard

Touchpad Pointing Device/Scroll Wheel

LifeBook Security/Application Panel

Explains the security features and application launching capabilities.

Getting Started with Your LifeBook

Power Sources

Starting Your LifeBook Notebook

Power On

Instructions on how to turn on the notebook using the power button.

BIOS Setup Utility

Guide to entering and using the BIOS setup utility for system configuration.

Power Management

Troubleshooting Your LifeBook

Identifying the Problem

General procedure before complex troubleshooting.

Specific Problems

Lists of common issues like audio, drive, power, keyboard, etc.

Power On Self Test Messages

Explains error and status messages from POST.

Restoring Your Pre-installed Software

Re-installing Individual Drivers and Applications

Restoring the Operating System for Windows

Guide to restoring the factory OS using the Recovery and Utility disc.

System Specifications

Hardware Specifications

Details on microprocessor, memory, video, audio, storage, and ports.

Device Ports

Lists and describes all available ports on the notebook and port replicator.

WLAN User’s Guide

Configuring the Wireless LAN

Provides steps to configure wireless LAN connectivity in different Windows versions.

Troubleshooting the WLAN

Lists common WLAN issues and their solutions.
