5.3.1 Connecting the monitor
Ê Plug the data cable for the monitor into the video connector on the server
(item 4 in figure 4 on page 52).
V CAUTION
The height of VGA cable connectors can vary. Please make sure that the
VGA connector cables do not interfere with the server below.
Ê Connect the insulated connector on the monitor power cable to a grounded
outlet in the rack's socket strip (see also the technical manual for the rack).
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the "PRIMERGY RX2530 M1 Server
Upgrade and Maintenance Manual".
The standard connectors are marked with symbols, and some are color-coded:

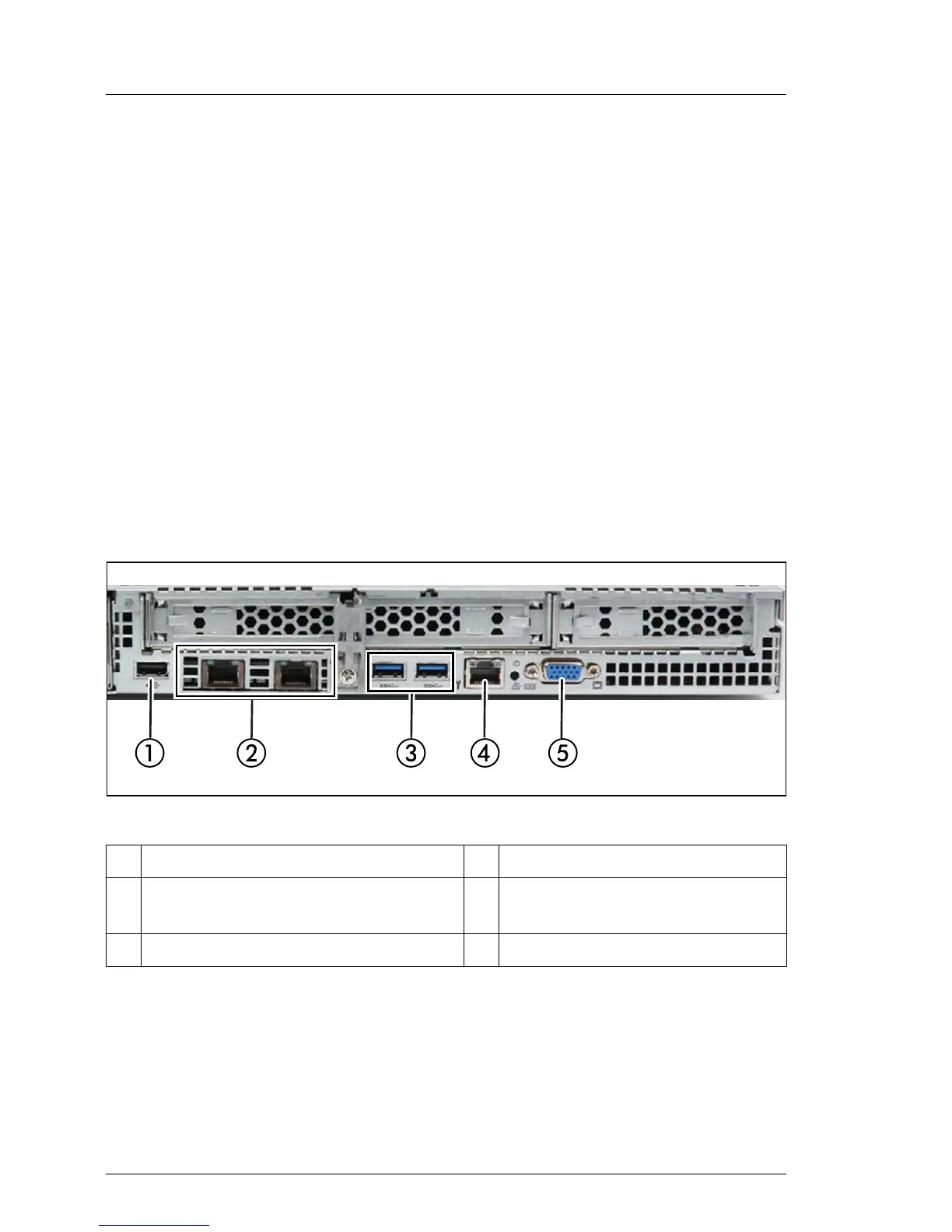

Figure 4: Connection panel on the rear
1 1 x USB 2.0 connector 4 Management LAN connector
2 DynamicLoM (optional, different
variants)*.
5 Video connector (blue)
3 2 x USB 3.0 connectors 6
*
The LAN connectors on the dynamic LoM modules are numbered in
ascending order from right to left beginning with “0”.
The rightmost
connector (LAN 0) is the shared LAN connector respectively.
