6.1.1.3 Indicators on the drives
Hard disk drive indicators

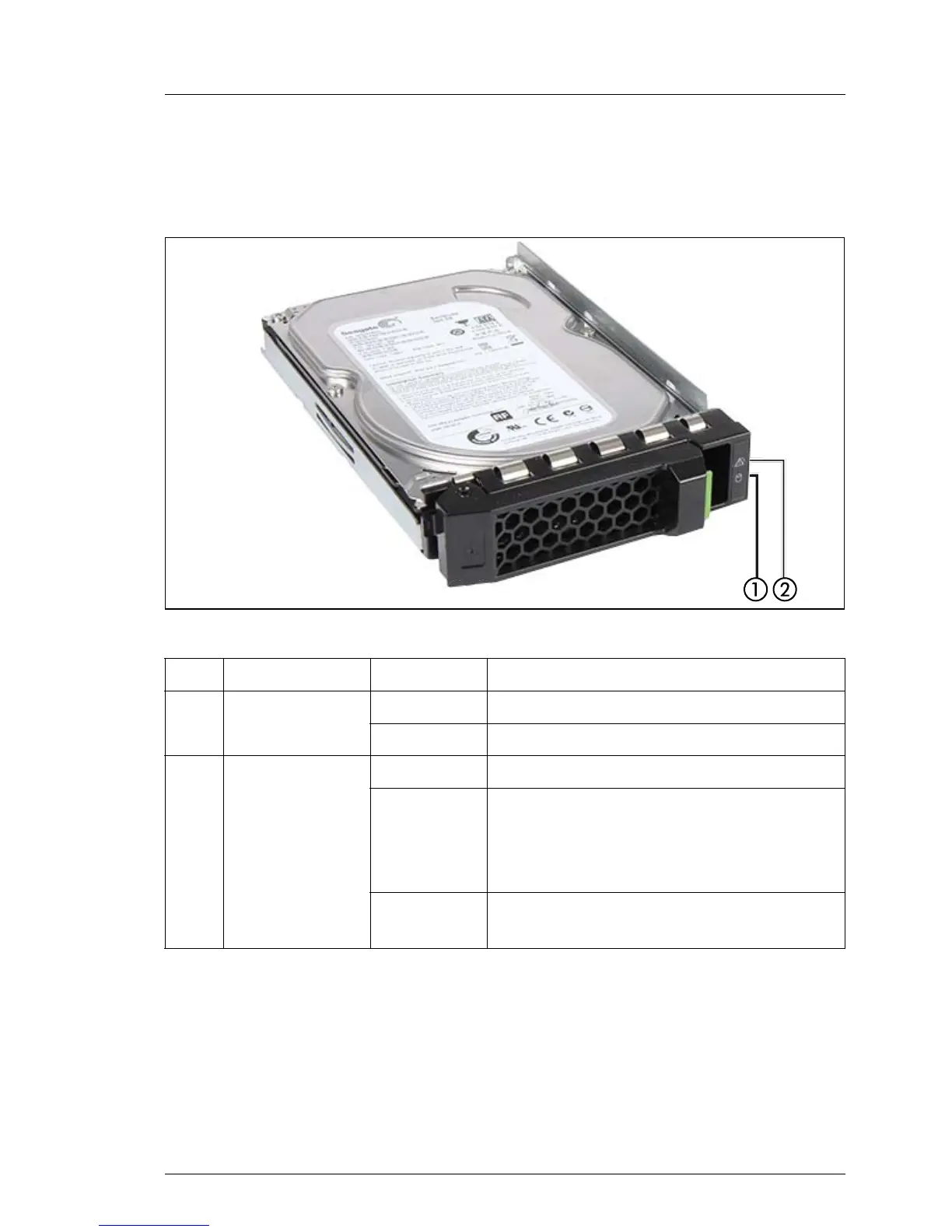

Figure 8: Indicators on the 3.5-inch HDD module
Pos. Indicator Status Description
1 HDD BUSY
off HDD inactive (drive inactive)
green on HDD in active phase
2 HDD FAULT
off no HDD error
orange on
HDD faulty or rebuild stopped (drive
defective/needs replacing, a rebuild
process was stopped or the HDD
module is not correctly inserted)
orange slow
flashing
HDD rebuild (the data is being restored
after changing a drive)
