5.4.1 Using the cable clamps (hot-plug PSU)
You can secure the power cord using a cable clamp to ensure that the
insulated connector cannot be disconnected from the server accidentally. The
cable clamp is included in the accessories pack that is delivered together with
the server.

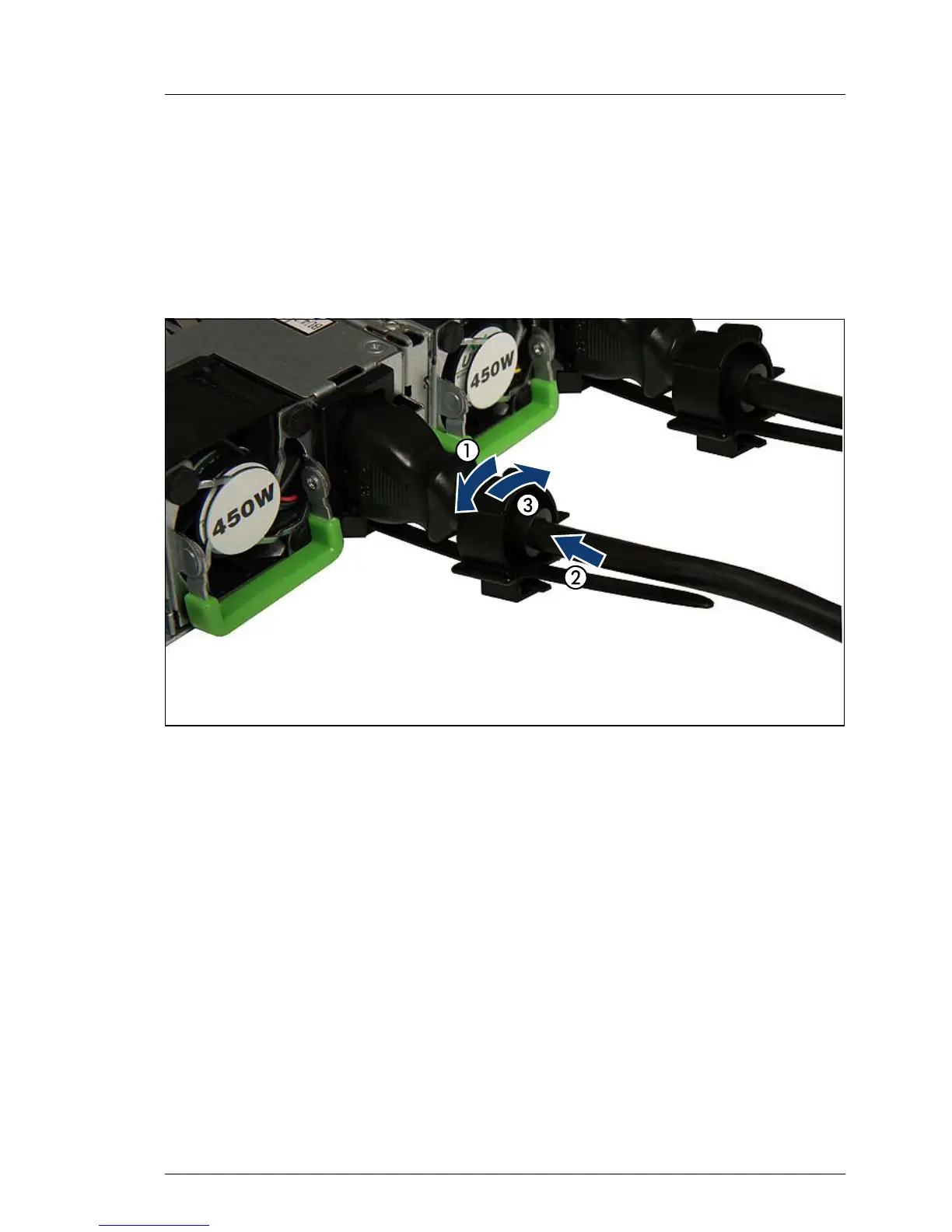

Figure 5: Using cable clamps
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
