56 Operating Manual TX2540 M1
Hardware installation
5.4 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the "FUJITSU Server PRIMERGY
TX2540 M1 Server Upgrade and Maintenance Manual".

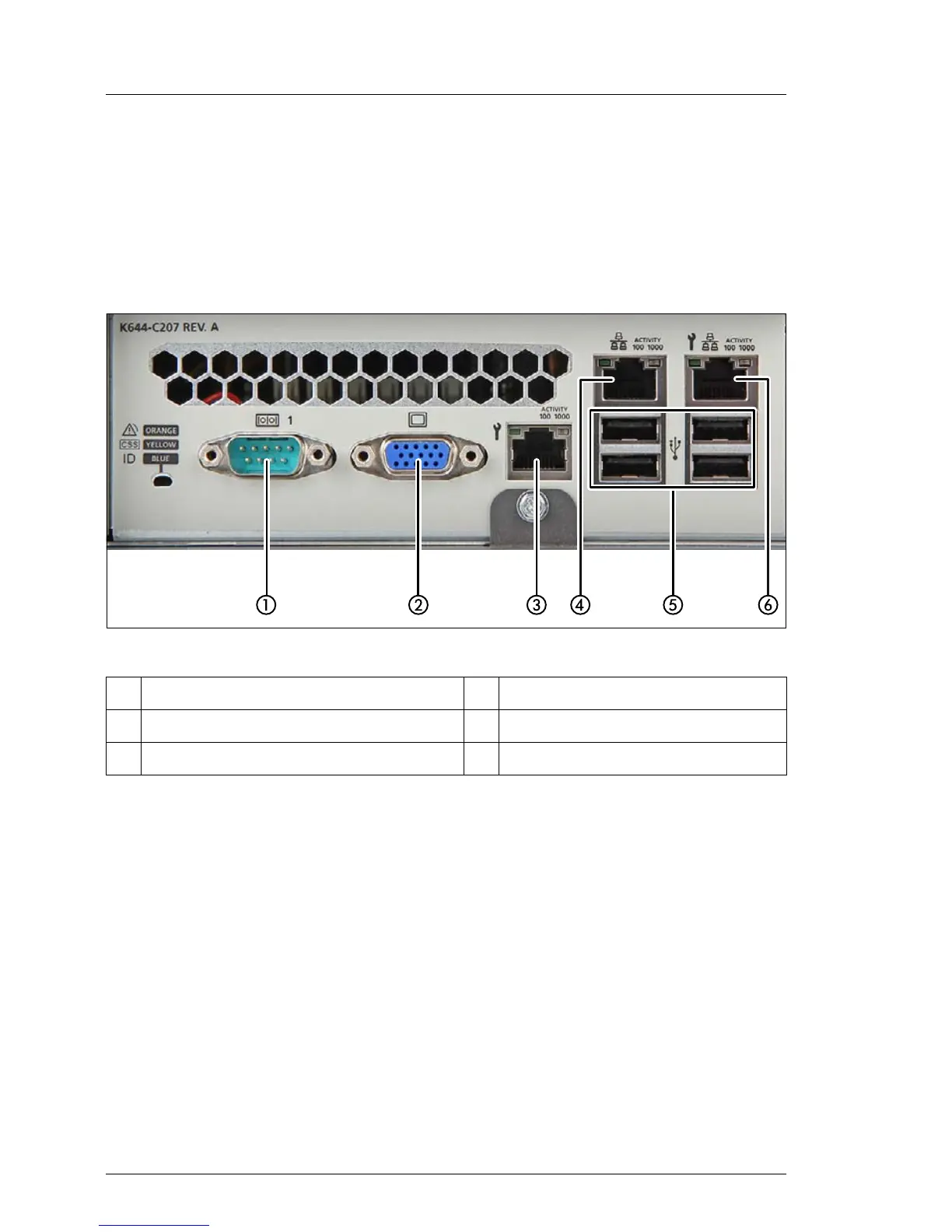

Figure 2: Connection panel on the rear
The corresponding indicators are explained in section "Rear of server" on
page 73.
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
Ê Connect the devices.
1 Serial connector COM1* (turquoise) 4 Standard LAN connector
2 Video connector (blue) 5 4 USB connectors (black)
3 Management LAN connector 6 Shared LAN connector
* The serial interface COM1 can be used as the standard interface or for
communication with iRMC S4.

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
