1. MOUNTING
1.1 Installation of Display Unit
The display unit can be installed on a tabletop, on the overhead or flush mounted in a
console or panel.

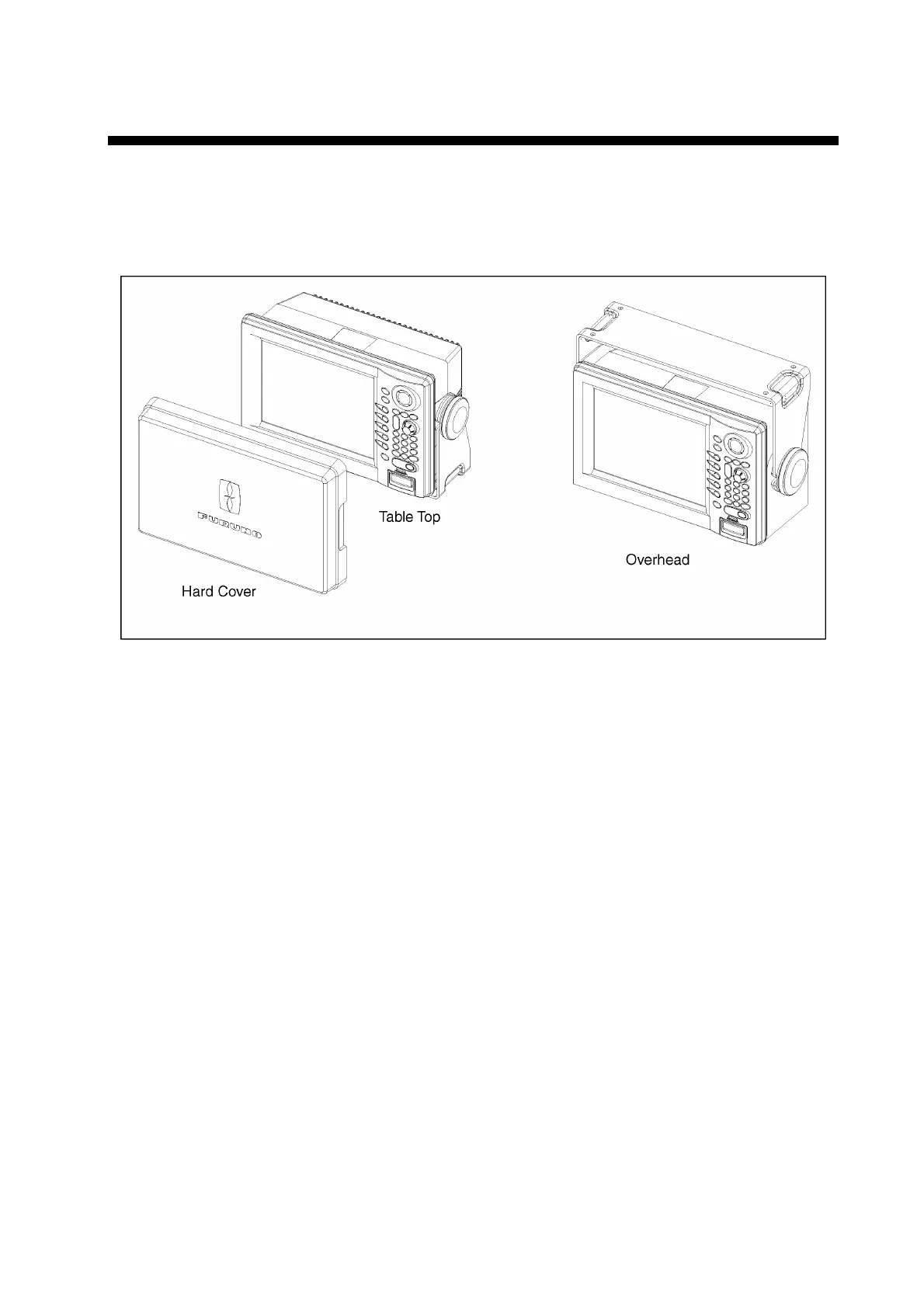

Tabletop, overhead mounting method
When selecting a mounting location for the display unit keep the following in mind:
•
Keep the display unit out of direct sunlight.
•
The temperature and humidity should be moderate and stable.
•
Locate the unit away from exhaust pipes and vents.
•
The mounting location should be well ventilated.
•
Mount the unit where shock and vibration are minimal.
•
Keep the unit away electromagnetic field generating equipment such as motor, generator.
•
For maintenance and checking purposes, leave sufficient space at the sides and rear of
the unit and leave slack in cables.
•
A magnetic compass will be affected if the display unit is placed too close the magnetic
compass. Observe the following compass safe distances to prevent disturbance to the
magnetic compass.
Standard compass: 0.60 m
Steering compass: 0.40 m
