4.2 Connection of Video equipment /
External Monitor/Remote Display
The above units can be connected to the MODEL1823C/1833C/1933C/1943C/1953C and
GD-1900C by using the hole at the rear of the display unit. Remove the cover to use this
hole. After connecting, cover the hole with soft putty to seal.

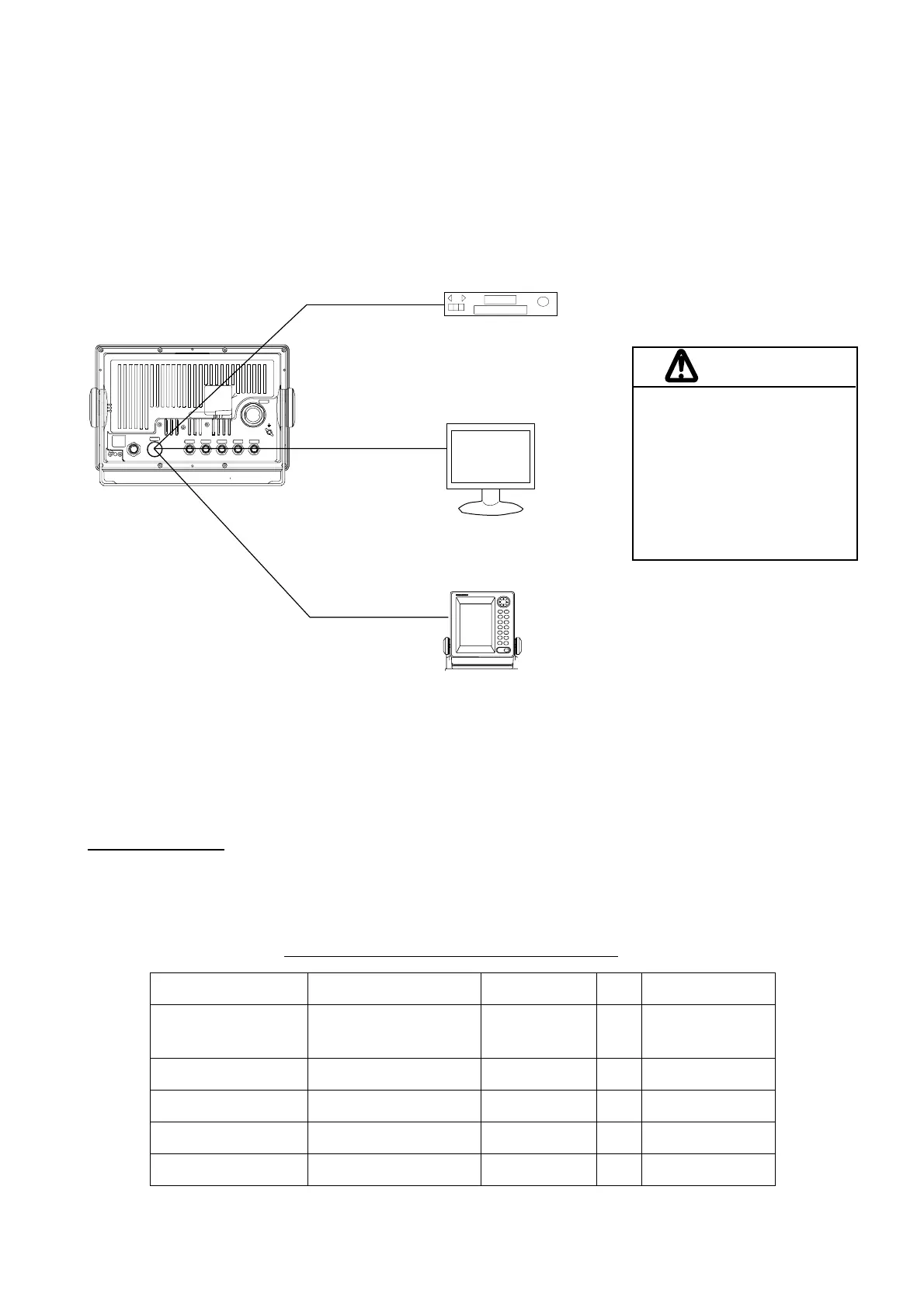

12:00
Video recorder, CCD camera etc.
VGA monitor
Remote display (ex. FMD-811)
CAUTION
Even though the display
unit meets waterproof
standard IPX-5,
this modification can
affect waterproofness.
Watertight integrity
cannot be guaranteed.
Connection of Video equipment/External monitor/remote display
4.2.1 Connecting video equipment
The display unit can show the picture from the CCD camera, video recorder etc. which
outputs composite signal in NTSC/PAL format, by using the optional NTSC/PAL interface kit.
Necessary parts
Name: NTSC/PAL Interface kit
Type: OP03-175
Code no.: 008-523-070
Table 4-2 NTSC/PAL Interface kit contents
Name Type Code No. Qty Remarks
PIP board 19P1004 008-521-890 1
NTSC/PAL
interface Board
Pan head screw M3x6 C2700W 000-881-403 4
Connector assy RCA-TMP-L230 000-144-615 1
Cable tie SG-130 000-809-171 3 w/foot for fixing
Rubber grommet MG-4 000-871-378 1
To Next Page
